How to Use arduino nano: Examples, Pinouts, and Specs

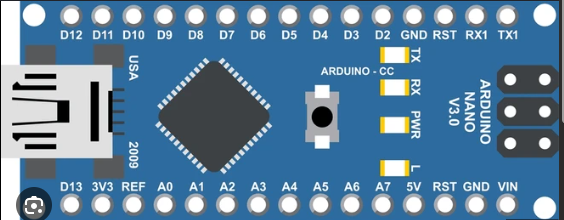

Image of arduino nano
Cirkit Designer LogoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of electronic projects, offering a small form factor without compromising functionality. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it a versatile choice for both beginners and experienced developers.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
Image of gps1: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps1: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable electronics
  • Educational tools for learning microcontroller programming

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm
Weight ~7 g

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is the pinout description:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V recommended).
2 GND Ground pins (multiple GND pins available).
3 5V Regulated 5V output from the onboard voltage regulator.
4 3.3V Regulated 3.3V output (limited to 50 mA).
5 AREF Reference voltage for analog inputs.
6 RESET Resets the microcontroller when pulled LOW.

Digital I/O Pins

Pin Name Description
D0-D13 Digital General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Input Pins

Pin Name Description
A0-A7 Analog Analog input pins capable of reading voltages between 0 and 5V.

Communication Pins

Pin Name Description
D0, D1 RX, TX UART communication pins for serial communication.
D10-D13 SPI SPI communication pins (SS, MOSI, MISO, SCK).
A4, A5 I2C I2C communication pins (SDA, SCL).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V recommended) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the Tools menu.
    • Connect the Nano to your computer and select the appropriate COM port.
    • Write your code in the Arduino IDE and upload it to the board.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, relays, or other digital devices.
    • Use the analog pins to read sensor data (e.g., temperature, light, or potentiometers).
    • For communication, use the UART (D0, D1), SPI (D10-D13), or I2C (A4, A5) pins.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating of 40 mA per I/O pin to prevent damage.
  • Use pull-up or pull-down resistors for stable digital input readings.
  • Ensure proper grounding when connecting external components.
  • Use a decoupling capacitor near the power pins for noise reduction in sensitive circuits.

Example Code for Arduino Nano

Below is an example code to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// The LED will turn ON for 1 second and OFF for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Arduino Nano is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB driver for the Nano (e.g., CH340 driver for clones).
    • Check the COM port settings in the Arduino IDE.
  2. Code upload fails with an error:

    • Verify that the correct board type and processor are selected in the Arduino IDE.
    • Press the RESET button on the Nano just before uploading the code.
    • Ensure no other application is using the COM port.
  3. The board overheats:

    • Check for short circuits in your circuit connections.
    • Ensure the input voltage does not exceed the recommended range.
  4. Analog readings are unstable:

    • Use a decoupling capacitor between the analog input pin and GND.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can the Arduino Nano run on 3.3V?
A: Yes, the Nano can operate at 3.3V, but some peripherals may not function correctly due to voltage limitations.

Q: How do I reset the Arduino Nano?
A: Press the RESET button on the board or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266) to the Nano via UART or SPI/I2C.


This concludes the documentation for the Arduino Nano (Official Part Number: A000005). For further details, refer to the official Arduino website.
