How to Use Relay Omron MK2P-N: Examples, Pinouts, and Specs

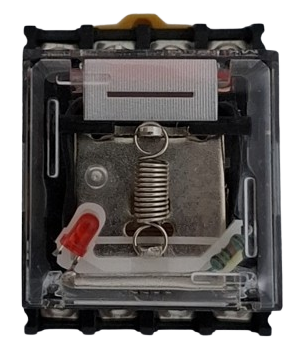

Image of Relay Omron MK2P-N
Cirkit Designer LogoDesign with Relay Omron MK2P-N in Cirkit Designer

Introduction

The Omron MK2P-N is a general-purpose electromagnetic relay with a compact design, capable of switching high currents and voltages. It features a double pole double throw (DPDT) configuration, making it versatile for a wide range of applications. This relay is commonly used in automation, industrial control systems, and power management circuits. Its robust design ensures reliable operation in demanding environments.

Explore Projects Built with Relay Omron MK2P-N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Smart DC Motor Control System with Capacitive Sensors and Relays
Image of Copy of conveyor: A project utilizing Relay Omron MK2P-N in a practical application
This circuit controls two DC motors using a combination of relays, a toggle switch, and capacitive sensors. The XL4015 DC-DC buck converter provides the necessary power, while the capacitive sensors and toggle switch manage the activation of the relays to control the motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart DC Motor Control System with Relay and Capacitive Sensors
Image of conveyor: A project utilizing Relay Omron MK2P-N in a practical application
This circuit controls two DC motors using a combination of relays, a toggle switch, and capacitive sensors. The XL4015 DC Buck Step-down module provides regulated power, while the capacitive sensors and toggle switch are used to control the relays, which in turn manage the operation of the motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Power Monitoring and Control System with OLED Display
Image of Sistem monitoring terminal listrik rumah tangga: A project utilizing Relay Omron MK2P-N in a practical application
This circuit is designed to monitor and control a 120V AC outlet using an ESP32 microcontroller. It includes a PZEM004t module for measuring voltage, current, and power, and a 12V relay to switch the outlet on and off. An OLED display is used to show real-time data, and the HLK-PM12 module provides the necessary 5V and 3.3V power to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
WeMos D1 R2 Controlled Relay Switching Circuit for AC Bulb and USB Charger
Image of Hand Gesture Light: A project utilizing Relay Omron MK2P-N in a practical application
This circuit uses a WeMos D1 R2 microcontroller to control a 5V 2-relay module, which in turn controls the power to an AC bulb and a cellphone charger. The microcontroller also interfaces with a line tracking sensor, which likely provides input to control the relay states. The AC bulb and cellphone charger are powered by an AC wire connection, with the relay acting as a switch for the bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Relay Omron MK2P-N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of conveyor: A project utilizing Relay Omron MK2P-N in a practical application
Smart DC Motor Control System with Capacitive Sensors and Relays
This circuit controls two DC motors using a combination of relays, a toggle switch, and capacitive sensors. The XL4015 DC-DC buck converter provides the necessary power, while the capacitive sensors and toggle switch manage the activation of the relays to control the motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Relay Omron MK2P-N in a practical application
Smart DC Motor Control System with Relay and Capacitive Sensors
This circuit controls two DC motors using a combination of relays, a toggle switch, and capacitive sensors. The XL4015 DC Buck Step-down module provides regulated power, while the capacitive sensors and toggle switch are used to control the relays, which in turn manage the operation of the motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Sistem monitoring terminal listrik rumah tangga: A project utilizing Relay Omron MK2P-N in a practical application
ESP32-Based Smart Power Monitoring and Control System with OLED Display
This circuit is designed to monitor and control a 120V AC outlet using an ESP32 microcontroller. It includes a PZEM004t module for measuring voltage, current, and power, and a 12V relay to switch the outlet on and off. An OLED display is used to show real-time data, and the HLK-PM12 module provides the necessary 5V and 3.3V power to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Hand Gesture Light: A project utilizing Relay Omron MK2P-N in a practical application
WeMos D1 R2 Controlled Relay Switching Circuit for AC Bulb and USB Charger
This circuit uses a WeMos D1 R2 microcontroller to control a 5V 2-relay module, which in turn controls the power to an AC bulb and a cellphone charger. The microcontroller also interfaces with a line tracking sensor, which likely provides input to control the relay states. The AC bulb and cellphone charger are powered by an AC wire connection, with the relay acting as a switch for the bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Industrial automation and control systems
  • Power switching in electrical circuits
  • Motor control and protection
  • Signal isolation and amplification
  • Home appliances and HVAC systems

Technical Specifications

Key Technical Details

Parameter Value
Model Number MK2P-N
Contact Configuration DPDT (Double Pole Double Throw)
Coil Voltage Range 6V DC to 240V AC (varies by model)
Contact Rating 10A at 250V AC / 10A at 30V DC
Coil Power Consumption Approximately 1.2W
Insulation Resistance 100 MΩ minimum at 500V DC
Dielectric Strength 2000V AC for 1 minute
Operating Temperature -10°C to 40°C
Mechanical Life 10,000,000 operations (minimum)
Electrical Life 100,000 operations (minimum)

Pin Configuration and Descriptions

The Omron MK2P-N relay has 8 pins arranged in a standard base configuration. Below is the pinout description:

Pin Number Description
1 Coil Terminal 1
2 Coil Terminal 2
3 Common Terminal for Pole 1 (COM1)
4 Normally Open Contact for Pole 1 (NO1)
5 Normally Closed Contact for Pole 1 (NC1)
6 Common Terminal for Pole 2 (COM2)
7 Normally Open Contact for Pole 2 (NO2)
8 Normally Closed Contact for Pole 2 (NC2)

Usage Instructions

How to Use the Relay in a Circuit

  1. Power the Coil: Connect the relay's coil terminals (pins 1 and 2) to a power source that matches the relay's rated coil voltage. Ensure the power source can supply sufficient current to energize the coil.
  2. Connect the Load:
    • For Pole 1: Connect the load to the common terminal (pin 3) and either the normally open (pin 4) or normally closed (pin 5) contact, depending on the desired operation.
    • For Pole 2: Similarly, connect the load to the common terminal (pin 6) and either the normally open (pin 7) or normally closed (pin 8) contact.
  3. Control the Relay: When the coil is energized, the relay switches from the normally closed (NC) contact to the normally open (NO) contact, allowing current to flow through the NO contact.

Important Considerations

  • Voltage and Current Ratings: Ensure the load does not exceed the relay's contact rating (10A at 250V AC or 30V DC).
  • Back-EMF Protection: When using the relay with a DC coil, add a flyback diode across the coil terminals to protect the driving circuit from voltage spikes.
  • Mounting: Use a compatible socket or PCB mount for secure installation.
  • Isolation: Maintain proper isolation between the coil and contact circuits to prevent electrical interference.

Example: Using the Relay with an Arduino UNO

Below is an example of how to control the Omron MK2P-N relay using an Arduino UNO:

// Example: Controlling Omron MK2P-N Relay with Arduino UNO
// Pin 7 of Arduino is used to control the relay

const int relayPin = 7; // Define the pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn relay on
  delay(1000); // Keep relay on for 1 second
  digitalWrite(relayPin, LOW); // Turn relay off
  delay(1000); // Keep relay off for 1 second
}

Note: Use a transistor or relay driver module to interface the Arduino with the relay, as the Arduino's GPIO pins cannot directly supply the current required to energize the relay coil.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Switching:

    • Cause: Insufficient coil voltage or current.
    • Solution: Verify the power supply voltage and current match the relay's coil specifications.
  2. Contacts Sticking:

    • Cause: Overloading the relay contacts.
    • Solution: Ensure the load does not exceed the relay's contact rating.
  3. Excessive Heat:

    • Cause: Prolonged operation near maximum ratings.
    • Solution: Operate the relay within its specified limits and provide adequate ventilation.
  4. Noise or Chattering:

    • Cause: Unstable power supply or insufficient driving current.
    • Solution: Use a stable power source and ensure proper driving circuitry.

FAQs

Q1: Can the MK2P-N relay be used for DC loads?
A1: Yes, the relay can switch DC loads up to 10A at 30V DC. Ensure the load does not exceed this rating.

Q2: What is the purpose of the flyback diode?
A2: The flyback diode protects the driving circuit from voltage spikes generated when the relay coil is de-energized.

Q3: Can I use the relay for high-frequency switching?
A3: No, the MK2P-N is not designed for high-frequency switching. It is best suited for low-frequency applications.

Q4: How do I test if the relay is working?
A4: Apply the rated coil voltage to pins 1 and 2. You should hear a clicking sound, indicating the relay is switching. Use a multimeter to verify continuity between the common and NO/NC contacts.

By following this documentation, you can effectively integrate the Omron MK2P-N relay into your projects and troubleshoot common issues with ease.
