The Adafruit 24LC32 I2C EEPROM Breakout (Part ID: 5146) is a compact and reliable module designed to provide 32Kbits (4KB) of non-volatile memory. This memory module is accessible via the I2C interface, making it an excellent choice for embedded systems that require small amounts of data storage. The breakout board features a Stemma QT connector, enabling seamless integration with a wide range of microcontrollers, including Arduino and Raspberry Pi.

• Storing configuration settings or calibration data in embedded systems
• Logging small amounts of sensor data
• Retaining data across power cycles
• Applications requiring low-power, non-volatile memory

The Adafruit 24LC32 I2C EEPROM Breakout is based on the Microchip 24LC32A EEPROM chip. Below are the key technical details:

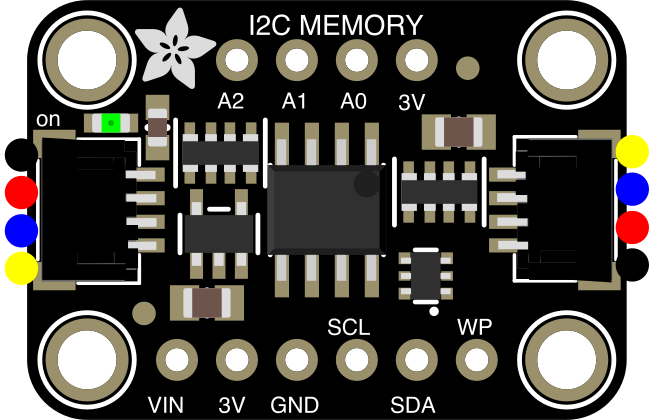

The breakout board has the following pinout:

1. Power the Module: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect I2C Lines: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
3. Set the I2C Address: Use the A0, A1, and A2 pins to configure the I2C address. By default, all address pins are tied to GND, resulting in an address of 0x50. Refer to the 24LC32A datasheet for address configuration details.
4. Optional Stemma QT Connection: If your microcontroller supports Stemma QT, simply use a Stemma QT cable to connect the module.

• Pull-Up Resistors: Ensure that your I2C bus has appropriate pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines. Some microcontrollers include internal pull-ups, but external resistors may be required for reliable operation.
• Write Cycle Time: Allow sufficient time (5 ms) for write operations to complete before initiating another write.
• Address Conflicts: If using multiple I2C devices, ensure that each device has a unique address to avoid conflicts.
• Voltage Compatibility: Verify that the operating voltage of your microcontroller matches the voltage requirements of the EEPROM module.

Below is an example of how to use the Adafruit 24LC32 I2C EEPROM Breakout with an Arduino UNO:

#include <Wire.h> // Include the Wire library for I2C communication

#define EEPROM_I2C_ADDRESS 0x50 // Default I2C address of the 24LC32 EEPROM

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("EEPROM Test Initialized");

  // Write a byte to EEPROM
  writeEEPROM(0x00, 0x42); // Write 0x42 to address 0x00
  delay(10); // Wait for the write cycle to complete

  // Read the byte back from EEPROM
  byte data = readEEPROM(0x00);
  Serial.print("Data read from EEPROM: 0x");
  Serial.println(data, HEX); // Print the data in hexadecimal format
}

void loop() {
  // Nothing to do in the loop
}

// Function to write a byte to the EEPROM
void writeEEPROM(unsigned int address, byte data) {
  Wire.beginTransmission(EEPROM_I2C_ADDRESS);
  Wire.write((address >> 8) & 0xFF); // Send the high byte of the address
  Wire.write(address & 0xFF);        // Send the low byte of the address
  Wire.write(data);                  // Send the data byte
  Wire.endTransmission();
  delay(5); // Wait for the write cycle to complete
}

// Function to read a byte from the EEPROM
byte readEEPROM(unsigned int address) {
  Wire.beginTransmission(EEPROM_I2C_ADDRESS);
  Wire.write((address >> 8) & 0xFF); // Send the high byte of the address
  Wire.write(address & 0xFF);        // Send the low byte of the address
  Wire.endTransmission();

  Wire.requestFrom(EEPROM_I2C_ADDRESS, 1); // Request 1 byte from the EEPROM
  if (Wire.available()) {
    return Wire.read(); // Return the received byte
  }
  return 0xFF; // Return 0xFF if no data is available
}

1. EEPROM Not Responding on I2C Bus

   • Cause: Incorrect wiring or I2C address conflict.
   • Solution: Double-check the connections and ensure the I2C address matches the configuration of the A0, A1, and A2 pins.

2. Data Corruption

   • Cause: Insufficient delay after write operations.
   • Solution: Ensure a minimum delay of 5 ms after each write operation.

3. Unstable I2C Communication

   • Cause: Missing or incorrect pull-up resistors on the SDA and SCL lines.
   • Solution: Add 4.7kΩ pull-up resistors to the SDA and SCL lines if not already present.

4. Incorrect Data Read

   • Cause: Addressing error or noise on the I2C bus.
   • Solution: Verify the address being accessed and ensure proper shielding of I2C lines in noisy environments.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module supports operating voltages from 2.5V to 5.5V, making it compatible with both 3.3V and 5V systems.

Q: How do I connect multiple EEPROM modules on the same I2C bus?
A: Use the A0, A1, and A2 pins to assign unique I2C addresses to each module.

Q: What happens if I exceed the write endurance limit?
A: After 1,000,000 write/erase cycles, the memory cells may begin to degrade, leading to unreliable data storage.

Q: Is the Stemma QT connector mandatory for use?
A: No, you can use the standard VIN, GND, SDA, and SCL pins for connections if you do not have a Stemma QT cable.
