How to Use ESP32 Dev: Examples, Pinouts, and Specs

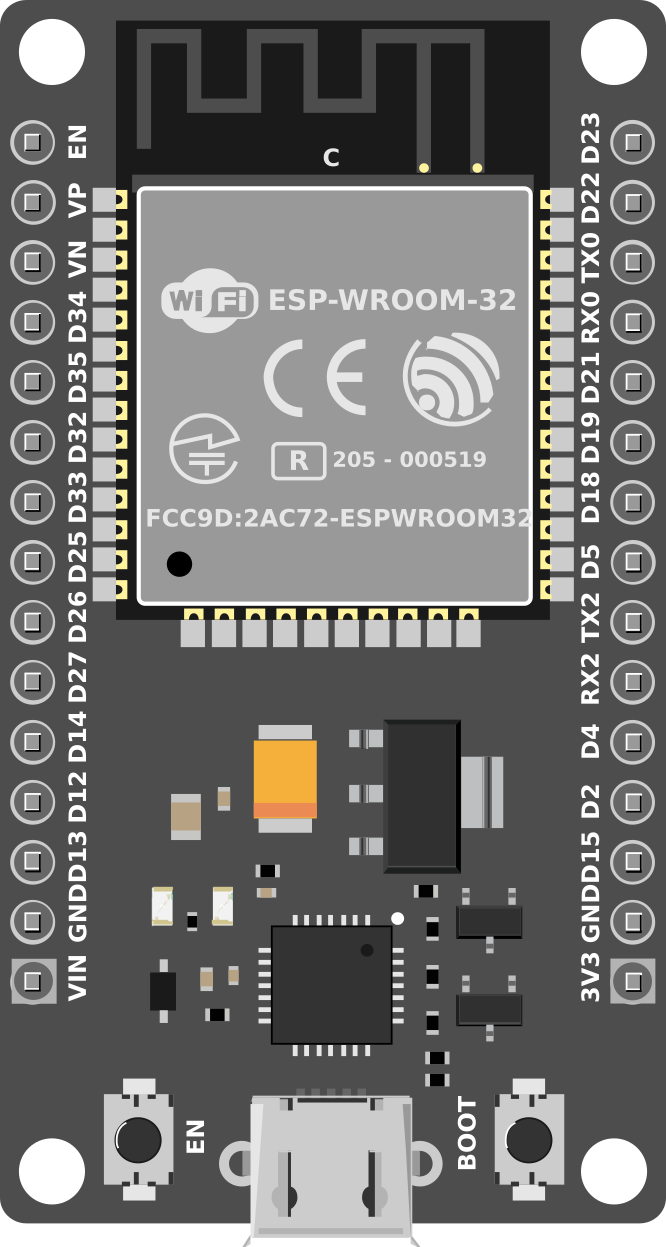

Image of ESP32 Dev
Cirkit Designer LogoDesign with ESP32 Dev in Cirkit Designer

Introduction

The ESP32 Dev is a versatile microcontroller development board designed for a wide range of applications. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) projects, smart devices, and embedded systems. With its powerful dual-core processor, multiple GPIO pins, and ADCs, the ESP32 Dev is suitable for both beginners and advanced users. It supports various programming environments, including Arduino IDE, MicroPython, and ESP-IDF, offering flexibility for developers.

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Dev in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Dev

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32 Dev in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Dev in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mark: A project utilizing ESP32 Dev in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices (e.g., smart home automation, sensors, and actuators)
  • Wireless communication systems
  • Data logging and monitoring
  • Robotics and control systems
  • Wearable devices
  • Prototyping and educational projects

Technical Specifications

The ESP32 Dev board is packed with features that make it a powerful and flexible development platform. Below are its key technical specifications:

Key Features

  • Processor: Dual-core Xtensa® 32-bit LX6 CPU, up to 240 MHz
  • Wireless Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth 4.2 (Classic + BLE)
  • Flash Memory: Typically 4 MB (varies by model)
  • SRAM: 520 KB
  • GPIO Pins: 34 (multipurpose, including PWM, I2C, SPI, UART, ADC, DAC)
  • ADC Channels: 18 (12-bit resolution)
  • DAC Channels: 2 (8-bit resolution)
  • Operating Voltage: 3.3V
  • Input Voltage: 5V (via USB) or 7-12V (via VIN pin)
  • Power Consumption: Ultra-low power consumption in deep sleep mode
  • Programming Interfaces: USB, UART, JTAG
  • Dimensions: Approximately 51mm x 25mm

Pin Configuration

The ESP32 Dev board has a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Function Description
VIN Power Input Accepts 7-12V input for powering the board.
3V3 Power Output Provides 3.3V output for external components.
GND Ground Common ground for the circuit.
GPIO0 General Purpose I/O, Boot Mode Used for programming mode when pulled low during reset.
GPIO2 General Purpose I/O, ADC, PWM Multipurpose pin, supports ADC and PWM.
GPIO12-15 General Purpose I/O, ADC, SPI Multipurpose pins, support ADC and SPI communication.
GPIO16-19 General Purpose I/O, UART, I2C Multipurpose pins, support UART and I2C communication.
EN Enable Resets the chip when pulled low.
TX0/RX0 UART0 TX/RX Default UART pins for serial communication.
DAC1/DAC2 Digital-to-Analog Converter Pins Used for analog output.
ADC1/ADC2 Analog-to-Digital Converter Pins Used for analog input (12-bit resolution).

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

The ESP32 Dev board is easy to use and can be programmed using various environments. Below are the steps to get started and important considerations:

Getting Started

  1. Install Drivers: Ensure the USB-to-serial driver for the ESP32 is installed on your computer.
  2. Set Up Arduino IDE:
    • Install the Arduino IDE from the official website.
    • Add the ESP32 board package by navigating to File > Preferences and adding the following URL to the "Additional Board Manager URLs":
      https://dl.espressif.com/dl/package_esp32_index.json

    • Go to Tools > Board > Boards Manager, search for "ESP32," and install the package.
  3. Connect the Board:
    • Use a micro-USB cable to connect the ESP32 Dev board to your computer.
    • Select the correct board (ESP32 Dev Module) and port in the Arduino IDE under the Tools menu.
  4. Upload Code:
    • Write or load a sketch in the Arduino IDE.
    • Click the upload button to flash the code to the ESP32.

Example Code: Blink an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(1000);                 // Wait for 1 second
}

Important Considerations

  • Power Supply: Ensure the board is powered with a stable 5V via USB or 7-12V via the VIN pin.
  • GPIO Restrictions: Avoid using GPIO6-GPIO11 as they are connected to the onboard flash memory.
  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Deep Sleep Mode: Use deep sleep mode to reduce power consumption in battery-powered applications.

Troubleshooting and FAQs

Common Issues

  1. Board Not Detected:

    • Ensure the USB cable is functional and supports data transfer.
    • Verify that the correct drivers are installed.
    • Check the port settings in the Arduino IDE.
  2. Upload Fails:

    • Hold the BOOT button on the ESP32 while uploading the code.
    • Ensure the correct board and port are selected in the Arduino IDE.
  3. Wi-Fi Connection Issues:

    • Double-check the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. Random Resets:

    • Verify that the power supply is stable and sufficient.
    • Avoid using GPIO pins that conflict with the boot process.

FAQs

Q: Can I use the ESP32 with MicroPython?
A: Yes, the ESP32 supports MicroPython. You can flash the MicroPython firmware using tools like esptool.py.

Q: How do I use Bluetooth on the ESP32?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the BluetoothSerial library for Classic Bluetooth or the BLE library for BLE in the Arduino IDE.

Q: What is the maximum current output of the GPIO pins?
A: Each GPIO pin can source or sink up to 12 mA. For higher currents, use external transistors or relays.

Q: Can I power the ESP32 with a battery?
A: Yes, you can use a LiPo battery with a voltage regulator or connect directly to the VIN pin if the voltage is within 7-12V.

By following this documentation, you can effectively use the ESP32 Dev board for a variety of projects and applications.
