How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

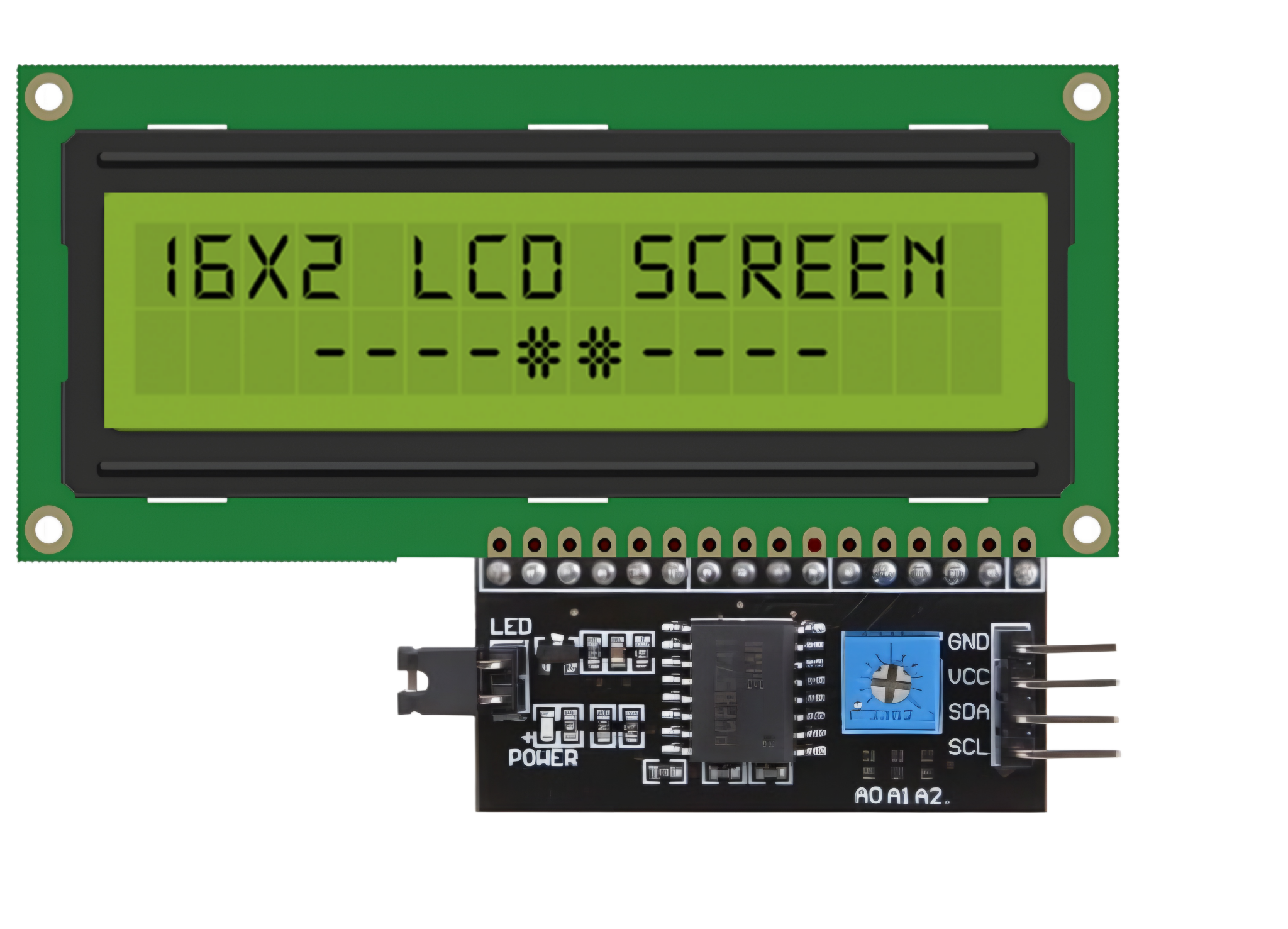

The LCD 16x2 with I2C interface is a 16-column by 2-row character display module that simplifies the process of adding a visual output to your electronic projects. Unlike traditional parallel LCDs, this module uses I2C (Inter-Integrated Circuit) communication, which significantly reduces the number of pins required for connection. This makes it ideal for microcontroller-based projects where pin availability is limited.

• Displaying sensor readings (e.g., temperature, humidity, or distance)
• User interfaces for embedded systems
• Menu systems for control panels
• Debugging and status monitoring in microcontroller projects

• Display Type: 16x2 character LCD
• Interface: I2C (4 pins: VCC, GND, SDA, SCL)
• Operating Voltage: 5V DC
• Backlight: LED with adjustable brightness
• I2C Address: Typically 0x27 or 0x3F (configurable via solder jumpers)
• Character Size: 5x8 dot matrix
• Operating Temperature: -20°C to 70°C
• Dimensions: 80mm x 36mm x 12mm (approx.)

The I2C interface reduces the number of pins required to connect the LCD. Below is the pin configuration:

1. Wiring the LCD to a Microcontroller:

   • Connect the VCC pin to the 5V output of your microcontroller.
   • Connect the GND pin to the ground (GND) of your microcontroller.
   • Connect the SDA pin to the I2C data line (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock line (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install the library.

3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
   LiquidCrystal_I2C lcd(0x27, 16, 2);

   void setup() {
     lcd.begin(); // Initialize the LCD
     lcd.backlight(); // Turn on the backlight
     lcd.setCursor(0, 0); // Set cursor to the first column, first row
     lcd.print("Hello, World!"); // Print text to the LCD
   }

   void loop() {
     // No additional code needed for this example
   }


• I2C Address: Ensure the correct I2C address is used in your code. If the LCD does not respond, use an I2C scanner sketch to detect the address.
• Power Supply: Provide a stable 5V power supply to avoid flickering or malfunction.
• Contrast Adjustment: Use the potentiometer on the I2C module to adjust the contrast of the display.
• Backlight Control: The backlight can be turned on or off programmatically using the lcd.backlight() and lcd.noBacklight() functions.

1. LCD Not Displaying Anything:

   • Verify the wiring connections (VCC, GND, SDA, SCL).
   • Check the I2C address in the code. Use an I2C scanner sketch if unsure.
   • Adjust the contrast using the potentiometer on the I2C module.

2. Flickering or Unstable Display:

   • Ensure a stable 5V power supply.
   • Avoid long or poor-quality wires for I2C connections.

3. Incorrect or Garbled Characters:

   • Confirm the correct initialization of the LCD in the code (e.g., LiquidCrystal_I2C lcd(0x27, 16, 2);).
   • Check for loose connections or interference on the I2C lines.

4. Backlight Not Working:

   • Ensure the backlight is enabled in the code using lcd.backlight().
   • Check the solder joints on the I2C module for any damage.

• Q: How do I find the I2C address of my LCD?
  A: Use an I2C scanner sketch available online to detect the address. Common addresses are 0x27 or 0x3F.

• Q: Can I use this LCD with a 3.3V microcontroller?
  A: The LCD requires 5V for operation. Use a level shifter for SDA and SCL lines if your microcontroller operates at 3.3V.

• Q: How do I display custom characters?
  A: Use the createChar() function in the LiquidCrystal_I2C library to define and display custom characters.

By following this documentation, you can effectively integrate the LCD 16x2 with I2C into your projects for clear and efficient visual output.
