How to Use Electrodes: Examples, Pinouts, and Specs

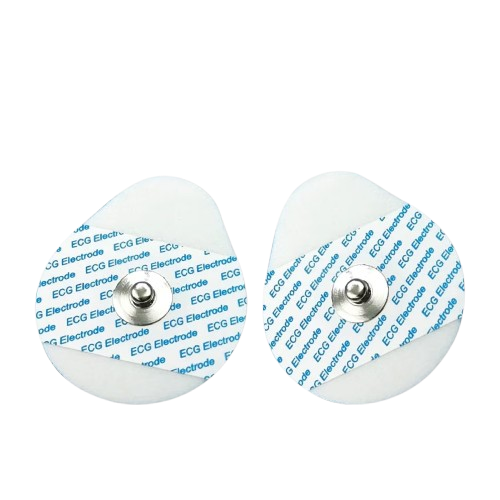

Image of Electrodes
Cirkit Designer LogoDesign with Electrodes in Cirkit Designer

Introduction

Electrodes are conductive materials designed to facilitate the flow of electric current into or out of a medium. They serve as an interface between an electrical circuit and the medium, which can be a solid, liquid, or gas. Electrodes are essential in a wide range of applications, including energy storage, chemical reactions, and sensing technologies.

Explore Projects Built with Electrodes

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Galvanic Cell Powered Red LED
Image of Salt water Battery: A project utilizing Electrodes in a practical application
The circuit appears to be a simple galvanic cell setup with a red LED connected in series. Zinc and copper elements are used, likely as electrodes, to create an electrochemical reaction that provides a voltage and current to power the LED. There are no active electronic components or microcontroller code involved, indicating a purely electrochemical and electrical circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Battery-Powered Hyperhidrosis Treatment Device with OLED Display
Image of Copy of RM Gloves: A project utilizing Electrodes in a practical application
This circuit is a hyperhidrosis treatment device that uses an ESP32 microcontroller to control current flow through electrodes based on user input from a potentiometer and a pushbutton. It features an OLED display for user feedback, a real-time clock for session timing, and a battery management system for power regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Battery-Powered Hyperhidrosis Treatment Device with OLED Display and RTC
Image of Copy of RM Gloves: A project utilizing Electrodes in a practical application
This circuit is a hyperhidrosis treatment device that uses an ESP32 microcontroller to control current flow through electrodes based on user input from a potentiometer and a pushbutton. It features an OLED display for user feedback, an RTC for timekeeping, and a LiPoly battery with charging and voltage regulation circuitry.
Cirkit Designer LogoOpen Project in Cirkit Designer

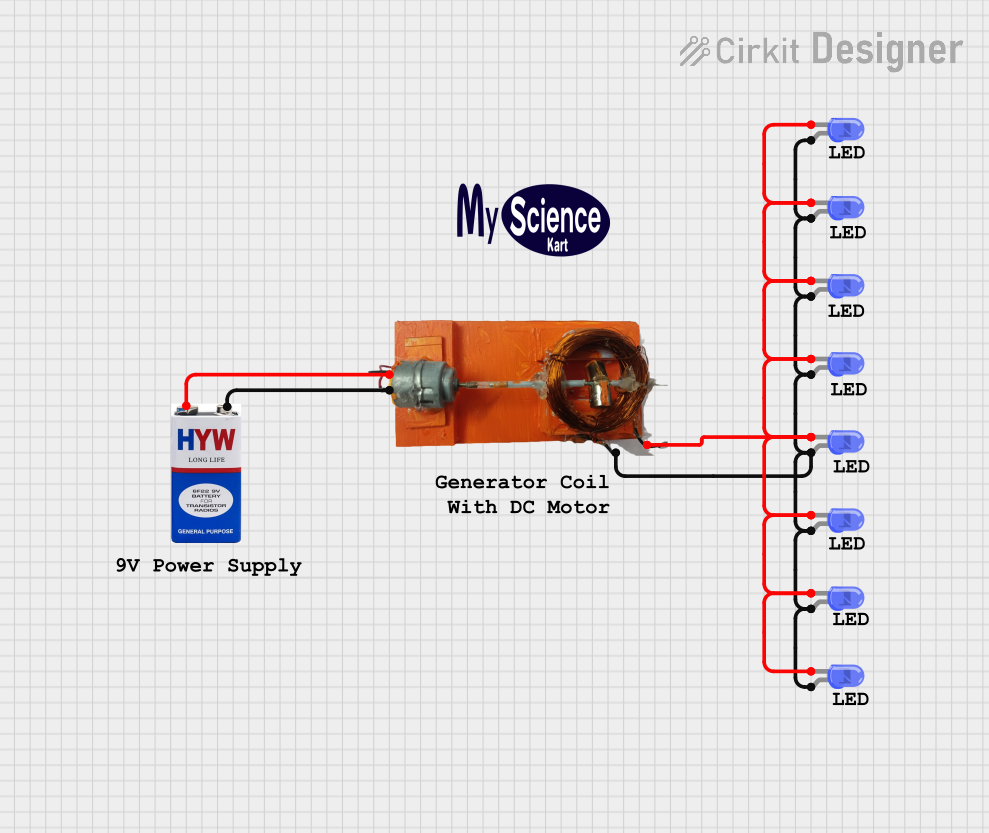

9V Battery-Powered Blue LED Array with ELE Generator
Image of Electricity Generator: A project utilizing Electrodes in a practical application
This circuit consists of a 9V battery connected in parallel to an ELE Generator, which in turn is connected to multiple blue LEDs. All the anodes of the LEDs are connected together to one terminal of the ELE Generator, and all the cathodes are connected together to the other terminal, forming a parallel LED array powered by the generator. There is no embedded code provided, indicating that the circuit's operation is purely electrical without programmable control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Electrodes

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Salt water Battery: A project utilizing Electrodes in a practical application
Galvanic Cell Powered Red LED
The circuit appears to be a simple galvanic cell setup with a red LED connected in series. Zinc and copper elements are used, likely as electrodes, to create an electrochemical reaction that provides a voltage and current to power the LED. There are no active electronic components or microcontroller code involved, indicating a purely electrochemical and electrical circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of RM Gloves: A project utilizing Electrodes in a practical application
ESP32-Based Battery-Powered Hyperhidrosis Treatment Device with OLED Display
This circuit is a hyperhidrosis treatment device that uses an ESP32 microcontroller to control current flow through electrodes based on user input from a potentiometer and a pushbutton. It features an OLED display for user feedback, a real-time clock for session timing, and a battery management system for power regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of RM Gloves: A project utilizing Electrodes in a practical application
ESP32-Based Battery-Powered Hyperhidrosis Treatment Device with OLED Display and RTC
This circuit is a hyperhidrosis treatment device that uses an ESP32 microcontroller to control current flow through electrodes based on user input from a potentiometer and a pushbutton. It features an OLED display for user feedback, an RTC for timekeeping, and a LiPoly battery with charging and voltage regulation circuitry.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Electricity Generator: A project utilizing Electrodes in a practical application
9V Battery-Powered Blue LED Array with ELE Generator
This circuit consists of a 9V battery connected in parallel to an ELE Generator, which in turn is connected to multiple blue LEDs. All the anodes of the LEDs are connected together to one terminal of the ELE Generator, and all the cathodes are connected together to the other terminal, forming a parallel LED array powered by the generator. There is no embedded code provided, indicating that the circuit's operation is purely electrical without programmable control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Batteries: Electrodes act as the anode and cathode, enabling the flow of electrons during charge and discharge cycles.
  • Electrolysis: Used to drive chemical reactions by passing an electric current through a solution.
  • Sensors: Electrodes are integral in devices like pH meters, ECG machines, and gas sensors.
  • Capacitors: Serve as plates to store electrical energy.
  • Welding: Used to conduct current and create heat for joining materials.

Technical Specifications

The specifications of electrodes vary depending on their material, size, and intended application. Below are general technical details:

Key Technical Details

  • Material: Common materials include graphite, platinum, gold, silver, copper, and carbon.
  • Conductivity: High electrical conductivity is essential for efficient current flow.
  • Voltage Range: Typically depends on the application (e.g., 1.5V–12V for batteries, higher for industrial processes).
  • Current Capacity: Varies based on size and material, ranging from milliamps to hundreds of amps.
  • Durability: Resistance to corrosion and wear is critical, especially in chemical environments.

Pin Configuration and Descriptions

Electrodes do not have a standard pin configuration like ICs or transistors. However, they are typically connected to circuits via terminals or leads. Below is an example of a basic electrode setup for a two-electrode system:

Electrode Description
Anode The positive electrode where oxidation occurs (loss of electrons).
Cathode The negative electrode where reduction occurs (gain of electrons).
Lead/Terminal Conductive wire or connector used to interface the electrode with the circuit.

Usage Instructions

How to Use Electrodes in a Circuit

  1. Identify the Type of Electrode: Determine whether the electrode will act as an anode or cathode based on the application.
  2. Connect to the Circuit:
    • Use conductive wires or terminals to connect the electrodes to the power source or sensing device.
    • Ensure proper polarity (positive to anode, negative to cathode) to avoid reverse operation.
  3. Immerse in Medium:
    • For applications like electrolysis or sensing, immerse the electrodes in the appropriate medium (e.g., electrolyte solution).
    • Ensure the electrodes are clean and free of contaminants for optimal performance.
  4. Apply Voltage/Current:
    • Use a power source to apply the required voltage or current to the electrodes.
    • Monitor the system to ensure safe operation within the specified limits.

Important Considerations and Best Practices

  • Material Selection: Choose electrode materials compatible with the medium to prevent corrosion or degradation.
  • Surface Area: Larger surface areas improve efficiency in applications like electrolysis and sensing.
  • Cleaning: Regularly clean electrodes to remove deposits or contaminants that may affect performance.
  • Safety: Handle electrodes with care, especially in high-voltage or chemical environments.

Example: Using Electrodes with an Arduino UNO

Electrodes can be used with an Arduino UNO for sensing applications, such as measuring the conductivity of a solution. Below is an example code snippet:

// Example: Measuring solution conductivity using electrodes and Arduino UNO
// Connect one electrode to pin A0 and the other to GND

const int electrodePin = A0; // Analog pin connected to the electrode
int sensorValue = 0;         // Variable to store the analog reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  // Read the analog value from the electrode
  sensorValue = analogRead(electrodePin);

  // Convert the analog value to a voltage (assuming 5V reference)
  float voltage = sensorValue * (5.0 / 1023.0);

  // Print the voltage to the Serial Monitor
  Serial.print("Electrode Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues

  1. Poor Conductivity:

    • Cause: Dirty or corroded electrodes.
    • Solution: Clean the electrodes with a suitable cleaning agent (e.g., isopropyl alcohol or distilled water).
  2. Incorrect Readings:

    • Cause: Improper connection or damaged electrodes.
    • Solution: Verify connections and inspect electrodes for physical damage.
  3. Electrode Degradation:

    • Cause: Use of incompatible materials in a corrosive medium.
    • Solution: Select electrodes made of corrosion-resistant materials like platinum or graphite.
  4. Overheating:

    • Cause: Excessive current or voltage.
    • Solution: Operate within the specified current and voltage limits.

FAQs

  • Q: Can I use any material as an electrode?
    A: No, the material must have high conductivity and be compatible with the medium to avoid corrosion or degradation.

  • Q: How do I clean electrodes?
    A: Use a soft cloth and a cleaning agent like isopropyl alcohol or distilled water. Avoid abrasive materials that may damage the surface.

  • Q: What is the difference between an anode and a cathode?
    A: The anode is the positive electrode where oxidation occurs, while the cathode is the negative electrode where reduction occurs.

  • Q: Can electrodes be reused?
    A: Yes, electrodes can be reused if they are properly cleaned and maintained.

  • Q: How do I know if an electrode is damaged?
    A: Signs of damage include visible corrosion, cracks, or inconsistent performance in the circuit. Replace damaged electrodes promptly.
