How to Use Pushbutton STOP: Examples, Pinouts, and Specs

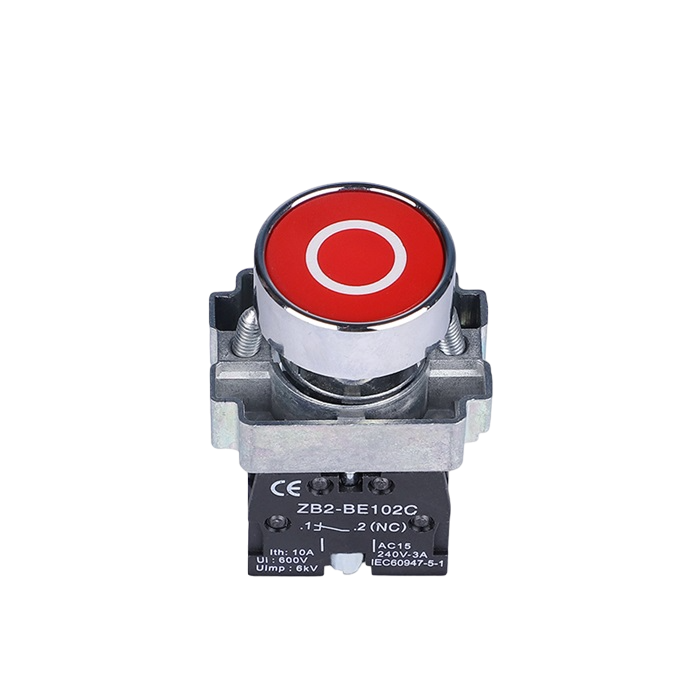

Image of Pushbutton STOP
Cirkit Designer LogoDesign with Pushbutton STOP in Cirkit Designer

Introduction

The Pushbutton STOP is a momentary switch designed to interrupt an electrical circuit when pressed. It is commonly used in safety-critical applications to stop machines, processes, or systems immediately. The switch is spring-loaded, meaning it returns to its default (open) position when released. This component is essential in industrial control systems, emergency stop mechanisms, and user interfaces requiring manual intervention to halt operations.

Explore Projects Built with Pushbutton STOP

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 Controlled DC Motor with Start/Stop Buttons and Pilot Lamp
Image of Skematik Motor: A project utilizing Pushbutton STOP in a practical application
This circuit is a motor control system using an Arduino 101, which interfaces with start and stop pushbuttons to control a DC motor via a PWM motor controller. A blue pilot lamp indicates the status, and the motor controller is powered through a socket and a DC power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Pushbutton Input with 10k Ohm Resistor
Image of floating_03: A project utilizing Pushbutton STOP in a practical application
This circuit features an Arduino UNO microcontroller connected to a pushbutton and a 10k Ohm resistor. The pushbutton is powered by the 5V pin of the Arduino, and its state is read through digital pin D2, with the resistor providing a pull-down to ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled Relay System with Safety Interlocks
Image of HYD: A project utilizing Pushbutton STOP in a practical application
This circuit includes an Arduino Nano microcontroller interfaced with multiple pushbuttons, limit switches, an emergency stop, a 2-channel relay module, and a 1-channel relay module. The Arduino controls the relay modules based on inputs from the pushbuttons and limit switches, which likely serve as user interfaces and position or safety sensors. The circuit is powered by a 5V power supply unit (PSU), which is connected to an AC supply, and the emergency stop is configured to potentially interrupt the circuit for safety purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Pushbutton-Controlled LED Circuit with Capacitor Smoothing
Image of cirkit designer project3: A project utilizing Pushbutton STOP in a practical application
This is a simple pushbutton-controlled LED circuit with a voltage stabilization or power reserve feature provided by an electrolytic capacitor. Pressing either pushbutton will complete the circuit, allowing current to flow from the 4 x AAA batteries through the LED, causing it to illuminate.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Pushbutton STOP

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Skematik Motor: A project utilizing Pushbutton STOP in a practical application
Arduino 101 Controlled DC Motor with Start/Stop Buttons and Pilot Lamp
This circuit is a motor control system using an Arduino 101, which interfaces with start and stop pushbuttons to control a DC motor via a PWM motor controller. A blue pilot lamp indicates the status, and the motor controller is powered through a socket and a DC power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of floating_03: A project utilizing Pushbutton STOP in a practical application
Arduino UNO Pushbutton Input with 10k Ohm Resistor
This circuit features an Arduino UNO microcontroller connected to a pushbutton and a 10k Ohm resistor. The pushbutton is powered by the 5V pin of the Arduino, and its state is read through digital pin D2, with the resistor providing a pull-down to ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of HYD: A project utilizing Pushbutton STOP in a practical application
Arduino Nano Controlled Relay System with Safety Interlocks
This circuit includes an Arduino Nano microcontroller interfaced with multiple pushbuttons, limit switches, an emergency stop, a 2-channel relay module, and a 1-channel relay module. The Arduino controls the relay modules based on inputs from the pushbuttons and limit switches, which likely serve as user interfaces and position or safety sensors. The circuit is powered by a 5V power supply unit (PSU), which is connected to an AC supply, and the emergency stop is configured to potentially interrupt the circuit for safety purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cirkit designer project3: A project utilizing Pushbutton STOP in a practical application
Pushbutton-Controlled LED Circuit with Capacitor Smoothing
This is a simple pushbutton-controlled LED circuit with a voltage stabilization or power reserve feature provided by an electrolytic capacitor. Pressing either pushbutton will complete the circuit, allowing current to flow from the 4 x AAA batteries through the LED, causing it to illuminate.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Emergency stop buttons in industrial machinery
  • Safety circuits in automation systems
  • Manual control panels for halting processes
  • Reset or interrupt functions in electronic devices

Technical Specifications

The Pushbutton STOP is a simple yet robust component. Below are its key technical details:

Parameter Value
Operating Voltage 3V to 24V DC
Maximum Current Rating 3A
Contact Configuration Normally Open (NO)
Actuation Force 2-5 N
Mechanical Life 50,000 cycles
Mounting Style Panel mount with screw terminals
Operating Temperature -20°C to +70°C

Pin Configuration and Descriptions

The Pushbutton STOP typically has two terminals:

Pin Description
Pin 1 Input terminal for connecting to the power source or signal line
Pin 2 Output terminal for connecting to the load or circuit to be interrupted

Usage Instructions

How to Use the Pushbutton STOP in a Circuit

  1. Identify the Circuit: Determine the point in the circuit where you want to interrupt the current flow.
  2. Connect the Terminals:
    • Connect Pin 1 to the power source or signal line.
    • Connect Pin 2 to the load or the circuit to be interrupted.
  3. Mount the Switch: Secure the Pushbutton STOP to a panel or enclosure using the provided mounting hardware.
  4. Test the Circuit: Press the button to ensure it interrupts the circuit as expected.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the operating voltage and current do not exceed the component's maximum ratings to avoid damage.
  • Debouncing: If used in digital circuits, consider implementing a debouncing mechanism (hardware or software) to prevent false triggering.
  • Safety Compliance: For industrial applications, ensure the Pushbutton STOP complies with relevant safety standards.
  • Wiring: Use appropriate wire gauges and secure connections to prevent loose or faulty wiring.

Example: Using Pushbutton STOP with Arduino UNO

The Pushbutton STOP can be used with an Arduino UNO to stop a process or trigger an emergency shutdown. Below is an example circuit and code:

Circuit Setup

  1. Connect Pin 1 of the Pushbutton STOP to a digital input pin on the Arduino (e.g., pin 2).
  2. Connect Pin 2 to the ground (GND) of the Arduino.
  3. Use a pull-up resistor (10kΩ) between the digital input pin and the Arduino's 5V pin.

Code Example

// Pushbutton STOP Example with Arduino UNO
// This code monitors the Pushbutton STOP and stops a process when pressed.

const int buttonPin = 2;  // Pin connected to Pushbutton STOP
const int ledPin = 13;    // Pin connected to an LED (indicates process status)

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Configure button pin as input with pull-up
  pinMode(ledPin, OUTPUT);          // Configure LED pin as output
  digitalWrite(ledPin, HIGH);       // Turn on LED (process running)
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button pressed (active LOW)
    digitalWrite(ledPin, LOW); // Turn off LED (process stopped)
    while (digitalRead(buttonPin) == LOW) {
      // Wait until the button is released
    }
  }
}

Notes:

  • The INPUT_PULLUP mode ensures the button is in a known state when not pressed.
  • The LED represents a running process, which stops when the button is pressed.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Button Does Not Interrupt the Circuit:

    • Verify the wiring connections and ensure the terminals are properly connected.
    • Check if the voltage and current ratings are within the component's specifications.
  2. Button Sticks or Fails to Return to Default Position:

    • Inspect for physical damage or debris around the button mechanism.
    • Replace the switch if the mechanical life has been exceeded.
  3. False Triggers in Digital Circuits:

    • Implement a debouncing mechanism in hardware (capacitor) or software (code).
  4. No Response in Arduino Circuit:

    • Ensure the pull-up resistor is correctly connected.
    • Verify the Arduino code and check for errors in pin assignments.

FAQs

Q: Can the Pushbutton STOP be used in AC circuits?
A: Yes, but ensure the voltage and current ratings are suitable for the AC application.

Q: Is the Pushbutton STOP waterproof?
A: Standard models are not waterproof. For outdoor or wet environments, use a waterproof variant.

Q: Can I use the Pushbutton STOP to control high-power devices?
A: No, the Pushbutton STOP is not designed for high-power applications. Use it to control a relay or other intermediary device for such purposes.
