How to Use Modem: Examples, Pinouts, and Specs

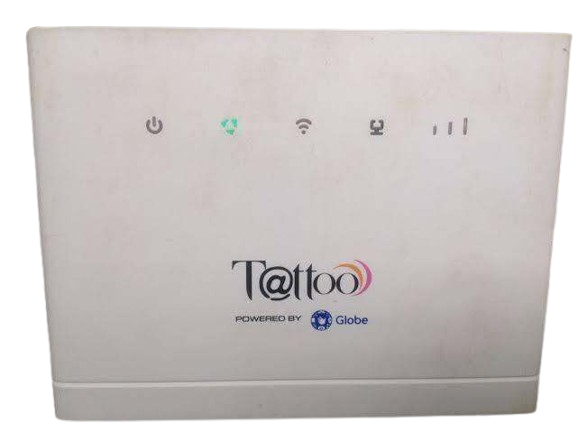

The Globe Tattoo modem is an electronic component designed to provide internet connectivity through modulation and demodulation of digital signals over communication lines. It is commonly used to connect computers and other devices to the internet via telephone lines or cable systems. This modem is particularly useful in areas where traditional broadband connections are not available or as a backup internet source.

• Home internet access
• Remote workstations
• Temporary internet setups for events
• Backup internet connection for business continuity

The Globe Tattoo modem typically does not have a pin configuration as it is not a component that is directly interfaced with microcontrollers or similar devices. Instead, it has ports for connectivity:

1. Connecting to DSL Line:

   • Connect one end of the RJ-11 cable to the DSL port on the modem.
   • Connect the other end to the telephone jack on the wall.

2. Powering the Modem:

   • Connect the power adapter to the modem and plug it into an AC outlet.

3. Establishing a Wired Connection:

   • Use an Ethernet cable to connect the modem to a computer or router.

4. Establishing a Wireless Connection:

   • Power on the modem and use a computer or mobile device to search for the wireless network.
   • Connect to the network using the security credentials provided with the modem.

• Ensure that the modem is placed in a well-ventilated area to prevent overheating.
• Keep the modem away from large metal objects and appliances that emit electromagnetic waves to avoid interference.
• Update the modem's firmware regularly to maintain security and performance.
• Use a surge protector to safeguard the modem from power surges.

• No Internet Connection:

  • Check if the DSL line is properly connected.
  • Verify that the modem is powered on and the LEDs indicate a stable connection.
  • Restart the modem to reset the connection.

• Slow Internet Speed:

  • Test the connection with a wired setup to rule out wireless interference.
  • Clear the modem's cache by restarting it.
  • Contact your ISP to check if there are issues with the line or service outages.

• Wireless Network Not Found:

  • Ensure that the modem's wireless function is enabled.
  • Check the wireless settings and confirm that the SSID is being broadcasted.

Q: How do I reset my Globe Tattoo modem to factory settings? A: Locate the reset button on the modem, press and hold it for about 10 seconds until the modem restarts.

Q: Can I use the Globe Tattoo modem with any ISP? A: The modem is typically locked to the Globe network. Contact Globe for unlocking procedures if necessary.

Q: How do I update the firmware of my modem? A: Firmware updates are usually provided by Globe. Check their official website or contact customer support for guidance.

Q: What should I do if I forget my wireless network password? A: You can reset the modem to factory settings or log in to the modem's web interface to change the password.

Q: How many devices can connect to the Globe Tattoo modem wirelessly? A: It depends on the specific model, but most modems can support up to 10-15 devices simultaneously.

For further assistance, please refer to the Globe Tattoo modem user manual or contact Globe customer support.

(Note: The above documentation is a generic guide for a Globe Tattoo modem and may not reflect the exact specifications or features of a specific model. Always refer to the manufacturer's documentation for precise information.)
