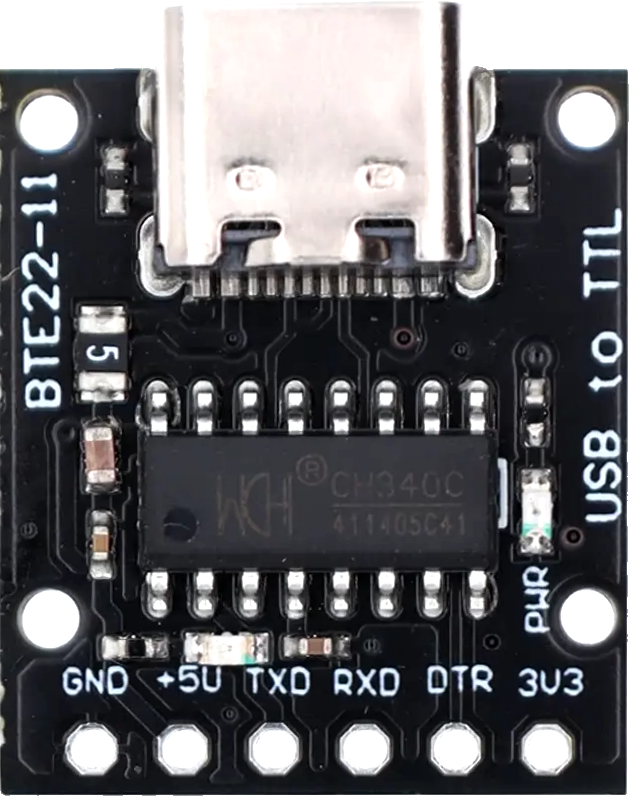

Image of USB Serial TTL
Cirkit Designer LogoDesign with USB Serial TTL in Cirkit Designer

Introduction

The USB Serial TTL converter is a versatile electronic component that bridges the gap between USB ports and TTL (Transistor-Transistor Logic) serial devices. It enables seamless communication between a computer and microcontrollers, sensors, or other TTL-based devices. This component is widely used for programming microcontrollers, debugging embedded systems, and interfacing with serial peripherals.

Explore Projects Built with USB Serial TTL

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-CAM Module with USB to TTL Communication
Image of S: A project utilizing USB Serial TTL in a practical application
This circuit connects an ESP32-CAM module to a USB to TTL module for serial communication and power supply. The ESP32-CAM's transmit (VOT) and receive (VOR) pins are connected to the USB to TTL's RXD and TXD pins respectively, enabling serial data exchange between the ESP32-CAM and a connected computer. Power (3V3 and 5V) and ground (GND) connections are also established between the two modules, ensuring the ESP32-CAM is powered and can communicate over USB.
Cirkit Designer LogoOpen Project in Cirkit Designer
FTDI to UART Adapter with J26 Connector
Image of J26 CLOSEUP: A project utilizing USB Serial TTL in a practical application
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and MAX 3232 Module Controlled NE-1000 Pump System
Image of NE-1000 RS232: A project utilizing USB Serial TTL in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a MAX 3232 module for serial communication. The Arduino provides power and ground to the MAX 3232, and the two devices communicate via the TxD and RxD pins. The setup is likely intended for serial data transmission between the Arduino and another device.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Relay-Controlled RS485 Communication System
Image of Diagrama: A project utilizing USB Serial TTL in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with USB Serial TTL

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of S: A project utilizing USB Serial TTL in a practical application
ESP32-CAM Module with USB to TTL Communication
This circuit connects an ESP32-CAM module to a USB to TTL module for serial communication and power supply. The ESP32-CAM's transmit (VOT) and receive (VOR) pins are connected to the USB to TTL's RXD and TXD pins respectively, enabling serial data exchange between the ESP32-CAM and a connected computer. Power (3V3 and 5V) and ground (GND) connections are also established between the two modules, ensuring the ESP32-CAM is powered and can communicate over USB.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J26 CLOSEUP: A project utilizing USB Serial TTL in a practical application
FTDI to UART Adapter with J26 Connector
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NE-1000 RS232: A project utilizing USB Serial TTL in a practical application
Arduino UNO and MAX 3232 Module Controlled NE-1000 Pump System
This circuit features an Arduino UNO microcontroller interfaced with a MAX 3232 module for serial communication. The Arduino provides power and ground to the MAX 3232, and the two devices communicate via the TxD and RxD pins. The setup is likely intended for serial data transmission between the Arduino and another device.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Diagrama: A project utilizing USB Serial TTL in a practical application
Arduino UNO and Relay-Controlled RS485 Communication System
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming microcontrollers such as Arduino, ESP8266, and ESP32.
  • Debugging and monitoring serial data from embedded systems.
  • Interfacing with TTL-based sensors and modules (e.g., GPS modules, GSM modules).
  • Creating custom USB-to-serial communication solutions.

Technical Specifications

The USB Serial TTL converter typically comes in a compact module form and includes the following key specifications:

Parameter Value
Input Voltage (USB) 5V (via USB port)
Output Voltage (TTL) 3.3V or 5V (selectable on some modules)
Communication Protocol UART (Universal Asynchronous Receiver-Transmitter)
Baud Rate Range 300 bps to 1 Mbps (varies by module)
USB Interface USB 2.0 (compatible with USB 1.1 and 3.0)
Operating Temperature -40°C to 85°C

Pin Configuration and Descriptions

The USB Serial TTL module typically has the following pins:

Pin Name Description
GND Ground connection. Connect to the ground of the target circuit.
VCC Power output. Provides 3.3V or 5V (depending on module configuration).
TXD Transmit Data. Sends serial data from the USB to the target device.
RXD Receive Data. Receives serial data from the target device to the USB.
DTR Data Terminal Ready. Used for automatic reset of microcontrollers (optional).
CTS Clear to Send. Flow control pin (optional, not always present).

Usage Instructions

How to Use the USB Serial TTL in a Circuit

  1. Connect the USB Serial TTL to the Target Device:

    • Connect the GND pin of the module to the ground of the target circuit.
    • Connect the TXD pin of the module to the RX pin of the target device.
    • Connect the RXD pin of the module to the TX pin of the target device.
    • If required, connect the VCC pin to power the target device (ensure voltage compatibility).
    • Optionally, connect the DTR pin to the reset pin of the microcontroller for automatic reset.
  2. Install Drivers:

    • Most USB Serial TTL modules use chips like FT232, CH340, or CP2102. Install the appropriate driver for your operating system (Windows, macOS, or Linux).
  3. Configure Serial Communication:

    • Use a terminal program (e.g., PuTTY, Tera Term, or Arduino IDE Serial Monitor) to set the baud rate and other communication parameters (e.g., data bits, stop bits, parity).
  4. Test the Connection:

    • Send and receive data to verify communication between the USB port and the target device.

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the target device operates at the same voltage level as the USB Serial TTL module (3.3V or 5V).
  • Cross-Connection of TX and RX: Always connect the TXD pin of the module to the RX pin of the target device, and vice versa.
  • Avoid Overloading: Do not draw excessive current from the VCC pin of the module, as it is limited by the USB port's power supply.
  • Static Protection: Handle the module carefully to avoid damage from electrostatic discharge (ESD).

Example: Connecting to an Arduino UNO

The USB Serial TTL module can be used to program or communicate with an Arduino UNO. Below is an example of Arduino code to send and receive data via the serial interface:

// Example: Sending and receiving data via USB Serial TTL

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("USB Serial TTL Test"); // Send a test message
}

void loop() {
  if (Serial.available() > 0) {
    // Check if data is available to read
    char received = Serial.read(); // Read the incoming byte
    Serial.print("Received: ");
    Serial.println(received); // Echo the received data back
  }
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication Between USB and Target Device:

    • Solution: Verify the TXD and RXD connections. Ensure they are cross-connected (TXD to RX, RXD to TX).
    • Solution: Check the baud rate and other serial settings in the terminal program.
  2. Driver Not Recognized:

    • Solution: Install the correct driver for the USB Serial TTL module (e.g., FTDI, CH340, or CP2102).
    • Solution: Restart your computer after driver installation.
  3. Target Device Not Responding:

    • Solution: Ensure the target device is powered and operational.
    • Solution: Check if the DTR pin is required for resetting the microcontroller.
  4. Data Corruption or Noise:

    • Solution: Use shorter wires to reduce interference.
    • Solution: Ensure proper grounding between the USB Serial TTL module and the target device.

FAQs

Q: Can I use the USB Serial TTL module to power my target device?
A: Yes, but ensure the target device's power requirements do not exceed the module's output capacity (typically 3.3V or 5V at a limited current).

Q: What is the maximum baud rate supported?
A: The maximum baud rate depends on the specific chip used in the module. Common modules support up to 1 Mbps.

Q: Can I use this module with a Raspberry Pi?
A: Yes, the USB Serial TTL module can be used to interface with the Raspberry Pi's UART pins for serial communication.

Q: How do I know which driver to install?
A: Check the chip used in your USB Serial TTL module (e.g., FT232, CH340, or CP2102) and download the corresponding driver from the manufacturer's website.

By following this documentation, you can effectively use the USB Serial TTL converter for a wide range of applications.
