How to Use STM32F411 BlackPill: Examples, Pinouts, and Specs

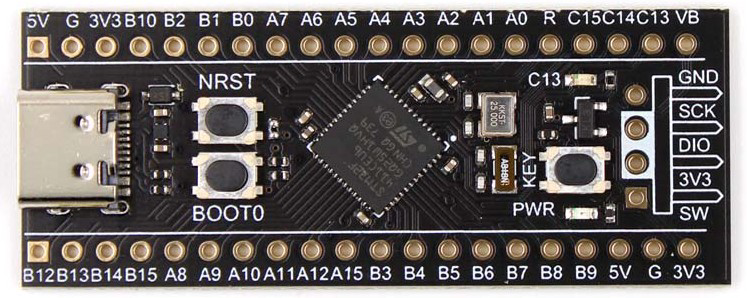

The STM32F411 BlackPill is a compact development board designed by STMicroelectronics, featuring the STM32F411 microcontroller. This microcontroller is part of the ARM Cortex-M4 family, offering high performance, low power consumption, and advanced features for embedded applications. The BlackPill form factor makes it ideal for prototyping and integrating into compact designs.

• IoT devices and smart home applications
• Robotics and motor control
• Wearable technology
• Data acquisition and signal processing
• Educational and hobbyist projects
• Real-time embedded systems

The STM32F411 BlackPill is built around the STM32F411CEU6 microcontroller, which provides a balance of performance and efficiency. Below are the key technical details:

The STM32F411 BlackPill features a 40-pin layout. Below is the pinout description:

The STM32F411 BlackPill can be used in a variety of embedded applications. Below are the steps and best practices for using the board:

1. Powering the Board:

   • Connect the board to your computer via a micro-USB cable for power and programming.
   • Alternatively, supply power through the VIN pin (5-10V) or the 3.3V pin (regulated).

2. Programming the Board:

   • Use an ST-Link programmer or a USB-to-serial adapter for flashing firmware.
   • Compatible IDEs include STM32CubeIDE, Keil uVision, and PlatformIO.

3. Installing Drivers:

   • Ensure the STM32 USB drivers are installed on your computer for proper communication.

The STM32F411 BlackPill can be programmed using the Arduino IDE with the STM32duino core installed. Below is an example of blinking an LED connected to pin PA5:

// Include the Arduino core for STM32
#include <Arduino.h>

// Define the LED pin
#define LED_PIN PA5

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(500); // Wait for 500 milliseconds

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(500); // Wait for 500 milliseconds
}

• Use decoupling capacitors near power pins to reduce noise.
• Avoid exceeding the maximum voltage ratings for GPIO pins (3.3V).
• Use pull-up or pull-down resistors for unused pins to prevent floating states.
• Ensure proper grounding to avoid signal integrity issues.

1. The board is not detected by the computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Check if the STM32 USB drivers are installed correctly.

2. Unable to upload code:

   • Verify that the board is in bootloader mode by pressing and holding the BOOT0 button while resetting the board.
   • Ensure the correct COM port and board settings are selected in the IDE.

3. GPIO pins not functioning as expected:

   • Confirm that the pins are configured correctly in the code.
   • Check for short circuits or incorrect wiring.

Q: Can I power the board with a LiPo battery?
A: Yes, you can power the board using a LiPo battery connected to the VIN pin, as long as the voltage is within the 5-10V range.

Q: Does the STM32F411 BlackPill support USB communication?
A: Yes, the board supports USB OTG FS, which can be used for serial communication or as a USB device.

Q: How do I reset the board?
A: Press the RESET button on the board to perform a hardware reset.

Q: Can I use the STM32F411 BlackPill with FreeRTOS?
A: Yes, the STM32F411 is compatible with FreeRTOS, making it suitable for real-time applications.

By following this documentation, users can effectively utilize the STM32F411 BlackPill for a wide range of embedded projects.
