How to Use MAX3485: Examples, Pinouts, and Specs

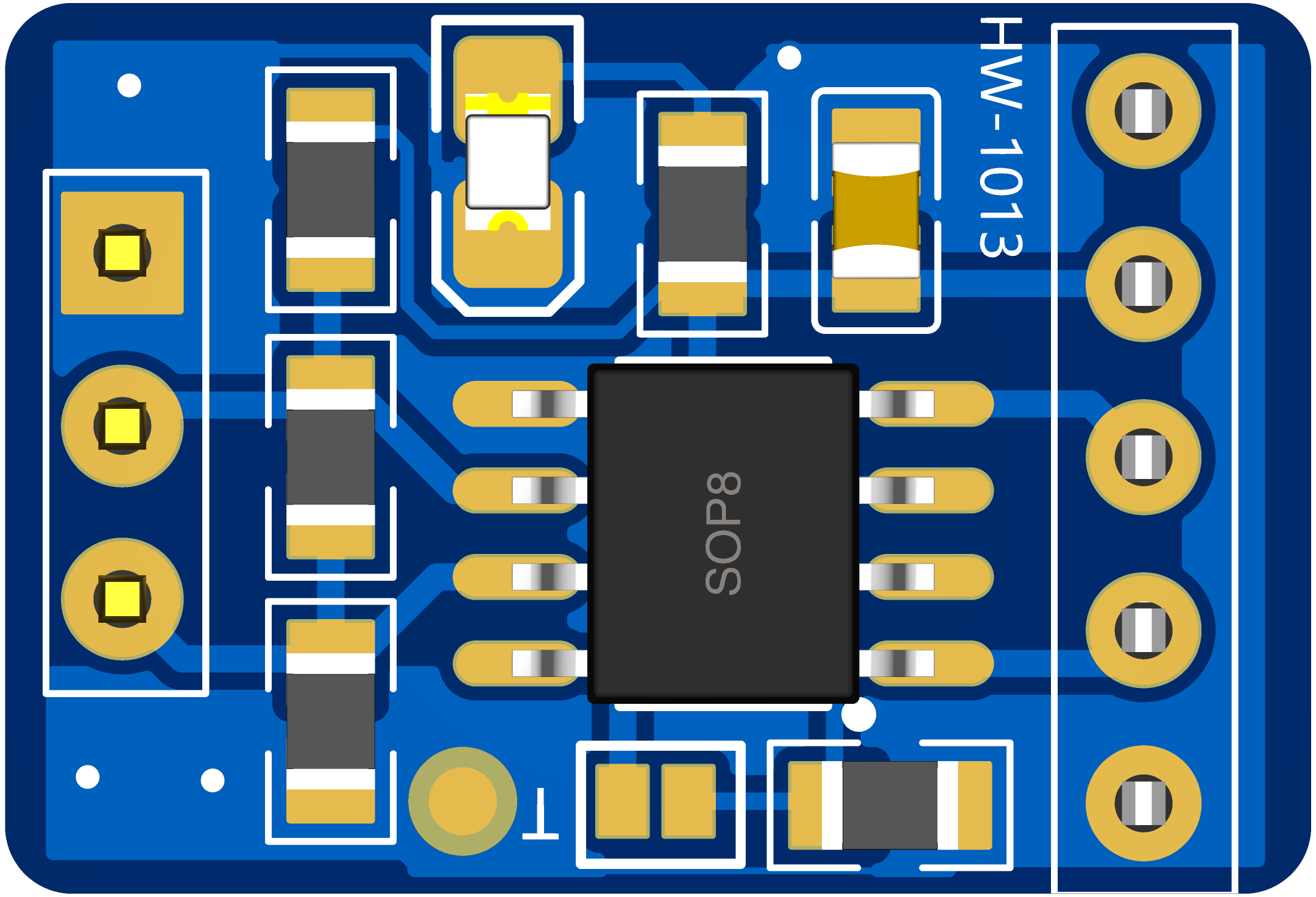

Image of MAX3485
Cirkit Designer LogoDesign with MAX3485 in Cirkit Designer

Introduction

The MAX3485, manufactured by 宏维微 (part ID: HW-1013), is a low-power, half-duplex RS-485 transceiver designed for robust and reliable data communication over long distances. It operates efficiently in multipoint communication systems and supports high-speed data rates, making it ideal for industrial, commercial, and embedded applications.

Explore Projects Built with MAX3485

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Based Multi-Channel Thermocouple Reader
Image of thermostat-test: A project utilizing MAX3485 in a practical application
This circuit is designed to interface with multiple MAX6675 thermocouple-to-digital converter modules using an Arduino Mega 2560 as the central processing unit. The Arduino reads temperature data from the MAX6675 modules over a shared SPI bus, with individual chip select (CS) lines for each module to enable multiplexing. The circuit is likely used for monitoring multiple temperature points, possibly in an industrial setting where precise temperature control and monitoring are critical.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Multi-Channel Thermocouple Interface
Image of Temperature Data Acquisition_Task2: A project utilizing MAX3485 in a practical application
This circuit is designed to interface multiple MAX6675 thermocouple-to-digital converter modules with an ESP8266 NodeMCU microcontroller. Each MAX6675 module is connected to a temperature sensor and the ESP8266 is configured to communicate with the modules via SPI to read temperature data. The ESP8266 NodeMCU manages the chip select (CS) lines individually for each MAX6675 module, allowing for multiple temperature readings from different sensors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
Image of Pulsefex: A project utilizing MAX3485 in a practical application
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and ADXL343-Based Battery-Powered Accelerometer with SPI Communication
Image of vibration module: A project utilizing MAX3485 in a practical application
This circuit features an ESP32 microcontroller interfaced with an ADXL343 accelerometer via SPI communication, powered by a 12V battery regulated down to 5V and 8V using 7805 and 7808 voltage regulators. The ESP32 reads accelerometer data and outputs it via serial communication, with additional components including a pushbutton and a rocker switch for user input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MAX3485

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of thermostat-test: A project utilizing MAX3485 in a practical application
Arduino Mega 2560 Based Multi-Channel Thermocouple Reader
This circuit is designed to interface with multiple MAX6675 thermocouple-to-digital converter modules using an Arduino Mega 2560 as the central processing unit. The Arduino reads temperature data from the MAX6675 modules over a shared SPI bus, with individual chip select (CS) lines for each module to enable multiplexing. The circuit is likely used for monitoring multiple temperature points, possibly in an industrial setting where precise temperature control and monitoring are critical.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Temperature Data Acquisition_Task2: A project utilizing MAX3485 in a practical application
ESP8266 NodeMCU Controlled Multi-Channel Thermocouple Interface
This circuit is designed to interface multiple MAX6675 thermocouple-to-digital converter modules with an ESP8266 NodeMCU microcontroller. Each MAX6675 module is connected to a temperature sensor and the ESP8266 is configured to communicate with the modules via SPI to read temperature data. The ESP8266 NodeMCU manages the chip select (CS) lines individually for each MAX6675 module, allowing for multiple temperature readings from different sensors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pulsefex: A project utilizing MAX3485 in a practical application
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of vibration module: A project utilizing MAX3485 in a practical application
ESP32 and ADXL343-Based Battery-Powered Accelerometer with SPI Communication
This circuit features an ESP32 microcontroller interfaced with an ADXL343 accelerometer via SPI communication, powered by a 12V battery regulated down to 5V and 8V using 7805 and 7808 voltage regulators. The ESP32 reads accelerometer data and outputs it via serial communication, with additional components including a pushbutton and a rocker switch for user input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation and control systems
  • Building automation (e.g., HVAC systems)
  • Data acquisition systems
  • Long-distance communication networks
  • Embedded systems requiring RS-485 communication

Technical Specifications

The MAX3485 is designed to meet the requirements of RS-485 and RS-422 communication standards. Below are its key technical specifications:

Parameter Value
Supply Voltage (Vcc) 3.0V to 3.6V
Data Rate Up to 10 Mbps
Driver Output Voltage -7V to +12V
Receiver Input Voltage -7V to +12V
Operating Temperature Range -40°C to +85°C
Low Power Consumption 1.2 mA (typical) in active mode
Driver Short-Circuit Current ±250 mA (maximum)
Receiver Input Sensitivity ±200 mV
ESD Protection ±15 kV (Human Body Model)

Pin Configuration and Descriptions

The MAX3485 is typically available in an 8-pin SOIC package. Below is the pinout and description:

Pin Name Type Description
1 RO Output Receiver output. Provides the received data.
2 RE̅ Input Receiver enable. Active low to enable the receiver.
3 DE Input Driver enable. Active high to enable the driver.
4 DI Input Driver input. Data to be transmitted.
5 GND Ground Ground reference for the device.
6 A Input/Output Non-inverting driver output/receiver input.
7 B Input/Output Inverting driver output/receiver input.
8 Vcc Power Supply Positive supply voltage (3.0V to 3.6V).

Usage Instructions

The MAX3485 is straightforward to use in RS-485 communication systems. Below are the steps and considerations for integrating it into a circuit:

Basic Circuit Connection

  1. Power Supply: Connect the Vcc pin to a 3.3V power source and the GND pin to ground.
  2. Driver Enable (DE): Set DE high to enable the driver. When DE is low, the driver is disabled.
  3. Receiver Enable (RE̅): Set RE̅ low to enable the receiver. When RE̅ is high, the receiver is disabled.
  4. Data Input (DI): Connect the DI pin to the microcontroller or data source for transmission.
  5. Differential Lines (A and B): Connect the A and B pins to the RS-485 bus. Ensure proper termination resistors (typically 120Ω) are used at both ends of the bus.
  6. Receiver Output (RO): Connect the RO pin to the microcontroller or data sink to receive data.

Example Circuit with Arduino UNO

Below is an example of how to connect the MAX3485 to an Arduino UNO for RS-485 communication:

/*
 * Example code for using MAX3485 with Arduino UNO
 * This code demonstrates sending data over RS-485.
 */

#define DE_PIN 2  // Driver Enable pin connected to Arduino digital pin 2
#define RE_PIN 3  // Receiver Enable pin connected to Arduino digital pin 3
#define DI_PIN 4  // Driver Input pin connected to Arduino digital pin 4

void setup() {
  pinMode(DE_PIN, OUTPUT);  // Set DE pin as output
  pinMode(RE_PIN, OUTPUT);  // Set RE pin as output
  pinMode(DI_PIN, OUTPUT);  // Set DI pin as output

  digitalWrite(DE_PIN, HIGH);  // Enable driver
  digitalWrite(RE_PIN, HIGH);  // Disable receiver (optional for transmission)

  Serial.begin(9600);  // Initialize serial communication
}

void loop() {
  // Send data over RS-485
  digitalWrite(DI_PIN, HIGH);  // Set DI pin high to send a logic '1'
  delay(1000);                 // Wait for 1 second
  digitalWrite(DI_PIN, LOW);   // Set DI pin low to send a logic '0'
  delay(1000);                 // Wait for 1 second
}

Important Considerations

  • Termination Resistors: Use 120Ω termination resistors at both ends of the RS-485 bus to prevent signal reflections.
  • Biasing Resistors: Add pull-up and pull-down resistors on the A and B lines to ensure a known idle state.
  • ESD Protection: While the MAX3485 has built-in ESD protection, consider adding external TVS diodes for additional protection in harsh environments.
  • Half-Duplex Communication: Ensure proper control of the DE and RE̅ pins to avoid bus contention.

Troubleshooting and FAQs

Common Issues

  1. No Communication on the Bus

    • Cause: Incorrect DE/RE̅ pin configuration.
    • Solution: Verify that DE is high and RE̅ is low during transmission.
  2. Data Corruption

    • Cause: Missing or incorrect termination resistors.
    • Solution: Ensure 120Ω termination resistors are installed at both ends of the RS-485 bus.
  3. Excessive Power Consumption

    • Cause: Short circuit on the A and B lines.
    • Solution: Check for wiring errors and ensure proper connections.
  4. Receiver Output Always High or Low

    • Cause: Floating A and B lines.
    • Solution: Add biasing resistors to set a known idle state.

FAQs

  1. Can the MAX3485 operate at 5V?

    • No, the MAX3485 is designed for a supply voltage range of 3.0V to 3.6V. Exceeding this range may damage the device.
  2. What is the maximum number of devices that can be connected to the RS-485 bus?

    • The MAX3485 supports up to 32 devices on the bus, as per the RS-485 standard.
  3. Is the MAX3485 suitable for full-duplex communication?

    • No, the MAX3485 is a half-duplex transceiver. For full-duplex communication, consider using a dedicated full-duplex RS-485 transceiver.
  4. How do I protect the MAX3485 in an industrial environment?

    • Use external TVS diodes and proper grounding to protect against voltage spikes and noise.

By following the guidelines and recommendations in this documentation, you can effectively integrate the MAX3485 into your RS-485 communication systems.
