An OLED (Organic Light Emitting Diode) display is a type of screen technology that uses organic compounds to emit light when an electric current is applied. Unlike traditional LCDs, OLED displays do not require a backlight, resulting in deeper blacks, higher contrast ratios, and improved energy efficiency. These displays are known for their vibrant colors, wide viewing angles, and thin form factor.
Common applications of OLED displays include:
This circuit features an ESP32 microcontroller that drives a 0.96" OLED display, a red LED, and a piezo buzzer. The ESP32 displays scrolling text and a bitmap on the OLED, controls the LED, and generates a tone on the buzzer, providing a simple interactive display and alert system.
Open Project in Cirkit Designer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Open Project in Cirkit Designer
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
Open Project in Cirkit Designer
This circuit features an Arduino Leonardo microcontroller connected to a 0.96" OLED display and a pushbutton with a pull-up resistor. The OLED display communicates with the Arduino via I2C (SDA and SCL lines), and the pushbutton, when pressed, changes the display content on the OLED screen. The microcontroller's code suggests the display alternates between showing an overview with speed and experience points and a player stats screen, likely for a game or interactive application.
Open Project in Cirkit DesignerBelow are the general technical specifications for a typical 0.96-inch I2C OLED display module:
| Parameter | Specification |
|---|---|
| Display Type | OLED (Organic Light Emitting Diode) |
| Resolution | 128 x 64 pixels |
| Interface | I2C (Inter-Integrated Circuit) |
| Operating Voltage | 3.3V - 5V DC |
| Current Consumption | ~20mA (varies with brightness) |
| Viewing Angle | >160° |
| Pixel Color | Monochrome (White, Blue, or Yellow) |
| Dimensions | ~27mm x 27mm x 4mm |

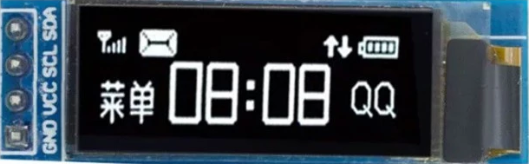

The OLED display module typically has 4 pins for I2C communication. The pinout is as follows:
| Pin | Name | Description |
|---|---|---|
| 1 | GND | Ground connection |
| 2 | VCC | Power supply (3.3V or 5V) |
| 3 | SCL | Serial Clock Line for I2C communication |
| 4 | SDA | Serial Data Line for I2C communication |
To use the OLED display with an Arduino UNO, follow these steps:
To control the OLED display, you need to install the following libraries in the Arduino IDE:
The following example code demonstrates how to display text on the OLED screen:
#include <Adafruit_GFX.h> // Graphics library for OLED
#include <Adafruit_SSD1306.h> // Library for SSD1306 OLED
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels
// Declaration for an SSD1306 display connected via I2C
#define OLED_RESET -1 // Reset pin (not used with I2C)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
// Initialize the display
if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
// Address 0x3C for most 128x64 OLEDs
Serial.println(F("SSD1306 allocation failed"));
for (;;); // Don't proceed, loop forever
}
display.clearDisplay(); // Clear the buffer
display.setTextSize(1); // Set text size (1 = small, 2 = medium, etc.)
display.setTextColor(SSD1306_WHITE); // Set text color to white
display.setCursor(0, 0); // Set cursor position (x, y)
display.println(F("Hello, OLED!")); // Print text to the buffer
display.display(); // Display the buffer on the screen
}
void loop() {
// Nothing to do here
}
0x3C, but some modules use 0x3D.The display does not turn on.
The display shows random or no data.
The text or graphics appear distorted.
display.clearDisplay() before updating the screen to avoid overlapping data.The display flickers or dims.
Q: Can I use the OLED display with a 3.3V microcontroller?
A: Yes, most OLED modules are compatible with both 3.3V and 5V systems. Check the module's datasheet to confirm.
Q: How do I display custom graphics or images?
A: You can use tools like the Adafruit ImageConverter (online) to convert images into a bitmap array for use with the Adafruit_GFX library.
Q: Can I use the OLED display with other microcontrollers?
A: Yes, the OLED display can be used with other microcontrollers like ESP32, ESP8266, and Raspberry Pi. Ensure the appropriate libraries and connections are used.
Q: What is the lifespan of an OLED display?
A: The lifespan depends on usage and brightness settings. Typical OLED displays last around 10,000 to 50,000 hours. Lowering brightness can extend the lifespan.
