Introduction

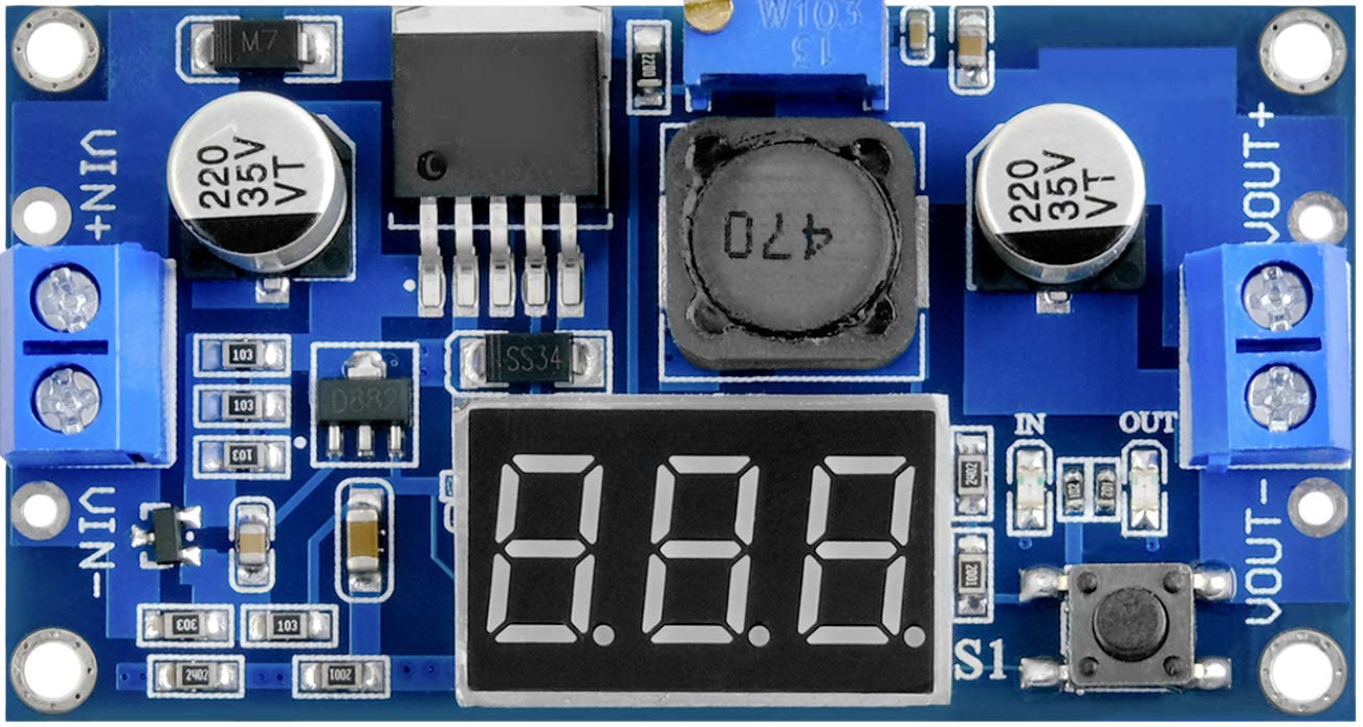

The Step Down Buck Converter by AC Delivery is a highly efficient DC-DC converter designed to step down voltage from a higher level to a lower level. This component is widely used in applications where power efficiency and precise voltage regulation are critical. By utilizing a switching element, an inductor, and a diode, the Buck Converter ensures minimal energy loss during the voltage conversion process.

Explore Projects Built with Step down Buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Step down Buck converter in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing Step down Buck converter in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing Step down Buck converter in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing Step down Buck converter in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Step down Buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing Step down Buck converter in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing Step down Buck converter in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing Step down Buck converter in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Step down Buck converter in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering low-voltage devices from higher-voltage sources (e.g., 12V to 5V conversion)
  • Battery-powered systems to regulate voltage levels
  • Embedded systems and microcontrollers
  • LED drivers and portable electronics
  • Renewable energy systems (e.g., solar panels)

Technical Specifications

The following table outlines the key technical details of the AC Delivery Step Down Buck Converter:

Parameter Value
Input Voltage Range 4.5V to 28V
Output Voltage Range 0.8V to 20V (adjustable)
Maximum Output Current 3A
Efficiency Up to 95%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 22mm x 17mm x 4mm

Pin Configuration and Descriptions

The Step Down Buck Converter typically has the following pin configuration:

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here (e.g., 12V).
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the stepped-down voltage to the load.
ADJ (optional) Adjustment pin. Used to set the output voltage (if adjustable).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage (VIN):

    • Attach the higher voltage source (e.g., a 12V battery or power supply) to the VIN pin.
    • Ensure the input voltage is within the specified range (4.5V to 28V).
  2. Connect the Ground (GND):

    • Connect the GND pin to the ground of your circuit.
  3. Connect the Output Voltage (VOUT):

    • Attach the load or device requiring the stepped-down voltage to the VOUT pin.
    • If the output voltage is adjustable, use the ADJ pin to fine-tune the voltage.
  4. Adjust the Output Voltage (if applicable):

    • Use a small screwdriver to turn the potentiometer (if present) on the module.
    • Measure the output voltage with a multimeter while adjusting to ensure accuracy.
  5. Power On the Circuit:

    • Once all connections are secure, power on the input voltage source.
    • Verify the output voltage with a multimeter before connecting sensitive devices.

Important Considerations and Best Practices

  • Heat Dissipation: Ensure proper ventilation or heat sinking if the converter operates at high currents.
  • Input Voltage Range: Do not exceed the maximum input voltage (28V) to avoid damage.
  • Load Requirements: Ensure the load does not draw more than the maximum output current (3A).
  • Ripple and Noise: Use additional capacitors at the input and output to reduce voltage ripple and noise.
  • Polarity: Double-check the polarity of connections to avoid damaging the module.

Example: Using the Buck Converter with an Arduino UNO

The Buck Converter can be used to power an Arduino UNO from a 12V source by stepping down the voltage to 5V.

Circuit Connections

  • Connect the 12V source to the VIN pin of the Buck Converter.
  • Connect the GND pin of the Buck Converter to the ground of the Arduino UNO.
  • Connect the VOUT pin of the Buck Converter to the 5V pin of the Arduino UNO.

Sample Code

Here is a simple Arduino sketch to blink an LED while powered by the Buck Converter:

// Blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the Buck Converter (5V output)

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Double-check all connections and ensure the input voltage is within the specified range.
  2. Overheating:

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Reduce the load current or add a heat sink to the module.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input power or high ripple.
    • Solution: Add capacitors to the input and output terminals to stabilize the voltage.
  4. Device Not Powering On:

    • Cause: Incorrect polarity or damaged module.
    • Solution: Verify the polarity of connections and replace the module if necessary.

FAQs

Q1: Can I use the Buck Converter to power a Raspberry Pi?
A1: Yes, but ensure the output voltage is set to 5V and the current rating meets the Raspberry Pi's requirements.

Q2: How do I adjust the output voltage?
A2: Use the onboard potentiometer (if available) to fine-tune the output voltage. Measure the voltage with a multimeter during adjustment.

Q3: Can the Buck Converter step up voltage?
A3: No, the Buck Converter is designed only to step down voltage. For stepping up voltage, use a Boost Converter.

Q4: Is the Buck Converter safe for sensitive electronics?
A4: Yes, but ensure proper filtering (e.g., capacitors) to minimize ripple and noise.

By following this documentation, users can effectively integrate the AC Delivery Step Down Buck Converter into their projects for efficient and reliable voltage regulation.
