The NodeMCU ESP8266 V3 is a low-cost, open-source IoT platform based on the ESP8266 Wi-Fi module. It is designed for rapid prototyping and development of IoT applications. This module features a built-in USB interface for easy programming and a variety of GPIO pins for connecting sensors, actuators, and other peripherals. Its compact design and integrated Wi-Fi capabilities make it an excellent choice for smart home devices, wireless sensor networks, and other IoT projects.
Explore Projects Built with nodemcu esp8266 v3
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to two pushbuttons and two servos. One pushbutton is connected to digital pin D0 and the other to D1, likely for input control. The servos are connected to digital pins D5 and D6 for PWM control signals, and all devices share a common ground. The 3V3 pin of the NodeMCU powers both servos, suggesting they operate at 3.3V. Without embedded code, the specific functionality cannot be determined, but the circuit is set up to use the pushbuttons to possibly control the servos' positions.
This is a smart lighting control system using a NodeMCU V3 ESP8266 microcontroller with WiFi and MQTT capabilities. It features an LDR sensor for ambient light detection and a relay for controlling an external load, with the ability to remotely monitor and switch the light based on ambient conditions or direct commands.
This circuit features a NodeMCU V3 ESP8266 microcontroller interfaced with an NRF24L01 wireless transceiver module for RF communication. A relay module is controlled by the NodeMCU to switch external loads, and a pushbutton is used to manually trigger the relay. The circuit includes a resistor and LED for indication purposes, and an electrolytic capacitor likely for power supply smoothing.
This circuit features a NodeMCU V3 ESP8266 microcontroller connected to a KY-019 Relay module for controlling power to a device, a DS3231 Real Time Clock (RTC) for timekeeping, and an LCM1602 IIC module interfaced with an LCD Display for user interface. The circuit is powered by a Mini AC-DC converter module that steps down AC mains to 5V, and the NodeMCU facilitates communication between the RTC, the relay, and the display, likely for scheduling and displaying the status of the connected device.
Smart home automation (e.g., controlling lights, fans, or appliances)
Wireless sensor networks for environmental monitoring
IoT-enabled devices for remote data collection
Prototyping Wi-Fi-enabled projects
Educational projects for learning about IoT and embedded systems
Technical Specifications
Key Technical Details
Parameter
Specification
Microcontroller
ESP8266 (Tensilica L106 32-bit RISC)
Operating Voltage
3.3V
Input Voltage (USB)
5V
Flash Memory
4MB
Clock Speed
80 MHz (can be overclocked to 160 MHz)
Wi-Fi Standard
802.11 b/g/n
GPIO Pins
11 (including ADC)
ADC Resolution
10-bit
Communication Interfaces
UART, SPI, I2C
USB Interface
Micro-USB
Dimensions
58mm x 31mm x 13mm

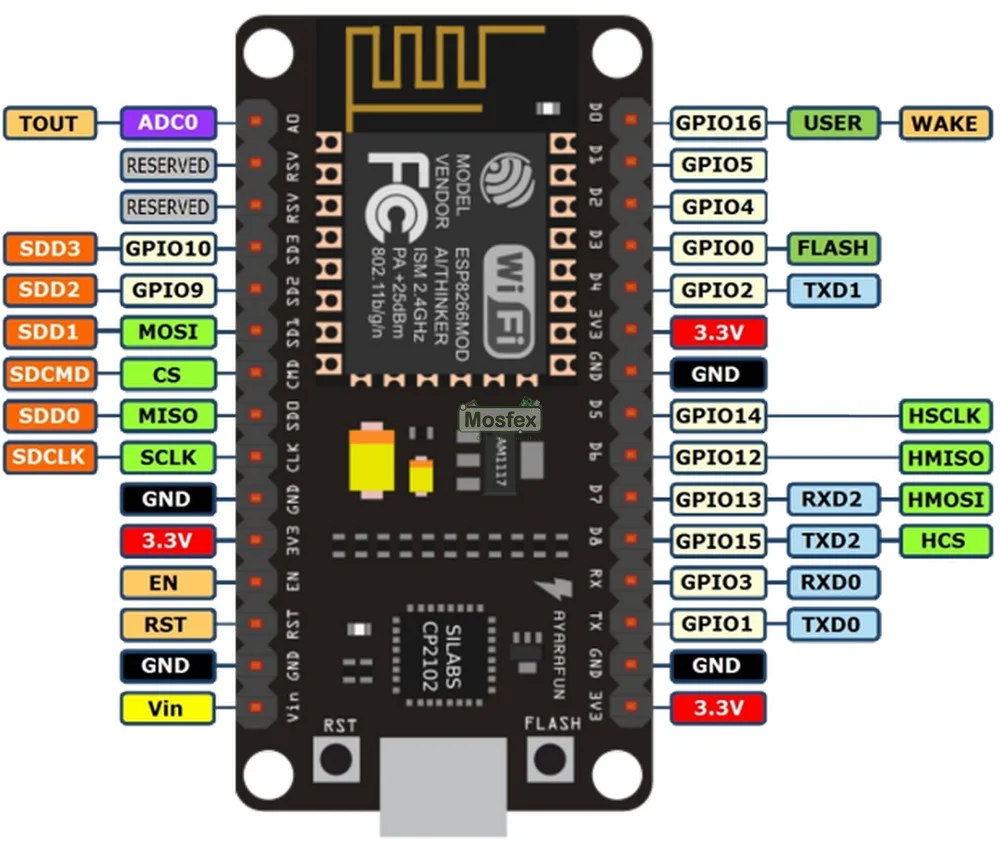

Pin Configuration and Descriptions
Pin Name
Pin Number
Description
VIN
-
Input voltage (5V) for powering the board
GND
-
Ground pin
3V3
-
3.3V output for powering external devices
D0-D8
GPIO Pins
General-purpose input/output pins
A0
ADC Pin
Analog input (0-3.3V)
RX
GPIO3
UART receive pin
TX
GPIO1
UART transmit pin
EN
-
Enable pin (active high)
RST
-
Reset pin (active low)
Usage Instructions
How to Use the NodeMCU ESP8266 V3 in a Circuit
Powering the Board:
Connect the NodeMCU to your computer via a micro-USB cable for power and programming.
Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.
Programming the Board:
Install the Arduino IDE and add the ESP8266 board package via the Board Manager.
Select "NodeMCU 1.0 (ESP-12E Module)" as the board in the Arduino IDE.
Connect the NodeMCU to your computer and select the appropriate COM port.
Write or upload your code to the board.
Connecting Sensors and Actuators:
Use the GPIO pins (D0-D8) to connect digital sensors or actuators.
For analog sensors, connect them to the A0 pin (ensure the input voltage does not exceed 3.3V).
Use pull-up or pull-down resistors as needed for stable operation.
Wi-Fi Configuration:
Use the built-in Wi-Fi module to connect to a network.
Configure the SSID and password in your code to establish a connection.
Important Considerations and Best Practices
Voltage Levels: Ensure that all connected devices operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
Power Supply: Use a stable power source to avoid unexpected resets or instability.
GPIO Limitations: Avoid using GPIO0, GPIO2, and GPIO15 for general purposes during boot as they affect the boot mode.
Heat Management: The ESP8266 can get warm during operation. Ensure proper ventilation if used in an enclosure.
Example Code for Arduino IDE
The following example demonstrates how to connect the NodeMCU ESP8266 V3 to a Wi-Fi network and control an LED connected to GPIO2.
#include <ESP8266WiFi.h> // Include the ESP8266 Wi-Fi library
// Replace with your network credentials
const char* ssid = "Your_SSID"; // Your Wi-Fi SSID
const char* password = "Your_PASSWORD"; // Your Wi-Fi password
// Define the GPIO pin for the LED
const int ledPin = 2; // GPIO2 (D4 on the NodeMCU)
void setup() {
// Initialize the serial monitor
Serial.begin(115200);
delay(10);
// Set the LED pin as an output
pinMode(ledPin, OUTPUT);
digitalWrite(ledPin, LOW); // Turn off the LED initially
// Connect to Wi-Fi
Serial.println("Connecting to Wi-Fi...");
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nWi-Fi connected!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP()); // Print the device's IP address
}
void loop() {
// Blink the LED
digitalWrite(ledPin, HIGH); // Turn on the LED
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn off the LED
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
The NodeMCU is not detected by the computer:
Ensure the USB cable is functional and supports data transfer.
Install the correct USB-to-serial driver (e.g., CH340 or CP2102) for your operating system.
Wi-Fi connection fails:
Double-check the SSID and password in your code.
Ensure the Wi-Fi network is within range and not using unsupported security protocols.
The board keeps resetting:
Verify that the power supply is stable and capable of providing sufficient current (at least 500mA).
Avoid using GPIO0, GPIO2, or GPIO15 improperly during boot.
Analog readings are inaccurate:
Ensure the input voltage to the A0 pin does not exceed 3.3V. Use a voltage divider if necessary.
FAQs
Q: Can I use the NodeMCU ESP8266 V3 with 5V sensors?
A: The NodeMCU operates at 3.3V logic levels. Use a level shifter to safely interface with 5V sensors.
Q: How do I reset the NodeMCU to factory settings?
A: Hold the RST pin low for a few seconds to reset the board. To erase the flash memory, use the "Erase Flash" option in the Arduino IDE.
Q: Can I use the NodeMCU as a standalone Wi-Fi access point?
A: Yes, the NodeMCU can operate in AP mode, allowing other devices to connect directly to it.
