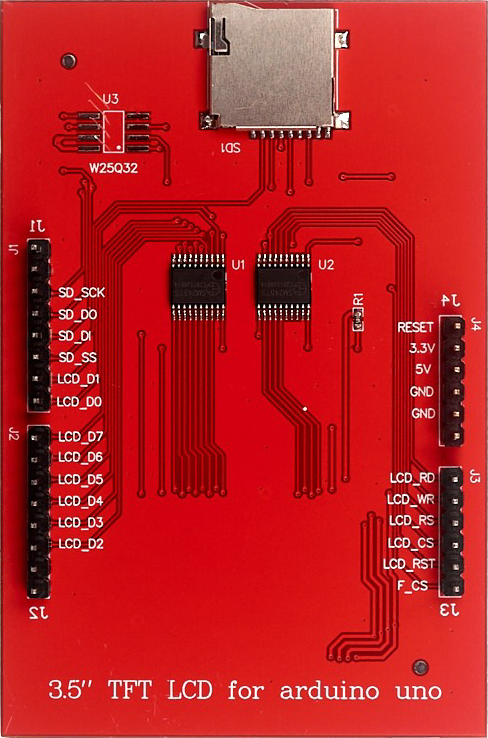

The LCD TFT 3.5'' 320x480 (Manufacturer: ESP32, Part ID: 30C) is a 3.5-inch Thin Film Transistor (TFT) LCD display with a resolution of 320x480 pixels. It is designed for use in embedded systems, offering a vibrant and high-resolution visual output. This display is ideal for applications requiring graphical interfaces, such as IoT devices, handheld systems, and DIY electronics projects.
Explore Projects Built with LCD TFT 3.5'' 320x480
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
This circuit interfaces an Arduino Nano with a 3.5-inch TFT LCD Shield, allowing the Arduino to control the display and read/write data to it. The connections include data lines, control signals, and power, enabling the Arduino to drive the LCD for various display applications.
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
The LCD TFT 3.5'' 320x480 typically uses a 40-pin interface. Below is a table of the most commonly used pins:
Pin Number
Pin Name
Description
1
GND
Ground
2
VCC
Power supply (3.3V)
3
CS
Chip Select (Active Low)
4
RESET
Reset signal (Active Low)
5
DC/RS
Data/Command control pin
6
SDI/MOSI
Serial Data Input / Master Out Slave In
7
SCK
Serial Clock
8
LED
Backlight control (connect to 3.3V or PWM pin)
9
T_IRQ
Touchscreen interrupt (if touchscreen is used)
10
T_CS
Touchscreen chip select (if touchscreen is used)
11
T_SCK
Touchscreen clock (if touchscreen is used)
12
T_MISO
Touchscreen data output (if touchscreen is used)
13
T_MOSI
Touchscreen data input (if touchscreen is used)
Note: Pin configurations may vary slightly depending on the specific module. Always refer to the datasheet provided by the manufacturer.
Usage Instructions
How to Use the Component in a Circuit
Power Supply: Connect the VCC pin to a 3.3V power source and GND to ground.
SPI Communication: Connect the SPI pins (CS, SCK, MOSI, and optionally MISO) to the corresponding SPI pins on your microcontroller.
Backlight Control: Connect the LED pin to 3.3V for constant backlight or to a PWM pin for adjustable brightness.
Touchscreen (Optional): If using the touchscreen feature, connect the T_CS, T_IRQ, T_SCK, T_MISO, and T_MOSI pins to your microcontroller.
Initialization: Use a compatible library (e.g., TFT_eSPI for ESP32) to initialize and control the display.
Important Considerations and Best Practices
Voltage Levels: Ensure all signal lines operate at 3.3V logic levels. Use level shifters if your microcontroller operates at 5V.
SPI Speed: Configure the SPI clock speed appropriately. A typical value is 40 MHz, but this may vary depending on the module.
Library Support: Use a well-documented library like TFT_eSPI or Adafruit_GFX for easier integration.
Cooling: If the display is used in high-temperature environments, ensure proper ventilation to avoid overheating.
Example Code for Arduino UNO with ESP32
Below is an example of how to use the LCD TFT 3.5'' 320x480 with an ESP32 microcontroller:
#include <TFT_eSPI.h> // Include the TFT_eSPI library
TFT_eSPI tft = TFT_eSPI(); // Create an instance of the TFT_eSPI class
void setup() {
tft.init(); // Initialize the display
tft.setRotation(1); // Set display orientation (0-3)
tft.fillScreen(TFT_BLACK); // Clear the screen with black color
// Display a message
tft.setTextColor(TFT_WHITE, TFT_BLACK); // Set text color (foreground, background)
tft.setTextSize(2); // Set text size
tft.setCursor(10, 10); // Set cursor position
tft.println("Hello, World!"); // Print text to the screen
}
void loop() {
// Add your code here for dynamic updates
}
Note: Ensure the User_Setup.h file in the TFT_eSPI library is configured for your specific display module.
Troubleshooting and FAQs
Common Issues and Solutions
Display Not Turning On:
Verify the power connections (VCC and GND).
Check if the backlight (LED pin) is connected properly.
No Output on the Screen:
Ensure the SPI connections (CS, SCK, MOSI, etc.) are correct.
Confirm that the display initialization code matches your module's configuration.
Touchscreen Not Responding:
Verify the touchscreen pins (T_CS, T_IRQ, etc.) are connected correctly.
Check if the touchscreen library is included and initialized properly.
Flickering or Distorted Display:
Reduce the SPI clock speed in your code.
Ensure proper grounding and minimize noise in the circuit.
FAQs
Q: Can this display work with 5V microcontrollers?
A: The display operates at 3.3V logic levels. Use level shifters for compatibility with 5V microcontrollers.
Q: Is the touchscreen mandatory to use?
A: No, the touchscreen is optional. You can use the display without connecting the touchscreen pins.
Q: What is the maximum SPI clock speed supported?
A: The typical maximum SPI clock speed is 40 MHz, but this may vary depending on the specific module.
Q: Can I use this display with platforms other than ESP32?
A: Yes, this display can be used with other microcontrollers like Arduino, STM32, and Raspberry Pi, provided the appropriate libraries and configurations are used.
