How to Use ESP32 WROOM CHIP: Examples, Pinouts, and Specs

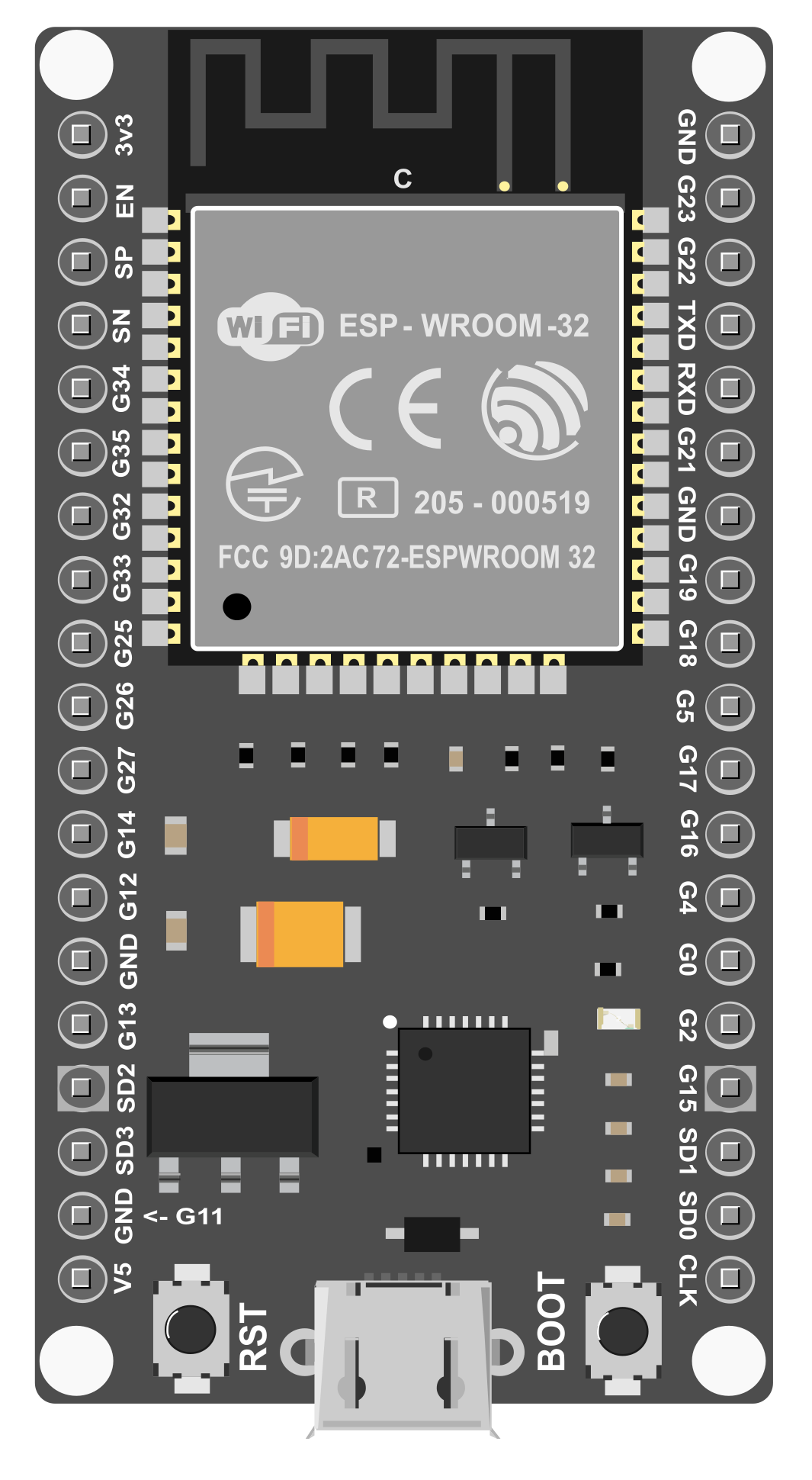

Image of ESP32 WROOM CHIP
Cirkit Designer LogoDesign with ESP32 WROOM CHIP in Cirkit Designer

Introduction

The ESP32 WROOM CHIP is a powerful microcontroller module that integrates Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications. It is designed for projects requiring wireless connectivity, high processing power, and energy efficiency. The ESP32 WROOM is widely used in smart home devices, wearable electronics, industrial automation, and other embedded systems.

Explore Projects Built with ESP32 WROOM CHIP

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32 WROOM CHIP in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing ESP32 WROOM CHIP in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and SD Card Module Data Logger with Wi-Fi Connectivity
Image of ESP-32 SD Circuit Diagram : A project utilizing ESP32 WROOM CHIP in a practical application
This circuit connects an ESP32 Wroom Dev Kit to an SD card module, enabling the ESP32 to read from and write to the SD card. The ESP32 provides power to the SD card module and communicates with it using SPI protocol through GPIO pins 23 (MOSI), 19 (MISO), 18 (SCK), and 5 (CS).
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based SD Card Data Logger
Image of Data Logging: A project utilizing ESP32 WROOM CHIP in a practical application
This circuit connects an ESP32 Wroom Dev Kit microcontroller to a Micro SD Card Module for data storage purposes. The ESP32 is configured to communicate with the SD card using the SPI protocol, as indicated by the connections of MOSI, MISO, SCK, and CS pins. A separate Vcc component provides power to the SD card module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 WROOM CHIP

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP32 WROOM CHIP in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing ESP32 WROOM CHIP in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP-32 SD Circuit Diagram : A project utilizing ESP32 WROOM CHIP in a practical application
ESP32 and SD Card Module Data Logger with Wi-Fi Connectivity
This circuit connects an ESP32 Wroom Dev Kit to an SD card module, enabling the ESP32 to read from and write to the SD card. The ESP32 provides power to the SD card module and communicates with it using SPI protocol through GPIO pins 23 (MOSI), 19 (MISO), 18 (SCK), and 5 (CS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Data Logging: A project utilizing ESP32 WROOM CHIP in a practical application
ESP32-Based SD Card Data Logger
This circuit connects an ESP32 Wroom Dev Kit microcontroller to a Micro SD Card Module for data storage purposes. The ESP32 is configured to communicate with the SD card using the SPI protocol, as indicated by the connections of MOSI, MISO, SCK, and CS pins. A separate Vcc component provides power to the SD card module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Industrial control systems
  • Robotics and drones
  • Real-time data monitoring and logging

Technical Specifications

The ESP32 WROOM CHIP is built around the ESP32-D0WDQ6 microcontroller, which features dual-core processing and a rich set of peripherals. Below are the key technical details:

Key Specifications

Parameter Value
Microcontroller ESP32-D0WDQ6
CPU Dual-core Xtensa® 32-bit LX6 @ 240 MHz
Flash Memory 4 MB (default, varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 BR/EDR
Operating Voltage 3.0V - 3.6V
GPIO Pins 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The ESP32 WROOM CHIP has 38 pins, with the most commonly used pins described below:

Pin Number Pin Name Function
1 EN Chip enable (active high)
2 IO0 GPIO0, used for boot mode selection
3 IO2 GPIO2, ADC2 channel
4 IO4 GPIO4, ADC2 channel
5 IO5 GPIO5, ADC2 channel, PWM capable
6 IO12 GPIO12, ADC2 channel, touch sensor
7 IO13 GPIO13, ADC2 channel, touch sensor
8 IO14 GPIO14, ADC2 channel, PWM capable
9 IO15 GPIO15, ADC2 channel, PWM capable
10 IO16 GPIO16, UART RX
11 IO17 GPIO17, UART TX
12 GND Ground
13 3V3 3.3V power supply

For a complete pinout, refer to the ESP32 WROOM datasheet.

Usage Instructions

How to Use the ESP32 WROOM CHIP in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Avoid exceeding 3.6V to prevent damage.
  2. Boot Mode: To upload code, connect GPIO0 to GND during reset. Disconnect GPIO0 from GND after uploading.
  3. Programming: Use the UART interface (TX/RX pins) to program the ESP32 WROOM CHIP via a USB-to-serial adapter.
  4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Use appropriate pull-up or pull-down resistors as needed.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all GPIO pins operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.
  • Power Management: Utilize the ESP32's deep sleep mode to reduce power consumption in battery-powered applications.
  • Heat Dissipation: If running at high processing loads, ensure proper ventilation to prevent overheating.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 WROOM CHIP with the Arduino IDE to connect to a Wi-Fi network:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a second to stabilize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi

    • Ensure the SSID and password are correct.
    • Check if the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).
    • Verify that the power supply is stable and sufficient.
  2. Code Upload Fails

    • Ensure GPIO0 is connected to GND during the upload process.
    • Check the USB-to-serial adapter drivers on your computer.
    • Verify the correct COM port and board settings in the Arduino IDE.
  3. Random Resets or Crashes

    • Check for power supply issues or voltage drops.
    • Avoid using GPIO pins that are reserved for internal functions (e.g., GPIO6-GPIO11).

FAQs

Q: Can the ESP32 WROOM CHIP operate on 5V?
A: No, the ESP32 WROOM CHIP operates at 3.3V. Applying 5V to its pins can damage the module.

Q: How do I enable deep sleep mode?
A: Use the esp_deep_sleep_start() function in your code. Connect GPIO16 to the RESET pin for wake-up functionality.

Q: Can I use the ESP32 WROOM CHIP with Bluetooth and Wi-Fi simultaneously?
A: Yes, the ESP32 supports simultaneous use of Bluetooth and Wi-Fi, but performance may vary depending on the workload.

This concludes the documentation for the ESP32 WROOM CHIP. For further details, refer to the official datasheet and programming guides.
