How to Use Inverter: Examples, Pinouts, and Specs

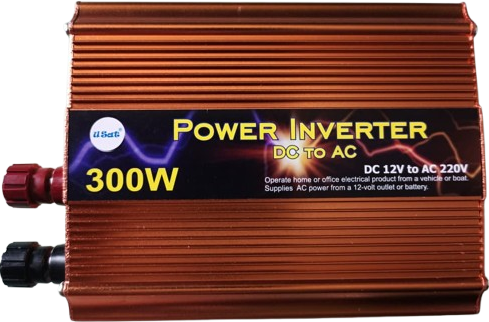

Image of Inverter
Cirkit Designer LogoDesign with Inverter in Cirkit Designer

Introduction

An inverter is an electronic device that converts direct current (DC) into alternating current (AC). This conversion allows DC power sources, such as batteries or solar panels, to power AC devices, including household appliances, industrial equipment, and other electronics. Inverters are essential in renewable energy systems, uninterruptible power supplies (UPS), and portable power solutions.

Explore Projects Built with Inverter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Battery Backup System with Automatic Transfer Switch and AC Outlet
Image of last: A project utilizing Inverter in a practical application
This circuit is designed to harness solar energy, regulate its storage, and convert it for use in standard AC appliances. A solar panel charges a 12V battery through a charge controller, which ensures safe charging and discharging of the battery. The power inverter then converts the stored DC power from the battery into AC power, which is supplied to a 120V outlet through an Automatic Transfer Switch (ATS), ensuring power continuity and safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Inverter
Image of EBT: A project utilizing Inverter in a practical application
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V battery, and a power inverter. The solar panel generates electricity, which is regulated by the solar charge controller to charge the 12V battery. The power inverter converts the stored DC power from the battery into AC power for use with AC devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing Inverter in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Power Inverter
Image of Design project, solar connection: A project utilizing Inverter in a practical application
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V 7Ah battery, and a power inverter. The solar panel charges the battery through the charge controller, and the stored energy in the battery is then converted to AC power by the inverter for use with AC loads.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Inverter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of last: A project utilizing Inverter in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch and AC Outlet
This circuit is designed to harness solar energy, regulate its storage, and convert it for use in standard AC appliances. A solar panel charges a 12V battery through a charge controller, which ensures safe charging and discharging of the battery. The power inverter then converts the stored DC power from the battery into AC power, which is supplied to a 120V outlet through an Automatic Transfer Switch (ATS), ensuring power continuity and safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EBT: A project utilizing Inverter in a practical application
Solar-Powered Battery Charging System with Inverter
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V battery, and a power inverter. The solar panel generates electricity, which is regulated by the solar charge controller to charge the 12V battery. The power inverter converts the stored DC power from the battery into AC power for use with AC devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing Inverter in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Design project, solar connection: A project utilizing Inverter in a practical application
Solar-Powered Battery Charging System with Power Inverter
This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V 7Ah battery, and a power inverter. The solar panel charges the battery through the charge controller, and the stored energy in the battery is then converted to AC power by the inverter for use with AC loads.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Renewable Energy Systems: Converts DC from solar panels or wind turbines into AC for home or grid use.
  • Uninterruptible Power Supplies (UPS): Provides backup AC power during outages.
  • Portable Power Systems: Powers AC devices using batteries in off-grid or mobile setups.
  • Electric Vehicles (EVs): Converts DC from the battery to AC for motor operation.
  • Industrial Applications: Drives AC motors and other equipment from DC sources.

Technical Specifications

Below are the general technical specifications for a typical inverter. Note that specific values may vary depending on the model and manufacturer.

General Specifications

Parameter Value/Range Description
Input Voltage (DC) 12V, 24V, 48V, or higher Voltage range of the DC power source.
Output Voltage (AC) 110V or 220V RMS Standard AC output voltage.
Output Frequency 50Hz or 60Hz Frequency of the AC output.
Output Waveform Pure Sine Wave, Modified Sine Wave, or Square Wave Type of AC waveform generated.
Efficiency 85%–95% Conversion efficiency from DC to AC.
Power Rating 100W to several kW Maximum power output capacity.
Protection Features Overload, Short Circuit, Overheat, Low Battery Safety mechanisms.

Pin Configuration and Descriptions

Inverters typically have input and output terminals or connectors. Below is a general description of these connections:

Pin/Terminal Name Description
DC+ (Positive Input) Connects to the positive terminal of the DC source.
DC- (Negative Input) Connects to the negative terminal of the DC source.
AC Output (Live) Provides the live AC output.
AC Output (Neutral) Provides the neutral AC output.
Ground (Optional) Connects to the system ground for safety.

Usage Instructions

How to Use the Inverter in a Circuit

  1. Connect the DC Input:

    • Ensure the DC source (e.g., battery) matches the inverter's input voltage rating.
    • Connect the positive terminal of the DC source to the DC+ input and the negative terminal to the DC- input.
  2. Connect the AC Output:

    • Connect the AC output terminals to the load (e.g., an appliance or device).
    • Ensure the load's power rating does not exceed the inverter's maximum power capacity.
  3. Power On the Inverter:

    • Turn on the inverter using its power switch or control mechanism.
    • Verify that the output voltage and frequency match the requirements of the connected load.
  4. Monitor Operation:

    • Use any built-in indicators (e.g., LEDs or displays) to monitor the inverter's status.
    • Ensure the inverter operates within its specified limits to avoid damage.

Important Considerations and Best Practices

  • Match Voltage Ratings: Always ensure the DC input voltage matches the inverter's specifications.
  • Avoid Overloading: Do not connect loads that exceed the inverter's power rating.
  • Use Proper Wiring: Use appropriately rated cables to handle the current and prevent overheating.
  • Ventilation: Place the inverter in a well-ventilated area to prevent overheating.
  • Grounding: If the inverter has a ground terminal, connect it to a proper earth ground for safety.
  • Battery Protection: Use a fuse or circuit breaker between the battery and inverter to protect against short circuits.

Example: Connecting an Inverter to an Arduino UNO

Inverters are not directly connected to microcontrollers like the Arduino UNO. However, you can use an Arduino to control an inverter via a relay or other switching mechanism. Below is an example of using an Arduino to control an inverter's power state:

// Example: Controlling an inverter using an Arduino and a relay module
// This code toggles the inverter ON and OFF using a digital pin.

const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is OFF initially
}

void loop() {
  // Turn the inverter ON
  digitalWrite(relayPin, HIGH); // Activate the relay
  delay(5000); // Keep the inverter ON for 5 seconds

  // Turn the inverter OFF
  digitalWrite(relayPin, LOW); // Deactivate the relay
  delay(5000); // Keep the inverter OFF for 5 seconds
}

Note: Ensure the relay module is rated for the inverter's power requirements. Never connect the Arduino directly to the inverter's high-voltage AC output.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
Inverter does not turn on Insufficient DC input voltage Check the DC source and connections.
No AC output Overload or short circuit protection triggered Reduce the load and reset the inverter.
Overheating Poor ventilation or excessive load Ensure proper airflow and reduce the load.
Low battery warning Battery voltage is too low Recharge or replace the battery.
Noise or interference in output Poor quality waveform (e.g., modified sine wave) Use a pure sine wave inverter.

FAQs

  1. Can I connect an inverter directly to a solar panel?

    • Only if the inverter is designed for direct solar panel input. Otherwise, use a charge controller and battery.
  2. What is the difference between pure sine wave and modified sine wave inverters?

    • Pure sine wave inverters produce a smooth AC waveform, suitable for sensitive electronics. Modified sine wave inverters are less expensive but may cause issues with certain devices.
  3. How do I calculate the battery capacity needed for my inverter?

    • Use the formula: Battery Capacity (Ah) = (Load Power (W) × Backup Time (hours)) / Battery Voltage (V).
  4. Can I use an inverter with an Arduino?

    • Yes, but only indirectly via a relay or similar control mechanism. Never connect the Arduino directly to the inverter's AC output.

By following this documentation, you can safely and effectively use an inverter in your projects and applications.
