How to Use 32mm 8x8 dot matrix row cathode LED display: Examples, Pinouts, and Specs

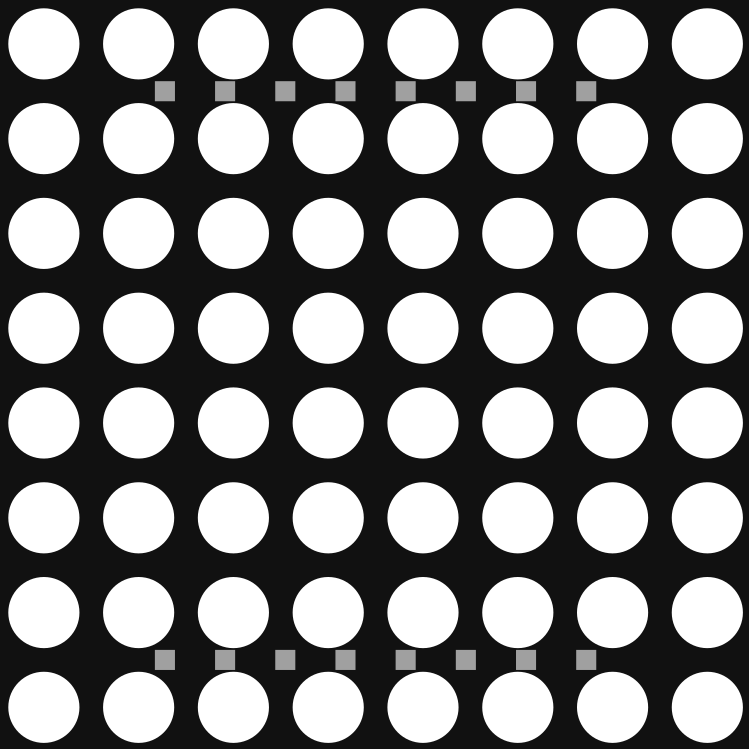

The 32mm 8x8 dot matrix row cathode LED display is a compact and versatile component designed for visual output in electronic projects. It consists of an 8x8 grid of light-emitting diodes (LEDs), where each row shares a common cathode connection. This display is ideal for rendering alphanumeric characters, symbols, and simple graphics. Its small size and straightforward design make it a popular choice for hobbyists and professionals alike.

• Digital clocks and timers
• Scrolling text displays
• Simple animations and graphics
• Status indicators in embedded systems
• Educational projects and prototyping

Below are the key technical details of the 32mm 8x8 dot matrix row cathode LED display:

The 32mm 8x8 dot matrix display has 16 pins, with 8 pins controlling the rows (cathodes) and 8 pins controlling the columns (anodes). Below is the pin mapping:

1. Power Requirements: Ensure that the LEDs are powered within their operating voltage range (2.0V - 2.2V). Use current-limiting resistors (typically 220Ω to 330Ω) to prevent overdriving the LEDs.
2. Driving the Display: Use a microcontroller (e.g., Arduino UNO) or a dedicated LED driver IC (e.g., MAX7219) to control the rows and columns. Multiplexing is required to light up individual LEDs.
3. Wiring: Connect the row cathodes to the microcontroller's output pins or driver IC. Similarly, connect the column anodes to the corresponding control pins. Use transistors if additional current amplification is needed.

Below is an example of how to control the 32mm 8x8 dot matrix display using an Arduino UNO and multiplexing:

• Connect the row cathodes (pins 1-8) to Arduino digital pins 2-9.
• Connect the column anodes (pins 9-16) to Arduino digital pins 10-13 and A0-A3.
• Use 220Ω resistors in series with the column anodes to limit current.

// Define row and column pins
const int rowPins[8] = {2, 3, 4, 5, 6, 7, 8, 9}; // Row cathodes
const int colPins[8] = {10, 11, 12, 13, A0, A1, A2, A3}; // Column anodes

void setup() {
  // Set all row and column pins as outputs
  for (int i = 0; i < 8; i++) {
    pinMode(rowPins[i], OUTPUT);
    pinMode(colPins[i], OUTPUT);
  }
}

void loop() {
  // Example: Light up a single LED at row 1, column 1
  for (int i = 0; i < 8; i++) {
    digitalWrite(rowPins[i], HIGH); // Turn off all rows
  }
  digitalWrite(rowPins[0], LOW); // Enable row 1 (active LOW)
  digitalWrite(colPins[0], HIGH); // Enable column 1 (active HIGH)
  delay(500); // Keep the LED on for 500ms

  // Turn off the LED
  digitalWrite(rowPins[0], HIGH);
  digitalWrite(colPins[0], LOW);
  delay(500); // Wait for 500ms
}

• Multiplexing: Since only one row or column can be active at a time, multiplexing is necessary to display multiple LEDs simultaneously. This is typically handled in software or by using an LED driver IC.
• Current Limiting: Always use resistors to limit the current through the LEDs to prevent damage.
• Brightness Control: Use pulse-width modulation (PWM) to adjust the brightness of the LEDs.

1. No LEDs Light Up:

   • Check the wiring and ensure all connections are secure.
   • Verify that the microcontroller or driver IC is functioning correctly.
   • Ensure the current-limiting resistors are properly connected.

2. Dim LEDs:

   • Verify that the power supply provides sufficient current.
   • Check the resistor values; they may be too high.

3. Incorrect LED Lighting:

   • Double-check the pin mapping and ensure the correct rows and columns are being activated.
   • Inspect for short circuits or loose connections.

4. Flickering LEDs:

   • Ensure proper multiplexing timing in the code.
   • Verify that the microcontroller's clock speed is sufficient for the desired refresh rate.

Q: Can I use this display with a MAX7219 driver IC?
A: Yes, the MAX7219 is a popular choice for driving 8x8 LED matrices. It simplifies wiring and multiplexing.

Q: How do I display characters or scrolling text?
A: Use libraries like the "LedControl" library for Arduino, which provides functions for displaying characters and animations.

Q: Can I use this display with a 3.3V microcontroller?
A: Yes, but ensure the LEDs receive sufficient forward voltage. You may need to adjust resistor values accordingly.

Q: What is the maximum refresh rate for this display?
A: The refresh rate depends on the microcontroller's processing speed and the multiplexing algorithm. Typically, a refresh rate of 60Hz or higher is sufficient to avoid flickering.
