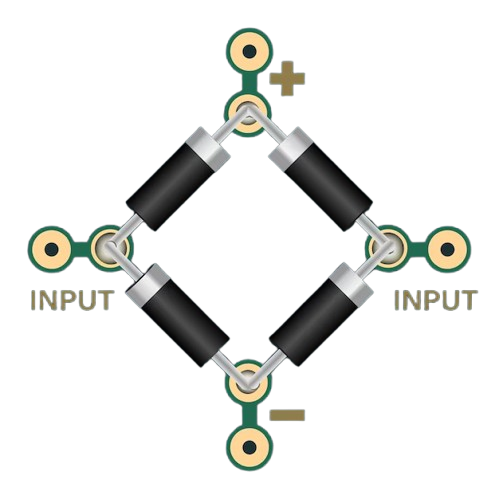

Image of BRIDGE - 1N4007
Cirkit Designer LogoDesign with BRIDGE - 1N4007 in Cirkit Designer

Introduction

The 1N4007 is a silicon rectifier diode designed for general-purpose applications. It is capable of withstanding a maximum reverse voltage of 1000V and can handle a forward current of up to 1A. This diode is widely used in power supply circuits for converting alternating current (AC) to direct current (DC). Its robust design and high voltage rating make it suitable for a variety of electronic projects, including rectification, voltage clamping, and freewheeling diode applications.

Explore Projects Built with BRIDGE - 1N4007

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
NPN Transistor-Based Signal Interface with Relimate Connectors
Image of Mini cross: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Piezo Sensor-Based LED Indicator with Pushbutton Control
Image of project: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a rectifier and indicator system that uses multiple 1N4007 diodes to rectify an AC signal, a piezo sensor for signal detection, and a pushbutton to control the circuit. The rectified signal is filtered by an electrolytic capacitor and a resistor, and the presence of the signal is indicated by a blue LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Voltage Regulation and LED Indicator
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a basic AC to DC power supply with voltage regulation. It includes a transformer to step down the AC voltage, a bridge rectifier made of 1N4007 diodes to convert AC to DC, an electrolytic capacitor for smoothing, and a voltage regulator to provide a stable DC output. An LED with a current-limiting resistor indicates the presence of the output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BRIDGE - 1N4007

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini cross: A project utilizing BRIDGE - 1N4007 in a practical application
NPN Transistor-Based Signal Interface with Relimate Connectors
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing BRIDGE - 1N4007 in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project: A project utilizing BRIDGE - 1N4007 in a practical application
Piezo Sensor-Based LED Indicator with Pushbutton Control
This circuit is a rectifier and indicator system that uses multiple 1N4007 diodes to rectify an AC signal, a piezo sensor for signal detection, and a pushbutton to control the circuit. The rectified signal is filtered by an electrolytic capacitor and a resistor, and the presence of the signal is indicated by a blue LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing BRIDGE - 1N4007 in a practical application
AC to DC Power Supply with Voltage Regulation and LED Indicator
This circuit is a basic AC to DC power supply with voltage regulation. It includes a transformer to step down the AC voltage, a bridge rectifier made of 1N4007 diodes to convert AC to DC, an electrolytic capacitor for smoothing, and a voltage regulator to provide a stable DC output. An LED with a current-limiting resistor indicates the presence of the output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • AC to DC rectification in power supplies
  • Protection against voltage spikes in inductive loads
  • Freewheeling diodes in motor control circuits
  • Voltage clamping in transient suppression circuits

Technical Specifications

Below are the key technical details of the 1N4007 diode:

Parameter Value
Maximum Reverse Voltage 1000V
Maximum Forward Current 1A
Peak Surge Current 30A (8.3ms single half-sine)
Forward Voltage Drop 1.1V (at 1A)
Reverse Current 5µA (at 25°C)
Operating Temperature -55°C to +150°C
Package Type DO-41 (Axial Lead)

Pin Configuration:

The 1N4007 diode has two terminals:

Pin Description
Anode Positive terminal (current enters)
Cathode Negative terminal (current exits)

The cathode is marked with a silver or white band on the diode body.

Usage Instructions

How to Use the 1N4007 in a Circuit

The 1N4007 is typically used in rectifier circuits to convert AC to DC. Below is a step-by-step guide for using the diode:

  1. Identify the Terminals: Locate the cathode (marked with a silver/white band) and the anode.
  2. Connect in the Correct Direction: Ensure the anode is connected to the positive side of the circuit and the cathode to the negative side.
  3. Use in a Rectifier Circuit: For a full-wave rectifier, use four 1N4007 diodes in a bridge configuration. For a half-wave rectifier, use a single diode.
  4. Add a Filter Capacitor: To smooth the rectified DC output, connect a capacitor in parallel with the load.

Example: Full-Wave Rectifier Circuit

Below is an example of a full-wave rectifier circuit using four 1N4007 diodes:

AC Input ---->|----+---->|----+
              D1        D2    |
                              |
                              +---- DC Output
                              |
AC Input ---->|----+---->|----+
              D3        D4    |

Important Considerations:

  • Heat Dissipation: Ensure proper heat dissipation if the diode operates near its maximum current rating.
  • Voltage Rating: Do not exceed the maximum reverse voltage of 1000V.
  • Polarity: Incorrect polarity can damage the diode or the circuit.

Arduino Example: Using 1N4007 for Flyback Diode Protection

The 1N4007 can be used as a flyback diode to protect an Arduino from voltage spikes when controlling a relay or motor. Below is an example:

// Example: Using 1N4007 as a flyback diode with a relay

int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn relay ON
  delay(1000);                  // Wait for 1 second
  digitalWrite(relayPin, LOW);  // Turn relay OFF
  delay(1000);                  // Wait for 1 second
}

/*
 * Connect the 1N4007 diode across the relay coil:
 * - Cathode (marked with a band) to the positive terminal of the coil
 * - Anode to the negative terminal of the coil
 * This protects the Arduino from voltage spikes when the relay is turned off.
 */

Troubleshooting and FAQs

Common Issues:

  1. Diode Overheating:

    • Cause: Exceeding the maximum forward current or insufficient heat dissipation.
    • Solution: Use a heatsink or ensure the current is within the diode's rating.
  2. No Output in Rectifier Circuit:

    • Cause: Incorrect diode orientation.
    • Solution: Verify the anode and cathode connections.
  3. High Reverse Leakage Current:

    • Cause: Operating the diode at high temperatures.
    • Solution: Ensure proper cooling and operate within the specified temperature range.
  4. Damaged Diode:

    • Cause: Exceeding the reverse voltage rating.
    • Solution: Use a diode with a higher voltage rating if necessary.

FAQs:

Q1: Can the 1N4007 be used for high-frequency applications?
A1: No, the 1N4007 is not suitable for high-frequency applications due to its slow recovery time. Use a fast recovery or Schottky diode instead.

Q2: What is the difference between the 1N4007 and other diodes in the 1N400x series?
A2: The primary difference is the maximum reverse voltage rating. The 1N4007 has the highest rating (1000V) in the series.

Q3: Can I use the 1N4007 for a 12V DC circuit?
A3: Yes, the 1N4007 can handle 12V DC easily, as it is well within its voltage and current ratings.

Q4: How do I test if a 1N4007 diode is working?
A4: Use a multimeter in diode mode. Connect the positive probe to the anode and the negative probe to the cathode. A forward voltage drop of ~0.7V indicates the diode is functional. Reverse the probes to check for no conduction in the reverse direction.

By following this documentation, you can effectively use the 1N4007 diode in your electronic projects!
