How to Use 555 Timer: Examples, Pinouts, and Specs

The 555 Timer, manufactured by IK Semicon, is a versatile and widely used integrated circuit designed for generating precise timing, oscillation, and pulse-width modulation (PWM). It can operate in three primary modes: monostable (one-shot), astable (oscillator), and bistable (flip-flop). This flexibility makes the 555 Timer suitable for a wide range of applications, including timers, pulse generators, frequency dividers, and more.

• Time delay generation
• Pulse-width modulation (PWM) control
• Square wave oscillators
• Frequency generation and division
• LED flashers and light controllers
• Debouncing switches
• Tone generation in audio circuits

Below are the key technical details of the IK Semicon 555 Timer:

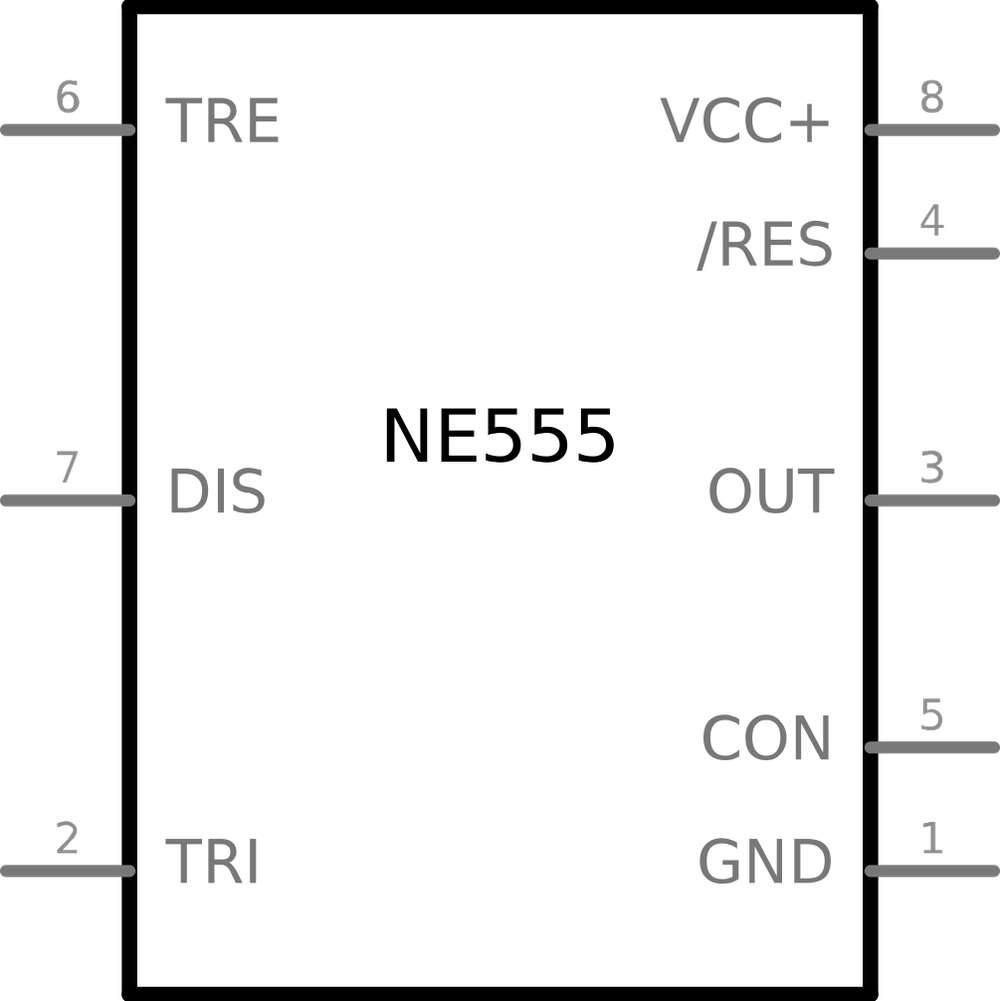

The 555 Timer is an 8-pin IC. Below is the pinout and description:

The 555 Timer can be configured in different modes depending on the application. Below are instructions for using it in two common modes: monostable and astable.

In monostable mode, the 555 Timer generates a single pulse of a specific duration when triggered. The pulse width is determined by an external resistor (R) and capacitor (C).

1. Connect Pin 1 (GND) to ground and Pin 8 (VCC) to the power supply.
2. Connect a resistor (R) between Pin 7 (DISCH) and Pin 8 (VCC).
3. Connect a capacitor (C) between Pin 6 (THR) and ground.
4. Connect Pin 6 (THR) to Pin 2 (TRIG).
5. Apply a trigger pulse to Pin 2 (TRIG) to start the timing cycle.
6. The output pulse will appear on Pin 3 (OUT).

[ T = 1.1 \times R \times C ] Where:

• ( T ) = Pulse width in seconds
• ( R ) = Resistance in ohms
• ( C ) = Capacitance in farads

In astable mode, the 555 Timer generates a continuous square wave. The frequency and duty cycle are determined by two resistors (R1, R2) and a capacitor (C).

1. Connect Pin 1 (GND) to ground and Pin 8 (VCC) to the power supply.
2. Connect a resistor (R1) between Pin 7 (DISCH) and Pin 8 (VCC).
3. Connect a resistor (R2) between Pin 7 (DISCH) and Pin 6 (THR).
4. Connect a capacitor (C) between Pin 6 (THR) and ground.
5. Connect Pin 6 (THR) to Pin 2 (TRIG).
6. The output square wave will appear on Pin 3 (OUT).

• Frequency: [ f = \frac{1.44}{(R1 + 2R2) \times C} ]
• Duty Cycle: [ \text{Duty Cycle} = \frac{R1 + R2}{R1 + 2R2} \times 100% ]

The 555 Timer can be used alongside an Arduino UNO for various applications. Below is an example of controlling an LED using the 555 Timer in astable mode.

1. Connect the 555 Timer in astable mode as described above.
2. Connect the output (Pin 3) of the 555 Timer to a digital input pin on the Arduino (e.g., Pin 2).
3. Connect an LED to another digital pin on the Arduino (e.g., Pin 13) with a current-limiting resistor.

// Define pins
const int timerPin = 2;  // Input pin connected to 555 Timer output
const int ledPin = 13;   // Output pin connected to LED

void setup() {
  pinMode(timerPin, INPUT);  // Set timerPin as input
  pinMode(ledPin, OUTPUT);   // Set ledPin as output
}

void loop() {
  // Read the state of the 555 Timer output
  int timerState = digitalRead(timerPin);

  // Control the LED based on the timer state
  if (timerState == HIGH) {
    digitalWrite(ledPin, HIGH);  // Turn LED on
  } else {
    digitalWrite(ledPin, LOW);   // Turn LED off
  }
}

1. No Output Signal:

   • Ensure the power supply voltage is within the specified range (4.5V to 16V).
   • Verify all connections, especially the resistor and capacitor values.
   • Check if the RESET pin (Pin 4) is connected to VCC (logic high).

2. Incorrect Timing or Frequency:

   • Double-check the resistor and capacitor values used in the circuit.
   • Ensure the connections to the TRIG, THR, and DISCH pins are correct.

3. Overheating:

   • Avoid exceeding the maximum output current of 200 mA.
   • Use appropriate heat dissipation techniques if necessary.

1. Can the 555 Timer operate at 3.3V?

   • No, the minimum supply voltage is 4.5V. For 3.3V operation, consider using a low-voltage timer IC.

2. What is the maximum frequency the 555 Timer can generate?

   • The maximum frequency is approximately 500 kHz, depending on the external components.

3. Can I use the 555 Timer for PWM control?

   • Yes, the 555 Timer can be configured in astable mode to generate PWM signals by adjusting the duty cycle.

By following this documentation, users can effectively utilize the IK Semicon 555 Timer in various electronic projects.
