How to Use esp32 38p typec cp2102: Examples, Pinouts, and Specs

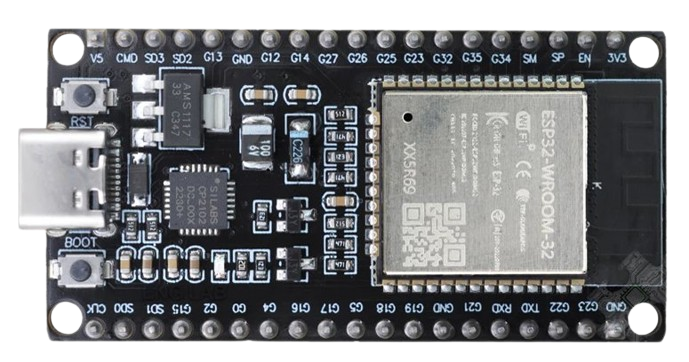

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, along with the CP2102 USB-to-UART bridge for seamless communication with a computer.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and drones
• Industrial automation
• Prototyping and development of Wi-Fi/Bluetooth-enabled devices

The ESP32 38P Type-C CP2102 module is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

• Processor: Dual-core Xtensa® 32-bit LX6 CPU
• Clock Speed: Up to 240 MHz
• Flash Memory: 4 MB (varies by model)
• SRAM: 520 KB
• Wireless Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth 4.2 (Classic + BLE)
• Operating Voltage: 3.3V
• Input Voltage (via USB Type-C): 5V
• GPIO Pins: 38 (including ADC, DAC, PWM, I2C, SPI, UART, etc.)
• ADC Resolution: 12-bit
• DAC Resolution: 8-bit
• USB Interface: CP2102 USB-to-UART bridge
• Power Consumption: Ultra-low power consumption in deep sleep mode (~10 µA)
• Dimensions: Approximately 51mm x 25.5mm

The ESP32 38P module has 38 pins, each with specific functions. Below is a table summarizing the pin configuration:

Note: Some GPIO pins have specific functions or limitations. Refer to the ESP32 datasheet for detailed pin multiplexing information.

1. Powering the Module:

   • Connect the module to a computer or power source using a USB Type-C cable. The onboard voltage regulator will convert the 5V input to 3.3V for the ESP32.
   • Alternatively, supply 5V to the VIN pin or 3.3V directly to the 3V3 pin.

2. Programming the Module:

   • Install the CP2102 USB-to-UART driver on your computer (if not already installed).
   • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the ESP32.
   • Ensure GPIO0 is pulled LOW during programming (this is typically handled automatically by the onboard circuitry).

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure the voltage levels are compatible (3.3V logic).

4. Wi-Fi and Bluetooth Setup:

   • Use the ESP32's built-in libraries to configure Wi-Fi and Bluetooth for your application. Examples are provided in the Arduino IDE.

• Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins to prevent damage.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid interference.
• Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or heat dissipation in high-performance applications.

Below is an example of how to use the ESP32 to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the ESP32's IP address
}

void loop() {
  // Add your main code here
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

1. ESP32 Not Detected by Computer:

   • Ensure the CP2102 driver is installed correctly.
   • Try a different USB cable (some cables are power-only and do not support data transfer).
   • Check the USB port and ensure it is functioning properly.

2. Failed to Upload Code:

   • Ensure GPIO0 is pulled LOW during programming (handled automatically on most boards).
   • Press and hold the "BOOT" button while uploading the code if the automatic reset fails.

3. Wi-Fi Connection Issues:

   • Double-check the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and not overloaded.

4. Overheating:

   • Avoid overloading the GPIO pins or running the ESP32 at maximum performance for extended periods.
   • Use a heatsink or ensure proper ventilation if necessary.

• Q: Can I power the ESP32 with a 5V power bank?
  A: Yes, you can power the ESP32 via the USB Type-C port or the VIN pin using a 5V power bank.

• Q: Is the ESP32 compatible with 5V logic?
  A: No, the ESP32 operates at 3.3V logic. Use a level shifter if interfacing with 5V devices.

• Q: How do I reset the ESP32?
  A: Press the "EN" button on the module to reset the ESP32.

• Q: Can I use the ESP32 for Bluetooth audio applications?
  A: Yes, the ESP32 supports Bluetooth Classic and BLE, which can be used for audio streaming with appropriate libraries.

This concludes the documentation for the ESP32 38P Type-C CP2102 module. For further details, refer to the official Espressif Systems datasheet and resources.
