How to Use Led module RGB: Examples, Pinouts, and Specs

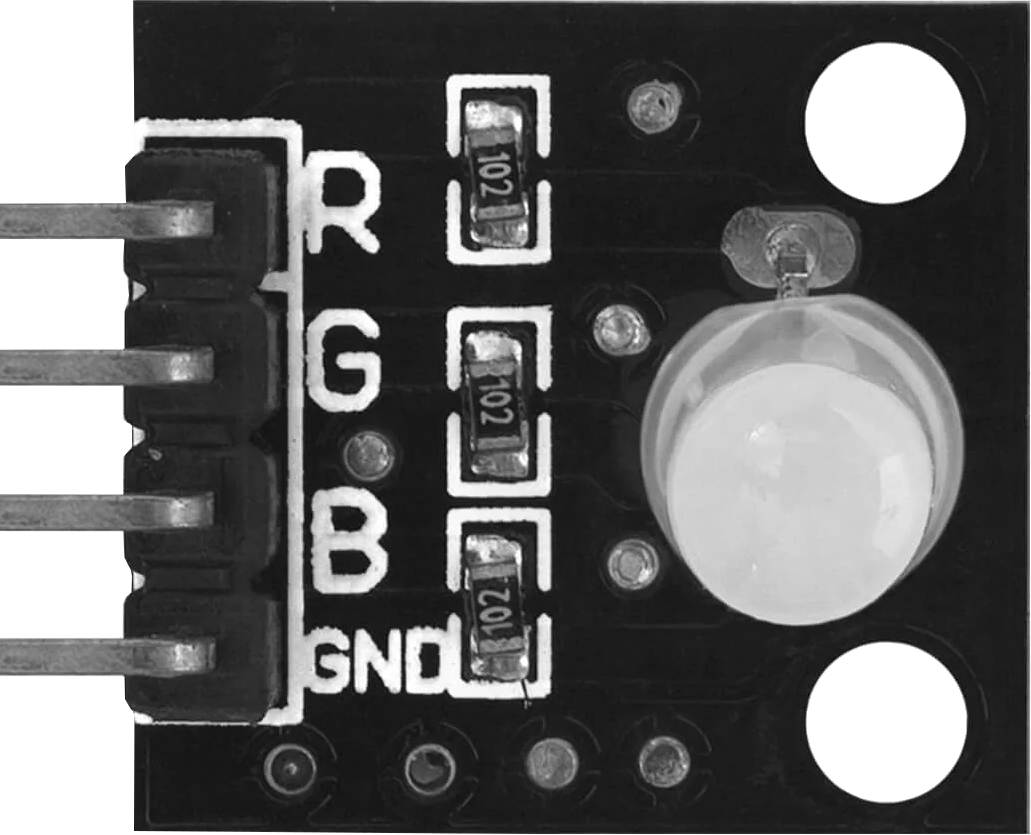

Image of Led module RGB
Cirkit Designer LogoDesign with Led module RGB in Cirkit Designer

Introduction

The AZDelivery KY-016 RGB LED module is a versatile light-emitting diode (LED) module capable of producing a wide range of colors by mixing red, green, and blue light. This module is ideal for applications requiring dynamic lighting effects, such as displays, decorative lighting, and status indicators. Its compact design and ease of use make it a popular choice for hobbyists and professionals alike.

Common applications include:

  • RGB lighting for decorative purposes
  • Status indicators in electronic projects
  • Displays and visual effects
  • Educational projects for learning about color mixing and PWM control

Explore Projects Built with Led module RGB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Wi-Fi Controlled RGB LED and Octocoupler with Light Sensor using Wemos D1 Mini
Image of On Air Light Control: A project utilizing Led module RGB in a practical application
This circuit uses a Wemos D1 Mini microcontroller to control an RGB LED and an Octocoupler. The RGB LED displays different colors based on the state of the digital pins, while the Octocoupler is used for external control. A Photocell (LDR) connected to an analog pin adjusts the LED brightness based on ambient light levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered RGB LED Control with Pushbuttons
Image of EXP-12 E: A project utilizing Led module RGB in a practical application
This circuit consists of an RGB LED controlled by three pushbuttons, each corresponding to one of the LED's color channels (Red, Green, and Blue). The pushbuttons are powered by a MAHIR 1.mini power source, allowing the user to manually toggle each color channel of the RGB LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Enabled RGB and Red LED Controller with Light Sensing
Image of OnAirV0: A project utilizing Led module RGB in a practical application
This circuit features a Wemos D1 Mini microcontroller that likely controls an RGB LED and a red indicator LED, reads from a photocell (LDR), and interfaces with an octocoupler for electrical isolation. The circuit is USB-powered and is designed for light sensing and LED control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Interactive RGB LED Control Circuit with Pushbuttons
Image of rgb circuit: A project utilizing Led module RGB in a practical application
This circuit features a 9V battery connected to a voltage regulator, which likely steps down the voltage to a lower level suitable for driving an RGB LED. Three pushbuttons are connected to the output of the voltage regulator, each controlling one color channel (red, green, and blue) of the RGB LED. A resistor is connected in series with the common cathode of the RGB LED to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Led module RGB

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of On Air Light Control: A project utilizing Led module RGB in a practical application
Wi-Fi Controlled RGB LED and Octocoupler with Light Sensor using Wemos D1 Mini
This circuit uses a Wemos D1 Mini microcontroller to control an RGB LED and an Octocoupler. The RGB LED displays different colors based on the state of the digital pins, while the Octocoupler is used for external control. A Photocell (LDR) connected to an analog pin adjusts the LED brightness based on ambient light levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP-12 E: A project utilizing Led module RGB in a practical application
Battery-Powered RGB LED Control with Pushbuttons
This circuit consists of an RGB LED controlled by three pushbuttons, each corresponding to one of the LED's color channels (Red, Green, and Blue). The pushbuttons are powered by a MAHIR 1.mini power source, allowing the user to manually toggle each color channel of the RGB LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OnAirV0: A project utilizing Led module RGB in a practical application
Wi-Fi Enabled RGB and Red LED Controller with Light Sensing
This circuit features a Wemos D1 Mini microcontroller that likely controls an RGB LED and a red indicator LED, reads from a photocell (LDR), and interfaces with an octocoupler for electrical isolation. The circuit is USB-powered and is designed for light sensing and LED control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rgb circuit: A project utilizing Led module RGB in a practical application
Interactive RGB LED Control Circuit with Pushbuttons
This circuit features a 9V battery connected to a voltage regulator, which likely steps down the voltage to a lower level suitable for driving an RGB LED. Three pushbuttons are connected to the output of the voltage regulator, each controlling one color channel (red, green, and blue) of the RGB LED. A resistor is connected in series with the common cathode of the RGB LED to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The following table outlines the key technical details of the KY-016 RGB LED module:

Parameter Value
Manufacturer AZDelivery
Part ID KY-016
Operating Voltage 3.3V to 5V
Operating Current 20mA per channel (typical)
LED Colors Red, Green, Blue (RGB)
Control Method PWM (Pulse Width Modulation)
Dimensions 18mm x 15mm x 3mm

Pin Configuration and Descriptions

The KY-016 module has four pins, as described in the table below:

Pin Label Description
1 R Red LED control pin (connect to PWM pin on microcontroller)
2 G Green LED control pin (connect to PWM pin on microcontroller)
3 B Blue LED control pin (connect to PWM pin on microcontroller)
4 GND Ground connection

Usage Instructions

How to Use the KY-016 in a Circuit

  1. Power Supply: Connect the GND pin of the module to the ground of your power source or microcontroller. The R, G, and B pins should be connected to PWM-capable pins on your microcontroller (e.g., Arduino UNO).
  2. Control: Use PWM signals to control the intensity of each color (Red, Green, and Blue). By varying the duty cycle of the PWM signals, you can mix the colors to produce a wide range of hues.
  3. Resistors: It is recommended to use current-limiting resistors (typically 220Ω to 330Ω) in series with the R, G, and B pins to prevent excessive current from damaging the LEDs.

Example Arduino UNO Code

Below is an example code snippet to control the KY-016 RGB LED module using an Arduino UNO:

// Define the PWM pins connected to the KY-016 module
const int redPin = 9;   // Red LED control pin
const int greenPin = 10; // Green LED control pin
const int bluePin = 11;  // Blue LED control pin

void setup() {
  // Set the RGB pins as output
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  // Example: Cycle through Red, Green, and Blue colors
  setColor(255, 0, 0); // Red
  delay(1000);
  setColor(0, 255, 0); // Green
  delay(1000);
  setColor(0, 0, 255); // Blue
  delay(1000);
  setColor(255, 255, 0); // Yellow
  delay(1000);
  setColor(0, 255, 255); // Cyan
  delay(1000);
  setColor(255, 0, 255); // Magenta
  delay(1000);
  setColor(255, 255, 255); // White
  delay(1000);
}

// Function to set the RGB color
void setColor(int redValue, int greenValue, int blueValue) {
  analogWrite(redPin, redValue);   // Set Red intensity
  analogWrite(greenPin, greenValue); // Set Green intensity
  analogWrite(bluePin, blueValue);  // Set Blue intensity
}

Important Considerations and Best Practices

  • Current Limiting: Always use appropriate resistors to limit the current through the LEDs.
  • PWM Frequency: Ensure the PWM frequency is high enough to avoid visible flickering.
  • Heat Management: Prolonged use at high brightness levels may generate heat. Ensure proper ventilation or reduce brightness to avoid overheating.
  • Power Supply: Use a stable power source to prevent flickering or inconsistent color output.

Troubleshooting and FAQs

Common Issues and Solutions

  1. LEDs Not Lighting Up:

    • Check the connections to ensure the R, G, and B pins are properly connected to the microcontroller's PWM pins.
    • Verify that the GND pin is connected to the ground of the power source.
    • Ensure the current-limiting resistors are correctly installed.
  2. Incorrect Colors or No Color Mixing:

    • Verify the PWM signals being sent to the R, G, and B pins. Incorrect duty cycles can result in unexpected colors.
    • Check for loose or faulty connections.
  3. Flickering LEDs:

    • Ensure the PWM frequency is set high enough to avoid visible flickering.
    • Check the power supply for stability and ensure it meets the voltage and current requirements.
  4. Overheating:

    • Reduce the brightness levels by lowering the PWM duty cycles.
    • Ensure proper ventilation around the module.

FAQs

Q: Can I use the KY-016 module with a 3.3V microcontroller?
A: Yes, the KY-016 module is compatible with both 3.3V and 5V microcontrollers. Ensure the PWM signals are within the operating voltage range.

Q: Do I need external transistors to drive the LEDs?
A: No, the KY-016 module can be directly driven by the PWM pins of most microcontrollers, provided the current does not exceed the microcontroller's pin limits.

Q: How do I achieve a specific color?
A: Use the analogWrite() function (or equivalent) to set the PWM duty cycles for the R, G, and B pins. Experiment with different values to achieve the desired color.

Q: Can I control multiple KY-016 modules simultaneously?
A: Yes, you can control multiple modules by connecting each module's R, G, and B pins to separate PWM pins on your microcontroller.

This documentation provides a comprehensive guide to using the AZDelivery KY-016 RGB LED module effectively. For further assistance, refer to the manufacturer's datasheet or community forums.
