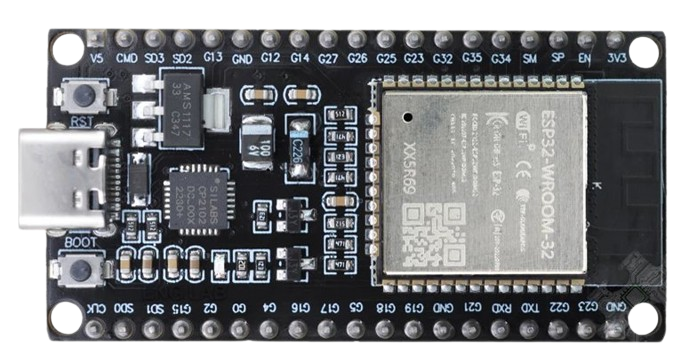

Image of esp32 38p typec cp2102
Cirkit Designer LogoDesign with esp32 38p typec cp2102 in Cirkit Designer

Introduction

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, as well as the CP2102 USB-to-UART bridge for seamless communication with a computer.
