How to Use BUCK: Examples, Pinouts, and Specs

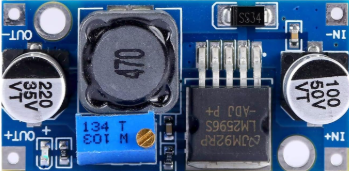

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient electronic component designed to step down voltage while stepping up current. This type of DC-DC converter is widely used in applications where a stable, lower voltage is required from a higher input voltage source. Its compact design and high efficiency make it ideal for battery-powered devices, power supply units, and embedded systems.

• Powering microcontrollers and sensors from higher voltage sources
• Battery management systems
• Voltage regulation in portable devices
• LED drivers
• Industrial automation systems

The following table outlines the key technical details of the HUAREW BUCK DC/DC converter:

The HUAREW BUCK DC/DC converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):

   • Ensure the input voltage is within the specified range (4.5V to 40V).
   • Connect the positive terminal of the power source to the VIN pin.
   • Connect the negative terminal of the power source to the GND pin.

2. Set the Output Voltage (VOUT):

   • Use a potentiometer or resistor divider connected to the ADJ pin to set the desired output voltage.
   • Measure the output voltage using a multimeter to ensure it matches your requirements.

3. Connect the Load:

   • Attach the load to the VOUT pin and GND pin.
   • Ensure the load does not exceed the maximum output current (3A).

4. Add External Components (Optional):

   • For improved stability, you can add input and output capacitors (e.g., 10µF to 100µF) near the VIN and VOUT pins.

• Heat Dissipation: Ensure proper heat dissipation, especially when operating at high currents. Use a heatsink or ensure adequate airflow if necessary.
• Input Voltage: Avoid exceeding the maximum input voltage (40V) to prevent damage to the component.
• Output Voltage Adjustment: When adjusting the output voltage, turn the potentiometer slowly to avoid overshooting the desired value.

The HUAREW BUCK DC/DC converter can be used to power an Arduino UNO from a higher voltage source, such as a 12V battery. Below is an example circuit and Arduino code:

1. Connect the 12V battery's positive terminal to the VIN pin of the BUCK converter.
2. Connect the 12V battery's negative terminal to the GND pin of the BUCK converter.
3. Adjust the BUCK converter's output voltage to 5V using the ADJ pin.
4. Connect the VOUT pin of the BUCK converter to the Arduino UNO's 5V pin.
5. Connect the GND pin of the BUCK converter to the Arduino UNO's GND pin.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the BUCK DC/DC converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Input voltage is not connected or is below the minimum required voltage.
   • Solution: Verify the input voltage is within the 4.5V to 40V range and properly connected.

2. Output Voltage is Incorrect:

   • Cause: The ADJ pin is not configured correctly.
   • Solution: Adjust the potentiometer or resistor divider connected to the ADJ pin to set the correct output voltage.

3. Overheating:

   • Cause: Excessive current draw or insufficient heat dissipation.
   • Solution: Ensure the load does not exceed 3A and add a heatsink or improve airflow.

4. Noise or Instability in Output Voltage:

   • Cause: Lack of input/output capacitors or poor connections.
   • Solution: Add capacitors (10µF to 100µF) near the VIN and VOUT pins and check all connections.

Q: Can the BUCK DC/DC converter be used with a 24V input?
A: Yes, the converter supports input voltages up to 40V, so 24V is within the acceptable range.

Q: How do I calculate the resistor values for the ADJ pin?
A: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ]
where ( V_{REF} ) is typically 1.25V, and ( R_1 ) and ( R_2 ) are the resistors in the voltage divider.

Q: Can this converter power a Raspberry Pi?
A: Yes, as long as the output voltage is set to 5V and the current requirement (typically 2.5A for a Raspberry Pi 4) is within the 3A limit.

Q: Is reverse polarity protection included?
A: No, the BUCK DC/DC converter does not include reverse polarity protection. Use a diode in series with the input to prevent damage.
