How to Use ir sensor : Examples, Pinouts, and Specs

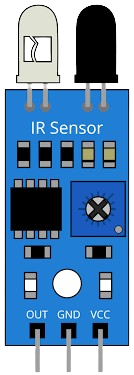

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, typically emitted by objects as heat. It is a versatile electronic component widely used in various applications, including motion detection, proximity sensing, and remote control systems. IR sensors are integral to devices such as automatic doors, burglar alarms, and line-following robots. They are valued for their ability to detect objects without physical contact.

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor  in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor  in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of HCSR-04: A project utilizing ir sensor  in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor  in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor  in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of HCSR-04: A project utilizing ir sensor  in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of a typical IR sensor module:

  • Operating Voltage: 3.3V to 5V DC
  • Current Consumption: ~20mA
  • Detection Range: 2cm to 30cm (varies by model)
  • Output Type: Digital (High/Low) or Analog (depending on the model)
  • Wavelength: ~940nm (infrared light)
  • Adjustable Sensitivity: Yes (via onboard potentiometer in some models)

Pin Configuration and Descriptions

The IR sensor module typically has three or more pins. Below is a table describing the common pin configuration:

Pin Name Description
VCC Power supply pin. Connect to 3.3V or 5V DC.
GND Ground pin. Connect to the ground of the circuit.
OUT Output pin. Provides a digital signal (HIGH or LOW) based on object detection.
EN (optional) Enable pin. Used to enable or disable the sensor (available in some models).

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Connect the Output: Attach the OUT pin to a microcontroller's digital input pin or an external circuit.
  3. Adjust Sensitivity: If the sensor has a potentiometer, rotate it to adjust the detection range.
  4. Test the Sensor: Place an object within the detection range and observe the output signal.

Important Considerations and Best Practices

  • Ambient Light Interference: IR sensors can be affected by sunlight or other strong light sources. Use them in controlled lighting conditions for optimal performance.
  • Distance Limitations: Ensure the object is within the specified detection range for accurate results.
  • Power Supply: Use a stable power source to avoid erratic behavior.
  • Mounting: Position the sensor so that the IR LED and photodiode face the target area directly.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to use an IR sensor with an Arduino UNO to detect objects:

// IR Sensor Example with Arduino UNO
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int irSensorPin = 2;  // IR sensor output connected to digital pin 2
const int ledPin = 13;      // Built-in LED on Arduino UNO

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);           // Initialize serial communication for debugging
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == LOW) {
    // Object detected (LOW signal from IR sensor)
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected (HIGH signal from IR sensor)
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The sensor is not detecting objects:

    • Ensure the object is within the detection range.
    • Check the power connections (VCC and GND).
    • Adjust the sensitivity using the onboard potentiometer (if available).
  2. False triggers or erratic behavior:

    • Avoid using the sensor in direct sunlight or near strong light sources.
    • Use a decoupling capacitor (e.g., 0.1µF) across the power supply pins to reduce noise.
  3. Output signal is always HIGH or LOW:

    • Verify the wiring and ensure the sensor is properly connected.
    • Test the sensor with a multimeter to confirm it is functioning.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent or reflective objects. Use specialized sensors for such applications.

Q: What is the maximum detection range of an IR sensor?
A: The detection range varies by model, typically between 2cm and 30cm. Check the datasheet for your specific sensor.

Q: Can I use an IR sensor outdoors?
A: While possible, outdoor use may lead to interference from sunlight. Consider using IR sensors with filters or shielding for better performance.

Q: How do I clean the sensor?
A: Use a soft, dry cloth to clean the IR LED and photodiode. Avoid using liquids or abrasive materials.

By following this documentation, you can effectively integrate and troubleshoot an IR sensor in your projects.
