How to Use TCRT5000: Examples, Pinouts, and Specs

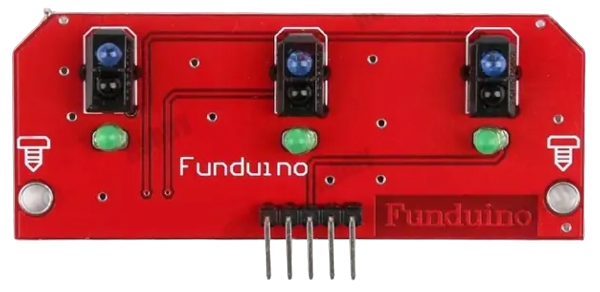

Image of TCRT5000Design with TCRT5000 in Cirkit Designer

Introduction

The TCRT5000 is an infrared (IR) sensor module manufactured by TECH_BOT with the part ID array. It integrates an IR emitter and a phototransistor in a single package, enabling it to detect objects and measure proximity by sensing reflected IR light. The sensor is widely used in robotics and automation systems, particularly in applications such as line-following robots, obstacle detection, and edge detection.

Explore Projects Built with TCRT5000

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors: A project utilizing TCRT5000 in a practical application
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors

This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

The TCRT5000 sensor is designed for reliable and efficient IR-based detection. Below are its key technical details:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 10 mA (typical)
Detection Range 2 mm to 15 mm (optimal: 2-10 mm)
IR Wavelength 950 nm
Output Type Analog or Digital (depending on circuit)
Operating Temperature -25°C to +85°C
Dimensions 10.2 mm x 5.8 mm x 7 mm

Pin Configuration and Descriptions

The TCRT5000 has a 4-pin configuration. The table below describes each pin:

Pin Number Pin Name Description
1 Emitter (A) Connects to the anode of the IR LED (positive terminal).
2 Emitter (K) Connects to the cathode of the IR LED (negative terminal).
3 Collector Output from the phototransistor (analog signal).
4 Emitter Ground connection for the phototransistor.

Usage Instructions

The TCRT5000 is straightforward to use in circuits for object detection and proximity sensing. Below are the steps and considerations for using the sensor effectively:

Connecting the TCRT5000

  1. Power Supply: Connect the IR emitter pins (1 and 2) to a 3.3V or 5V power source. Use a current-limiting resistor (typically 220Ω to 1kΩ) in series with the IR LED to prevent damage.
  2. Output Signal: Connect the phototransistor's collector pin (3) to the input of a microcontroller or an analog-to-digital converter (ADC). Use a pull-up resistor (e.g., 10kΩ) if necessary.
  3. Ground: Connect the emitter pin (4) of the phototransistor to the ground (GND).

Circuit Example

Below is a simple circuit diagram for connecting the TCRT5000 to an Arduino UNO:

Sample Arduino Code

The following Arduino code demonstrates how to read the TCRT5000's output and detect objects:

// Define the analog pin connected to the TCRT5000 output
const int sensorPin = A0;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor

  // Print the sensor value to the Serial Monitor
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  // Check if an object is detected (threshold value may vary)
  if (sensorValue < 500) {
    Serial.println("Object Detected!");
  } else {
    Serial.println("No Object Detected.");
  }

  delay(500); // Wait for 500ms before the next reading
}

Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply voltage is within the specified range (3.3V to 5V).
  2. Inconsistent Readings:

    • Cause: Ambient light interference or improper object placement.
    • Solution: Shield the sensor from ambient light and ensure the object is within the optimal detection range.
  3. Low Sensitivity:

    • Cause: Incorrect resistor values or dirty sensor surface.
    • Solution: Use recommended resistor values and clean the sensor surface with a soft cloth.
  4. Overheating:

    • Cause: Excessive current through the IR LED.
    • Solution: Use a current-limiting resistor (e.g., 220Ω to 1kΩ) in series with the IR LED.

FAQs

Q1: Can the TCRT5000 detect transparent objects?
A1: The TCRT5000 may struggle to detect transparent objects due to insufficient IR reflection. Use reflective tape or a similar material to improve detection.

Q2: How do I adjust the sensitivity of the TCRT5000?
A2: Sensitivity can be adjusted by changing the pull-up resistor value on the phototransistor or by using an external comparator circuit.

Q3: Can the TCRT5000 be used outdoors?
A3: While it can be used outdoors, ambient sunlight may interfere with its performance. Consider using an IR filter or shielding the sensor.

Q4: What is the maximum detection range of the TCRT5000?
A4: The maximum detection range is approximately 15 mm, but optimal performance is achieved within 2-10 mm.

By following this documentation, users can effectively integrate the TCRT5000 into their projects for reliable object detection and proximity sensing.
