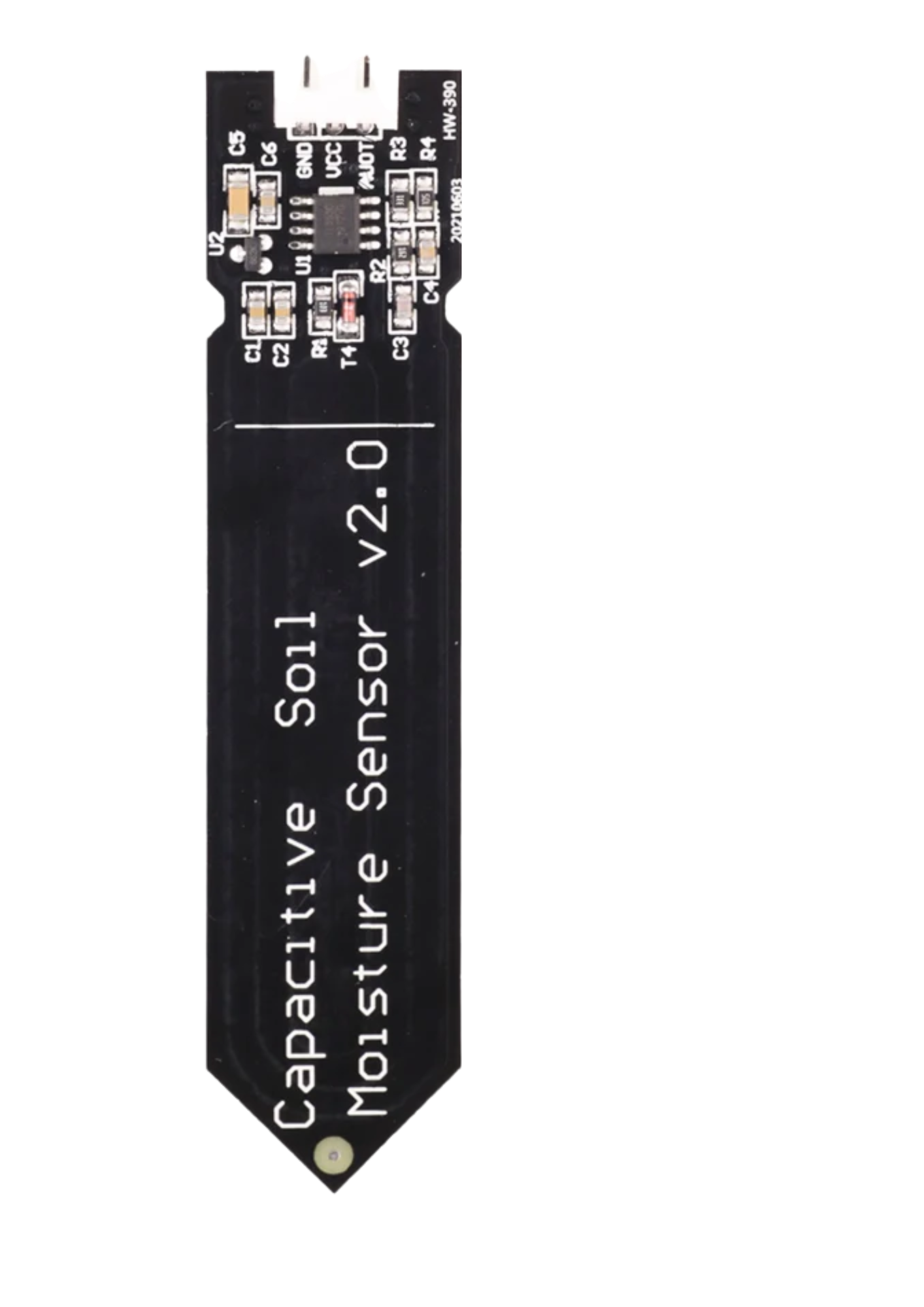

The Soil Moisture V2 sensor, manufactured by ESP32, is a reliable and efficient device designed to measure the volumetric water content in soil. This sensor provides accurate data that can be used for irrigation systems, plant health monitoring, and agricultural automation. Its compact design and ease of integration make it a popular choice for both hobbyists and professionals in the field of smart gardening and precision agriculture.
Explore Projects Built with Soil Moisture V2
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a soil moisture and environmental monitoring system using an ESP32 microcontroller. It integrates multiple capacitive soil moisture sensors and a DHT22 temperature and humidity sensor to collect data, which can be processed or transmitted by the ESP32. The system is powered by a solar charger power bank, ensuring sustainable operation.
This is a smart irrigation system that monitors soil moisture, air temperature, and humidity, displaying the readings on an LCD and providing remote data access via Blynk. It automatically waters plants using a 5V mini water pump controlled by a relay, which is triggered by the ESP8266 NodeMCU when the soil moisture is below a set point.
This circuit is a soil moisture monitoring system that uses a soil moisture sensor connected to a Soil Moisture Module, which in turn interfaces with a NodeMCU V3 ESP8266 microcontroller. The system is powered by a 12V power supply regulated through a buck converter, and it reads soil moisture levels, converting them to a percentage and transmitting the data via the microcontroller.
This circuit is an automated soil moisture monitoring and irrigation system. It uses an Arduino UNO to read data from a capacitive soil moisture sensor and display the moisture level on a 16x2 I2C LCD. Based on the moisture level, the Arduino controls three LEDs (green, yellow, red) to indicate the soil status and activates a relay to power a water pump for irrigation when needed.
The Soil Moisture V2 sensor is designed to operate efficiently in a variety of environments. Below are its key technical details:
Parameter
Specification
Operating Voltage
3.3V to 5V
Operating Current
< 20mA
Output Signal
Analog voltage (0-3.3V)
Measurement Range
0% to 100% soil moisture
Interface Type
Analog
Dimensions
60mm x 20mm x 5mm
Operating Temperature
-10°C to 60°C
Material
Corrosion-resistant PCB
Pin Configuration
The Soil Moisture V2 sensor has three pins for easy interfacing:
Pin
Name
Description
1
VCC
Power supply pin (3.3V to 5V)
2
GND
Ground connection
3
AOUT
Analog output pin that provides soil moisture data
Usage Instructions
Connecting the Sensor
To use the Soil Moisture V2 sensor in a circuit:
Connect the VCC pin to a 3.3V or 5V power source.
Connect the GND pin to the ground of your circuit.
Connect the AOUT pin to an analog input pin on your microcontroller (e.g., Arduino UNO or ESP32).
Important Considerations
Avoid prolonged exposure of the sensor to water to prevent corrosion, even though the PCB is corrosion-resistant.
Calibrate the sensor for your specific soil type to ensure accurate readings.
Use a pull-down resistor on the analog output pin if the signal is unstable.
Place the sensor at the root level of the plant for optimal moisture measurement.
Example Code for Arduino UNO
Below is an example of how to use the Soil Moisture V2 sensor with an Arduino UNO:
// Define the analog pin connected to the sensor
const int sensorPin = A0;
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage (5V reference)
// Map the voltage to a percentage (0% to 100% soil moisture)
int moisturePercent = map(sensorValue, 0, 1023, 0, 100);
// Print the results to the Serial Monitor
Serial.print("Soil Moisture: ");
Serial.print(moisturePercent);
Serial.println("%");
delay(1000); // Wait for 1 second before the next reading
}
Best Practices
Use a waterproof enclosure for outdoor applications to protect the sensor and connections.
Periodically clean the sensor probes to maintain accuracy.
Avoid placing the sensor in highly saline or acidic soils, as this may affect its lifespan.
Troubleshooting and FAQs
Common Issues and Solutions
No Output or Incorrect Readings
Ensure the sensor is properly connected to the power supply and ground.
Verify that the analog pin on the microcontroller is functioning correctly.
Check for loose or corroded connections.
Fluctuating or Unstable Readings
Use a pull-down resistor on the analog output pin to stabilize the signal.
Ensure the sensor is inserted firmly into the soil.
Sensor Corrosion
Avoid leaving the sensor in wet soil for extended periods.
Use a protective coating or enclosure for long-term applications.
FAQs
Q: Can the Soil Moisture V2 sensor be used with a Raspberry Pi?
A: Yes, but since the Raspberry Pi lacks analog input pins, you will need an ADC (Analog-to-Digital Converter) module to read the sensor's output.
Q: How do I calibrate the sensor?
A: Measure the sensor's output in dry soil (0% moisture) and fully saturated soil (100% moisture). Use these values to map the sensor's readings to a percentage scale.
Q: Is the sensor waterproof?
A: The sensor is water-resistant but not fully waterproof. Avoid submerging it in water for extended periods.
By following this documentation, you can effectively integrate the Soil Moisture V2 sensor into your projects and ensure accurate soil moisture monitoring.
