How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

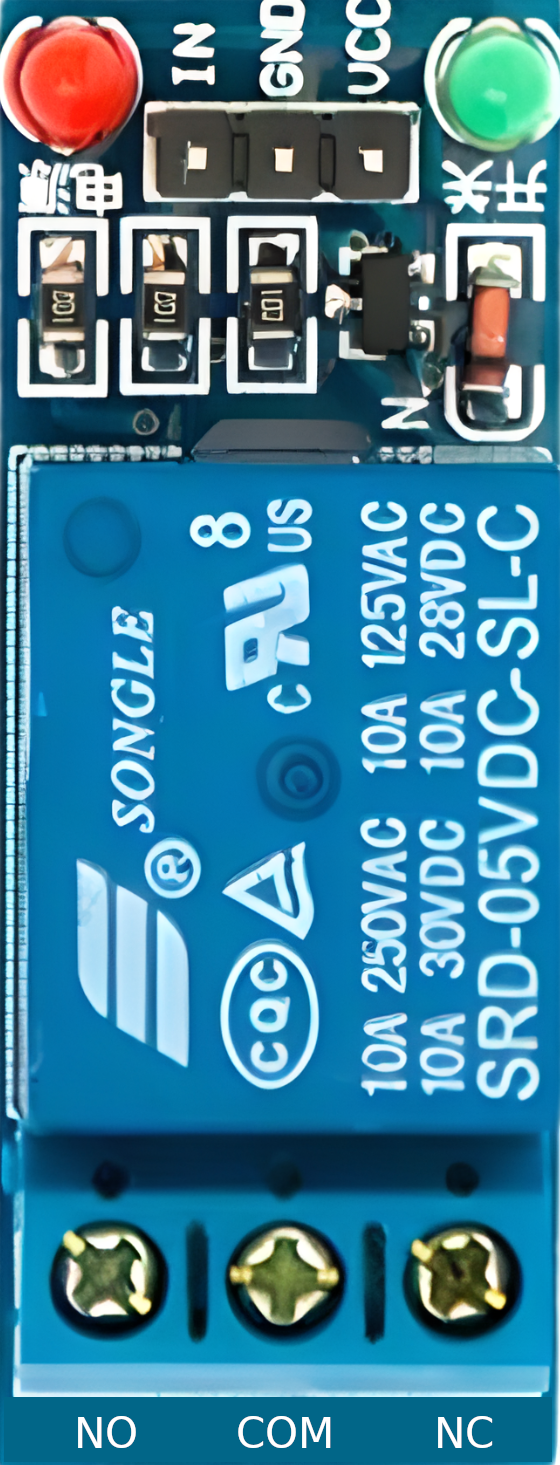

The 1 Channel Relay 5V is an electromechanical switch that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and industrial control systems. It is ideal for switching devices such as lights, fans, motors, or other high-power loads while isolating the control circuit from the high-power circuit.

• Home automation systems (e.g., controlling lights or appliances)
• Industrial control systems
• Motor control
• IoT projects
• Safety and isolation in high-voltage circuits

1. Power the Module: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Control Signal: Connect the IN pin to a microcontroller (e.g., Arduino) or any 3.3V-5V logic signal source.
3. Load Connection:
   • Connect the device you want to control (e.g., a light bulb) to the COM and NO terminals if you want the device to turn on when the relay is activated.
   • Use the COM and NC terminals if you want the device to turn off when the relay is activated.
4. Isolation: Ensure proper isolation between the low-voltage control circuit and the high-voltage load circuit for safety.

• Power Supply: Ensure the relay module is powered with a stable 5V DC supply.
• Load Ratings: Do not exceed the maximum voltage (250V AC / 30V DC) or current (10A) ratings of the relay.
• Optocoupler Isolation: The module includes an optocoupler for isolation, but additional safety measures (e.g., fuses) are recommended for high-power applications.
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.

Below is an example of how to control the relay using an Arduino UNO to toggle a light bulb.

• Connect the relay module's VCC to the Arduino's 5V pin.
• Connect the relay module's GND to the Arduino's GND pin.
• Connect the relay module's IN pin to Arduino digital pin 7.
• Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off initially
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON (activates the connected device)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivates the connected device)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

• Always double-check connections before powering the circuit.
• Use proper insulation and enclosures when working with high-voltage loads.
• Avoid touching the relay module when it is connected to high voltage.

1. Can I use this relay with a 3.3V microcontroller?

   • Yes, the relay can be triggered with a 3.3V control signal, but ensure the VCC pin is powered with 5V.

2. Is the relay safe for high-voltage applications?

   • Yes, but always follow safety guidelines and use proper insulation and protective measures.

3. Can I control multiple relays with one Arduino?

   • Yes, as long as each relay is connected to a separate digital pin and the Arduino can supply sufficient current.

4. What happens if I connect the load incorrectly?

   • Incorrect wiring may cause the load to not function or damage the relay. Double-check the COM, NO, and NC connections.

By following this documentation, you can effectively use the 1 Channel Relay 5V in your projects for safe and reliable control of high-power devices.
