How to Use acs712: Examples, Pinouts, and Specs

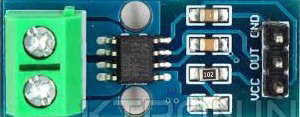

The ACS712 Current Sensor, manufactured by Allegro MicroSystems, is a Hall effect-based linear current sensor designed to measure both AC and DC currents. It provides an analog voltage output proportional to the current flowing through the sensor. The device is widely used in applications requiring current monitoring, such as motor control, power management, and overcurrent protection. Its compact design, high accuracy, and electrical isolation make it a popular choice for both hobbyists and professionals.

• Motor current sensing
• Power supply monitoring
• Overcurrent fault detection
• Battery management systems
• Inverter and solar power systems
• Robotics and automation

The ACS712 is available in different variants based on the current range. Below are the key specifications:

The ACS712 has 8 pins, as described in the table below:

1. Power Supply: Connect the VCC pin to a 5V power supply and the GND pin to the ground.
2. Current Measurement: Pass the current-carrying conductor through the IP+ and IP- terminals. Ensure the current does not exceed the sensor's rated range.
3. Output Signal: The VIOUT pin provides an analog voltage proportional to the measured current. This output can be read using an ADC (Analog-to-Digital Converter) on a microcontroller.
4. Bandwidth Control: Connect a capacitor between the FILTER pin and GND to set the desired bandwidth. For most applications, a 1 nF capacitor is recommended.

• Isolation: The ACS712 provides electrical isolation between the current-carrying conductor and the output signal, making it safe for high-voltage applications.
• Calibration: The sensor's output at 0A is typically VCC/2 (e.g., 2.5V for a 5V supply). Calibrate your system to account for this offset.
• Noise Filtering: Use a capacitor on the FILTER pin to reduce noise and improve measurement stability.
• Current Direction: Positive current flows from IP+ to IP-, resulting in an output voltage above VCC/2. Negative current results in a voltage below VCC/2.

Below is an example of how to interface the ACS712 with an Arduino UNO to measure current:

// Define the analog pin connected to the ACS712 output
const int sensorPin = A0;

// Sensitivity of the ACS712 (e.g., 185 mV/A for ±5A variant)
const float sensitivity = 0.185; // in volts per ampere

// Voltage at 0A (VCC/2 for a 5V supply)
const float zeroCurrentVoltage = 2.5; // in volts

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the sensor
  int sensorValue = analogRead(sensorPin);

  // Convert the analog value to voltage
  float sensorVoltage = sensorValue * (5.0 / 1023.0);

  // Calculate the current in amperes
  float current = (sensorVoltage - zeroCurrentVoltage) / sensitivity;

  // Print the current to the Serial Monitor
  Serial.print("Current: ");
  Serial.print(current);
  Serial.println(" A");

  delay(1000); // Wait for 1 second before the next reading
}

• Replace sensitivity with the appropriate value for your ACS712 variant (e.g., 0.1 for ±20A or 0.066 for ±30A).
• Ensure the Arduino's ADC reference voltage matches the sensor's VCC (typically 5V).

1. No Output Signal:

   • Ensure the sensor is powered correctly (VCC = 5V, GND connected).
   • Verify that the current-carrying conductor is properly connected to IP+ and IP-.

2. Inaccurate Readings:

   • Check for proper calibration (account for the zero-current offset voltage).
   • Use a capacitor on the FILTER pin to reduce noise.
   • Ensure the current does not exceed the sensor's rated range.

3. Output Voltage Stuck at VCC/2:

   • This indicates no current is flowing through the sensor. Verify the connections and load.

Q: Can the ACS712 measure both AC and DC currents?
A: Yes, the ACS712 can measure both AC and DC currents. The output voltage varies proportionally with the instantaneous current.

Q: How do I select the correct ACS712 variant?
A: Choose a variant based on the maximum current you need to measure. For example, use the ±5A variant for low-current applications and the ±30A variant for high-current applications.

Q: What is the purpose of the FILTER pin?
A: The FILTER pin allows you to connect an external capacitor to control the sensor's bandwidth and reduce noise in the output signal.

Q: Is the ACS712 suitable for high-voltage applications?
A: Yes, the ACS712 provides electrical isolation up to 2.1 kV RMS, making it safe for high-voltage applications.

By following this documentation, you can effectively integrate the ACS712 Current Sensor into your projects and achieve accurate current measurements.
