How to Use HT7850: Examples, Pinouts, and Specs

The HT7850 is a low-dropout (LDO) voltage regulator designed to provide a stable and reliable output voltage. With a maximum output current of 1A, it is suitable for powering a wide range of electronic devices. The HT7850 features a wide input voltage range, low noise, and high efficiency, making it ideal for applications such as battery-powered devices, microcontroller-based systems, and audio equipment.

• Powering microcontrollers and digital circuits
• Battery-powered devices
• Audio and video equipment
• Portable electronics
• Low-noise analog circuits

The HT7850 is designed to meet the needs of modern electronic systems. Below are its key technical specifications:

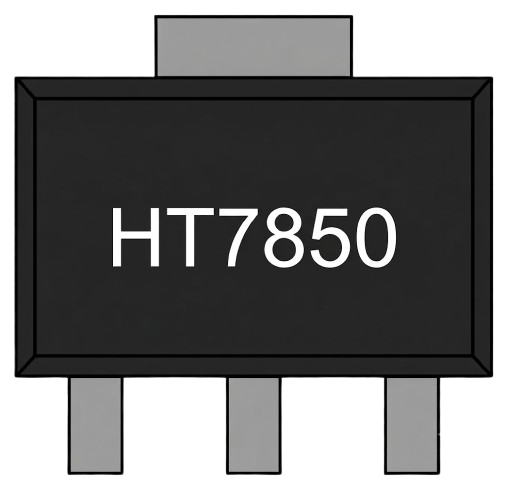

The HT7850 typically comes in a 3-pin package. Below is the pin configuration:

1. Input Capacitor: Connect a capacitor (e.g., 10µF) between the input pin and ground to stabilize the input voltage and reduce noise.
2. Output Capacitor: Connect a capacitor (e.g., 10µF or higher) between the output pin and ground to ensure stable operation and reduce output voltage ripple.
3. Load Connection: Connect the load to the output pin, ensuring the total current does not exceed 1A.
4. Heat Dissipation: If the HT7850 operates at high currents or with a large input-output voltage difference, attach a heatsink to the regulator to prevent overheating.

Below is a basic circuit diagram for using the HT7850:

   +6V to +24V
       |
       +----[10µF Capacitor]----+
       |                        |
      IN                       GND
       |                        |
      OUT----[10µF Capacitor]---+
       |
      +5V (to load)

The HT7850 can be used to power an Arduino UNO by providing a stable 5V supply. Connect the output of the HT7850 to the Arduino's 5V pin, and ensure the input voltage to the HT7850 is within its specified range (6V to 24V).

// Example: Reading an analog sensor powered by the HT7850
// Ensure the HT7850 provides a stable 5V to the Arduino UNO.

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(500); // Wait for 500ms before the next reading
}

• Ensure the input voltage is at least 1.1V higher than the output voltage (dropout voltage) for proper regulation.
• Use appropriate capacitors as recommended in the datasheet to ensure stability.
• Avoid exceeding the maximum output current of 1A to prevent damage to the regulator.
• Use a heatsink if the regulator becomes excessively hot during operation.

1. Output Voltage is Incorrect or Unstable

   • Check the input voltage to ensure it is within the specified range (6V to 24V).
   • Verify that the input and output capacitors are properly connected and have the correct values.
   • Ensure the load does not exceed the maximum current rating of 1A.

2. Regulator Overheating

   • Attach a heatsink to the HT7850 to improve heat dissipation.
   • Reduce the input voltage to minimize the power dissipation across the regulator.

3. No Output Voltage

   • Confirm that the input voltage is connected and within the specified range.
   • Check for proper grounding and ensure all connections are secure.
   • Verify that the load is not causing a short circuit.

Q: Can the HT7850 be used with a 3.3V system?
A: No, the HT7850 is designed to provide a fixed 5V output. For 3.3V systems, consider using a different LDO regulator with a 3.3V output.

Q: What type of capacitors should I use with the HT7850?
A: Use low-ESR electrolytic or ceramic capacitors with values of at least 10µF for both the input and output.

Q: Can I use the HT7850 without a heatsink?
A: Yes, but only if the power dissipation is low. For higher currents or large input-output voltage differences, a heatsink is recommended to prevent overheating.

Q: Is the HT7850 suitable for audio applications?
A: Yes, the HT7850's low noise and high efficiency make it suitable for powering audio circuits.
