How to Use ESP32-S3 (beta): Examples, Pinouts, and Specs

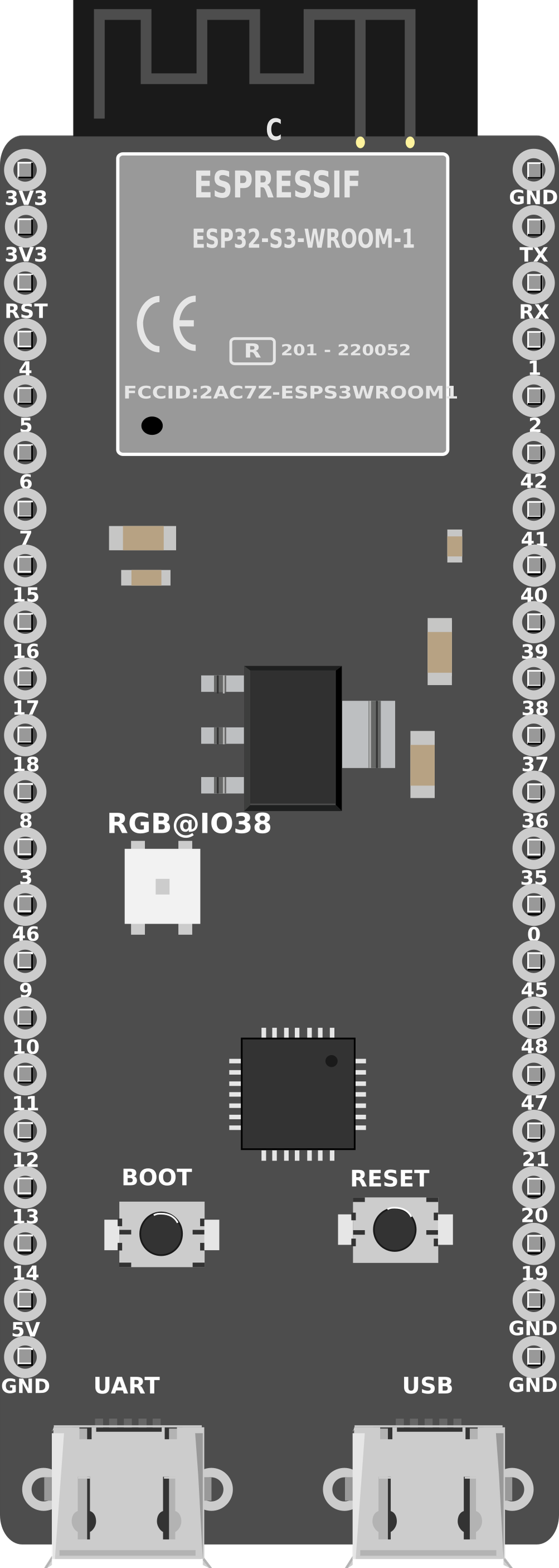

Image of ESP32-S3 (beta)
Cirkit Designer LogoDesign with ESP32-S3 (beta) in Cirkit Designer

Introduction

The ESP32-S3 is a powerful, low-power system-on-chip (SoC) with integrated Wi-Fi and Bluetooth capabilities, designed specifically for Internet of Things (IoT) applications. It features a dual-core Xtensa LX7 processor, enhanced AI acceleration capabilities, and a wide range of peripherals, making it ideal for complex tasks, real-time applications, and edge computing.

Explore Projects Built with ESP32-S3 (beta)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
Image of ESP32: A project utilizing ESP32-S3 (beta) in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 (beta) in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
Image of IOT Thesis: A project utilizing ESP32-S3 (beta) in a practical application
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Automated Watering System with Ultrasonic Sensing and Data Logging
Image of galon otomatis telegram: A project utilizing ESP32-S3 (beta) in a practical application
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an HC-SR04 ultrasonic sensor, a water flow sensor, an OLED display, a DS3231 real-time clock (RTC), an SD card module, a water pump, a two-channel relay, and a valve solenoid. The ESP32-S3 manages sensor readings, data logging, and controls the water pump and valve via the relay based on sensor inputs. The circuit is designed for monitoring and controlling water flow, likely in an automated irrigation or fluid management system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-S3 (beta)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32: A project utilizing ESP32-S3 (beta) in a practical application
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 (beta) in a practical application
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT Thesis: A project utilizing ESP32-S3 (beta) in a practical application
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of galon otomatis telegram: A project utilizing ESP32-S3 (beta) in a practical application
ESP32-S3 Based Automated Watering System with Ultrasonic Sensing and Data Logging
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an HC-SR04 ultrasonic sensor, a water flow sensor, an OLED display, a DS3231 real-time clock (RTC), an SD card module, a water pump, a two-channel relay, and a valve solenoid. The ESP32-S3 manages sensor readings, data logging, and controls the water pump and valve via the relay based on sensor inputs. The circuit is designed for monitoring and controlling water flow, likely in an automated irrigation or fluid management system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Smart home devices (e.g., smart lights, thermostats)
  • Wearable electronics
  • Industrial IoT systems
  • AI-powered edge devices
  • Wireless sensor networks
  • Robotics and automation
  • Audio processing and streaming

Technical Specifications

Key Technical Details

Parameter Specification
Processor Dual-core Xtensa LX7 @ up to 240 MHz
AI Acceleration Vector instructions and AI coprocessor
Flash Memory Up to 16 MB
RAM 512 KB SRAM + external PSRAM support
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 5.0 (LE)
GPIO Pins Up to 45 GPIOs
Operating Voltage 3.0V to 3.6V
Power Consumption Ultra-low power modes available
Interfaces SPI, I2C, I2S, UART, CAN, PWM, ADC, DAC
ADC Resolution 12-bit
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The ESP32-S3 comes in various package types. Below is a general pinout description for the ESP32-S3-WROOM module:

Pin Number Pin Name Description
1 GND Ground
2 3V3 3.3V Power Supply
3 EN Enable pin (active high)
4 IO0 GPIO0, used for boot mode selection
5 IO1 GPIO1, general-purpose I/O
6 IO2 GPIO2, general-purpose I/O
7 IO3 GPIO3, general-purpose I/O
8 RXD0 UART0 RX
9 TXD0 UART0 TX
10 IO4 GPIO4, general-purpose I/O
... ... ... (Refer to the datasheet for full pinout)

Note: The exact pinout may vary depending on the specific ESP32-S3 module variant. Always refer to the official datasheet for detailed pin configurations.

Usage Instructions

How to Use the ESP32-S3 in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Ensure proper decoupling capacitors are used near the power pins.
  2. Boot Mode: To flash firmware, connect GPIO0 to GND during reset. For normal operation, leave GPIO0 unconnected or pull it high.
  3. Peripherals: Connect peripherals (e.g., sensors, actuators) to the GPIO pins. Use appropriate pull-up or pull-down resistors as needed.
  4. Programming: Use a USB-to-UART converter to connect the ESP32-S3 to your computer. Flash firmware using tools like esptool.py or the Arduino IDE.

Important Considerations and Best Practices

  • Power Management: Use the ultra-low power modes for battery-powered applications.
  • Wi-Fi Antenna: Ensure proper placement of the module for optimal Wi-Fi signal strength. Avoid placing metal objects near the antenna.
  • External Components: Use level shifters if interfacing with 5V logic devices.
  • Firmware Updates: Regularly update the firmware to benefit from bug fixes and new features.

Example: Connecting ESP32-S3 to an Arduino UNO

The ESP32-S3 can be programmed using the Arduino IDE. Below is an example of a basic Wi-Fi connection:

#include <WiFi.h> // Include the Wi-Fi library for ESP32-S3

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi SSID
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print("."); // Print dots while connecting
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Tip: Ensure the ESP32-S3 board is selected in the Arduino IDE under Tools > Board.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32-S3 Not Connecting to Wi-Fi

    • Solution: Double-check the SSID and password. Ensure the router is operating on the 2.4 GHz band (not 5 GHz).
    • Tip: Move the ESP32-S3 closer to the router to improve signal strength.
  2. Module Not Detected by Computer

    • Solution: Ensure the correct USB driver is installed for the USB-to-UART converter.
    • Tip: Use a high-quality USB cable and verify the connection.
  3. GPIO Pins Not Responding

    • Solution: Check for proper pull-up or pull-down resistors. Verify the pin mode in your code.
    • Tip: Avoid using reserved pins or pins with special functions unless necessary.
  4. High Power Consumption

    • Solution: Enable deep sleep or light sleep modes in your firmware.
    • Tip: Disconnect unused peripherals to reduce power draw.

FAQs

  • Q: Can the ESP32-S3 operate on 5V?
    A: No, the ESP32-S3 operates on 3.3V. Use a voltage regulator or level shifter for 5V systems.

  • Q: How do I reset the ESP32-S3?
    A: Press the EN (enable) button on the module to reset it.

  • Q: Can I use the ESP32-S3 for AI applications?
    A: Yes, the ESP32-S3 includes vector instructions and an AI coprocessor for lightweight AI tasks.

  • Q: Is the ESP32-S3 compatible with ESP-IDF?
    A: Yes, the ESP32-S3 is fully supported by the ESP-IDF development framework.

For more detailed information, refer to the official ESP32-S3 datasheet and technical reference manual.
