How to Use GPS NEO-M8N: Examples, Pinouts, and Specs

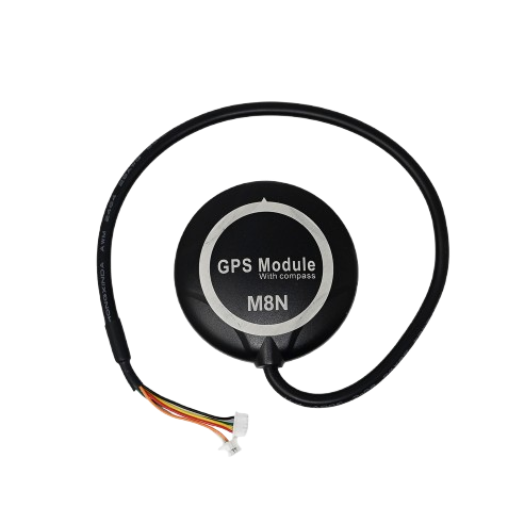

Image of GPS NEO-M8N
Cirkit Designer LogoDesign with GPS NEO-M8N in Cirkit Designer

Introduction

The GPS NEO-M8N is a high-performance GNSS (Global Navigation Satellite System) receiver module designed to deliver precise positioning data. It supports multiple satellite systems, including GPS, GLONASS, Galileo, and BeiDou, ensuring reliable and accurate location tracking in diverse environments. With its compact design, low power consumption, and fast time-to-first-fix (TTFF), the NEO-M8N is ideal for applications such as navigation, robotics, drones, IoT devices, and geolocation-based services.

Explore Projects Built with GPS NEO-M8N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
Image of ecs: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano GPS Tracker with GSM and OLED Display
Image of Smart GPS Tracker: A project utilizing GPS NEO-M8N in a practical application
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
STM32F4-Based Multi-Sensor GPS Tracking System
Image of Phase 1 fc: A project utilizing GPS NEO-M8N in a practical application
This circuit integrates an STM32F4 microcontroller with a GPS module (NEO 6M), an accelerometer and gyroscope (MPU-6050), a barometric pressure sensor (BMP280), and a compass (HMC5883L). The microcontroller communicates with the sensors via I2C and the GPS module via UART, enabling it to gather and process environmental and positional data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with GPS NEO-M8N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Yoon: A project utilizing GPS NEO-M8N in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecs: A project utilizing GPS NEO-M8N in a practical application
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart GPS Tracker: A project utilizing GPS NEO-M8N in a practical application
Arduino Nano GPS Tracker with GSM and OLED Display
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Phase 1 fc: A project utilizing GPS NEO-M8N in a practical application
STM32F4-Based Multi-Sensor GPS Tracking System
This circuit integrates an STM32F4 microcontroller with a GPS module (NEO 6M), an accelerometer and gyroscope (MPU-6050), a barometric pressure sensor (BMP280), and a compass (HMC5883L). The microcontroller communicates with the sensors via I2C and the GPS module via UART, enabling it to gather and process environmental and positional data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Navigation systems for vehicles and drones
  • Robotics requiring precise location tracking
  • IoT devices with geolocation capabilities
  • Surveying and mapping tools
  • Personal tracking devices

Technical Specifications

Key Technical Details

Parameter Specification
Satellite Systems Supported GPS, GLONASS, Galileo, BeiDou
Frequency Bands L1 (1575.42 MHz)
Position Accuracy 2.5 meters CEP (Circular Error Probable)
Time-to-First-Fix (TTFF) Cold Start: 26 seconds, Hot Start: 1 second
Update Rate Up to 10 Hz
Operating Voltage 2.7V to 3.6V
Power Consumption ~23 mA @ 3.0V (continuous tracking)
Communication Interface UART, I2C, SPI
Operating Temperature -40°C to +85°C
Dimensions 16 x 12.2 x 2.4 mm

Pin Configuration and Descriptions

Pin Name Pin Number Description
VCC 1 Power supply input (2.7V to 3.6V)
GND 2 Ground
TX 3 UART Transmit (data output)
RX 4 UART Receive (data input)
SDA 5 I2C Data Line
SCL 6 I2C Clock Line
PPS 7 Pulse Per Second output for timing
RST 8 Reset input (active low)

Usage Instructions

How to Use the GPS NEO-M8N in a Circuit

  1. Power Supply: Connect the VCC pin to a regulated 3.3V power source and the GND pin to ground.
  2. Communication Interface: Choose between UART, I2C, or SPI for communication with your microcontroller or host device:
    • For UART, connect the TX pin to the RX pin of the microcontroller and the RX pin to the TX pin of the microcontroller.
    • For I2C, connect the SDA and SCL pins to the corresponding I2C pins on the microcontroller.
  3. Antenna: Attach an active GPS antenna to the module's antenna connector for optimal signal reception.
  4. PPS Signal: Use the PPS pin if precise timing synchronization is required for your application.
  5. Reset: Optionally, connect the RST pin to a GPIO pin on the microcontroller for manual or software-controlled resets.

Important Considerations and Best Practices

  • Antenna Placement: Ensure the GPS antenna has a clear view of the sky for optimal satellite reception.
  • Power Supply: Use a stable and noise-free power source to avoid interference with the GPS signal.
  • Baud Rate: The default UART baud rate is 9600 bps. Configure your microcontroller to match this rate or adjust it as needed.
  • Update Rate: The module supports an update rate of up to 10 Hz. Adjust the rate based on your application's requirements.
  • Environmental Factors: Performance may be affected by tall buildings, dense foliage, or indoor environments.

Example: Connecting GPS NEO-M8N to Arduino UNO

Below is an example of how to connect and use the GPS NEO-M8N with an Arduino UNO via UART:

Wiring

GPS NEO-M8N Pin Arduino UNO Pin
VCC 3.3V
GND GND
TX Pin 4 (RX)
RX Pin 3 (TX)

Code Example

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
  gpsSerial.begin(9600); // Initialize GPS module at 9600 bps

  Serial.println("GPS NEO-M8N Test");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char c = gpsSerial.read(); // Read one character from GPS
    Serial.print(c); // Print the character to the Serial Monitor

    // Note: GPS data is in NMEA format. Use a library like TinyGPS++ to parse it.
  }
}

Notes

  • Use the TinyGPS++ library for parsing NMEA data (e.g., latitude, longitude, altitude).
  • Ensure the Arduino UNO's 3.3V pin can supply sufficient current for the GPS module.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No GPS Fix (No Satellite Lock):

    • Ensure the antenna has a clear view of the sky.
    • Check the antenna connection and ensure it is securely attached.
    • Verify the power supply voltage and current are within the module's specifications.
  2. No Data Output:

    • Confirm the UART connections (TX and RX) are correct.
    • Ensure the baud rate of the GPS module matches the microcontroller's configuration.
    • Check for loose or faulty wiring.
  3. Intermittent Signal Loss:

    • Avoid placing the module near sources of electromagnetic interference (e.g., motors, Wi-Fi modules).
    • Use a high-quality active GPS antenna for better signal reception.
  4. Module Not Powering On:

    • Verify the power supply voltage is within the 2.7V to 3.6V range.
    • Check for proper grounding and ensure all connections are secure.

FAQs

Q: Can the NEO-M8N work indoors?
A: While the module may work indoors, performance is significantly reduced due to limited satellite visibility. Use it in open areas for best results.

Q: How do I increase the update rate?
A: Use the u-blox u-center software to configure the module's update rate up to 10 Hz.

Q: What type of antenna should I use?
A: Use an active GPS antenna with a low noise figure and high gain for optimal performance.

Q: Can I use the NEO-M8N with a 5V microcontroller?
A: Yes, but you must use a level shifter to convert the 5V logic levels to 3.3V for the GPS module.

Q: How do I parse GPS data?
A: Use libraries like TinyGPS++ or NeoGPS to decode NMEA sentences and extract useful data such as latitude, longitude, and time.

By following this documentation, you can effectively integrate the GPS NEO-M8N module into your projects and troubleshoot common issues.
