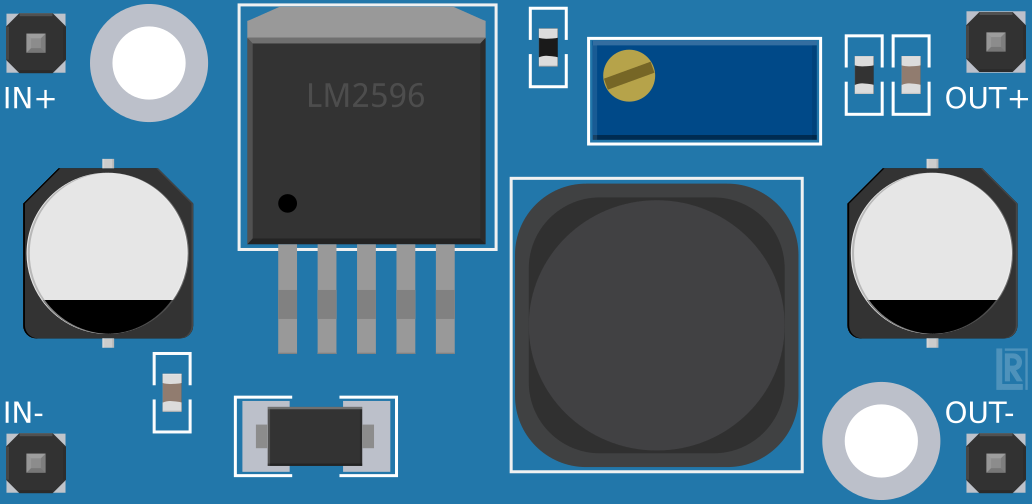

Image of LM2596
Cirkit Designer LogoDesign with LM2596 in Cirkit Designer

Introduction

The LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage into a stable, lower output voltage. It is capable of delivering up to 3A of output current, making it suitable for a wide range of power supply applications. The LM2596 features built-in thermal shutdown, current limiting, and an efficient switching design, which minimizes heat generation and power loss.

Explore Projects Built with LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Solar-Powered Current Monitoring System with OLED Display
Image of Solar Tracker and Monitoring System: A project utilizing LM2596 in a practical application
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
Image of Circuit Aayush: A project utilizing LM2596 in a practical application
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino GSM Security System with Motion Detection and Light Sensing
Image of Smart Home Security: A project utilizing LM2596 in a practical application
This circuit is designed to interface an Arduino UNO with a SIM800L GSM module, PIR sensor, photocell, buzzer, and multiple LEDs. It is likely intended for environmental monitoring and alerting, with the capability to communicate over GSM for remote notifications. The LM2596 module provides voltage regulation for the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 and SIM800L Based GPS Tracker with I2C LCD Display and Battery Power
Image of Little Innovator Competition: A project utilizing LM2596 in a practical application
This circuit integrates an ESP8266 NodeMCU microcontroller with a SIM800L GSM module, a GPS NEO 6M module, and a 16x2 I2C LCD display for communication and location tracking. It also includes a pushbutton for user input, a piezo buzzer for audio alerts, and is powered by a 2x 18650 battery pack through an LM2596 step-down module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Tracker and Monitoring System: A project utilizing LM2596 in a practical application
ESP32-Based Solar-Powered Current Monitoring System with OLED Display
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit Aayush: A project utilizing LM2596 in a practical application
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Home Security: A project utilizing LM2596 in a practical application
Arduino GSM Security System with Motion Detection and Light Sensing
This circuit is designed to interface an Arduino UNO with a SIM800L GSM module, PIR sensor, photocell, buzzer, and multiple LEDs. It is likely intended for environmental monitoring and alerting, with the capability to communicate over GSM for remote notifications. The LM2596 module provides voltage regulation for the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Little Innovator Competition: A project utilizing LM2596 in a practical application
ESP8266 and SIM800L Based GPS Tracker with I2C LCD Display and Battery Power
This circuit integrates an ESP8266 NodeMCU microcontroller with a SIM800L GSM module, a GPS NEO 6M module, and a 16x2 I2C LCD display for communication and location tracking. It also includes a pushbutton for user input, a piezo buzzer for audio alerts, and is powered by a 2x 18650 battery pack through an LM2596 step-down module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DC-DC power supply modules
  • Battery-powered devices
  • Voltage regulation for microcontrollers and sensors
  • LED drivers
  • Industrial and automotive electronics

Technical Specifications

The LM2596 is available in fixed output voltage versions (e.g., 3.3V, 5V, 12V) and an adjustable version. Below are the key technical details:

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V (adjustable version)
Maximum Output Current 3A
Efficiency Up to 90%
Switching Frequency 150 kHz
Output Voltage Tolerance ±4%
Operating Temperature Range -40°C to +125°C
Package Type TO-220, TO-263

Pin Configuration and Descriptions

The LM2596 typically comes in a 5-pin TO-220 or TO-263 package. Below is the pinout description:

Pin Number Pin Name Description
1 VIN Input voltage pin. Connect to the unregulated DC input voltage.
2 Output Regulated output voltage pin. Connect to the load.
3 Ground (GND) Ground pin. Connect to the system ground.
4 Feedback Feedback pin. Used to set the output voltage (adjustable version only).
5 ON/OFF Enable pin. Logic high enables the regulator; logic low disables it (optional).

Usage Instructions

How to Use the LM2596 in a Circuit

  1. Input Voltage: Ensure the input voltage (VIN) is within the range of 4.5V to 40V and is at least 3V higher than the desired output voltage.
  2. Output Voltage: For the adjustable version, use a resistor divider network connected to the Feedback pin to set the desired output voltage. The formula is: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ] where ( V_{REF} ) is 1.23V.
  3. Capacitors: Add input and output capacitors (e.g., 100µF electrolytic) to stabilize the circuit and reduce noise.
  4. Inductor: Select an appropriate inductor value based on the desired output current and voltage. A typical value is 33µH.
  5. Diode: Use a Schottky diode (e.g., 1N5822) for the freewheeling diode to improve efficiency.

Example Circuit

Below is a basic circuit diagram for the adjustable version of the LM2596:

VIN ----+----+----+----+----+----+----+----+----+----+----+----> VOUT
        |    |    |    |    |    |    |    |    |    |    |
       [C1] [L1] [D1] [R1] [R2] [C2] [GND]

Using LM2596 with Arduino UNO

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Connect the LM2596 output to the Arduino's 5V pin and ground.

Example Code

If the LM2596 is used to power sensors or modules connected to the Arduino, you can use the following code to read sensor data:

// Example: Reading analog sensor data powered by LM2596 regulator
const int sensorPin = A0; // Sensor connected to analog pin A0
int sensorValue = 0;      // Variable to store sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print sensor value to Serial Monitor
  delay(1000); // Wait for 1 second before next reading
}

Important Considerations and Best Practices

  • Use low Equivalent Series Resistance (ESR) capacitors for better performance.
  • Ensure proper heat dissipation by using a heatsink if the regulator operates at high currents.
  • Avoid exceeding the maximum input voltage (40V) or output current (3A) to prevent damage.
  • Place the input and output capacitors as close as possible to the regulator pins to minimize noise.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage is Incorrect:

    • Verify the resistor divider values (for adjustable version).
    • Check for loose or incorrect connections.
    • Ensure the input voltage is at least 3V higher than the desired output voltage.
  2. Regulator Overheating:

    • Ensure the load current does not exceed 3A.
    • Use a heatsink or improve ventilation around the regulator.
  3. No Output Voltage:

    • Check if the ON/OFF pin is properly connected (logic high to enable).
    • Verify the input voltage is within the specified range.
  4. High Output Ripple:

    • Use capacitors with low ESR.
    • Increase the value of the output capacitor.

FAQs

Q: Can the LM2596 be used for battery charging?
A: Yes, the LM2596 can be used for battery charging applications, but additional circuitry (e.g., current limiting) may be required to prevent overcharging.

Q: What is the efficiency of the LM2596?
A: The LM2596 can achieve up to 90% efficiency, depending on the input and output voltage difference and the load current.

Q: Can I use the LM2596 without a heatsink?
A: For low current applications (e.g., <1A), a heatsink may not be necessary. However, for higher currents, a heatsink is recommended to prevent overheating.

Q: Is the LM2596 suitable for audio applications?
A: The LM2596 may introduce switching noise, which can affect audio circuits. Additional filtering may be required for such applications.
