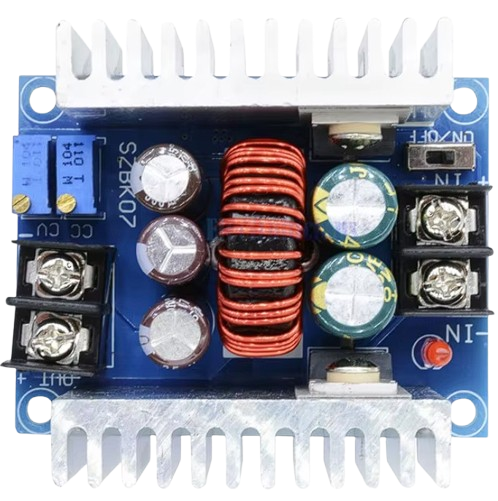

Image of  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig]
Cirkit Designer LogoDesign with DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in Cirkit Designer

DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V Documentation

1. Introduction

The DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V is a high-efficiency step-down voltage regulator designed to convert a higher DC input voltage (10V to 90V) into a lower, adjustable DC output voltage (1.5V to 60V). With a maximum output power of 100W and a current capacity of up to 6A, this converter is ideal for powering a wide range of electronic devices and systems.

Common Applications:

  • Powering low-voltage devices from high-voltage sources (e.g., batteries, solar panels).
  • Voltage regulation in automotive, industrial, and DIY electronics projects.
  • Supplying power to microcontrollers, sensors, and other low-power components.
  • Battery charging applications with adjustable voltage and current.

2. Technical Specifications

The following table outlines the key technical details of the DC-DC Buck Converter:

Parameter Value
Input Voltage Range 10V to 90V DC
Output Voltage Range 1.5V to 60V DC (adjustable)
Maximum Output Current 6A
Maximum Output Power 100W
Efficiency Up to 95% (depending on load)
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions Varies (typically compact design)
Manufacturer Unknown
Part ID 100W.6A 10-90V > 1.5V-60V

Pin Configuration and Descriptions

Pin Name Description
VIN+ Positive input voltage terminal (connect to the higher voltage source).
VIN- Negative input voltage terminal (connect to the ground of the input source).
VOUT+ Positive output voltage terminal (connect to the load or device to be powered).
VOUT- Negative output voltage terminal (connect to the ground of the load).
ADJ Adjustable potentiometer for setting the output voltage.

3. Usage Instructions

How to Use the DC-DC Buck Converter in a Circuit:

  1. Input Voltage Connection:

    • Connect the positive terminal of your DC power source to the VIN+ pin.
    • Connect the ground (negative terminal) of your DC power source to the VIN- pin.
    • Ensure the input voltage is within the specified range (10V to 90V).
  2. Output Voltage Connection:

    • Connect the positive terminal of your load to the VOUT+ pin.
    • Connect the ground (negative terminal) of your load to the VOUT- pin.
  3. Adjusting the Output Voltage:

    • Use the onboard potentiometer (marked as ADJ) to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage while adjusting to ensure accuracy.
  4. Load Connection:

    • Ensure the load does not exceed the maximum output current (6A) or power (100W).
    • If the load requires high current, ensure proper heat dissipation for the converter.

Important Considerations and Best Practices:

  • Heat Management: At high power levels, the converter may generate significant heat. Use a heatsink or active cooling (e.g., a fan) to prevent overheating.
  • Input Voltage: Ensure the input voltage is always higher than the desired output voltage for proper operation.
  • Polarity: Double-check the polarity of all connections to avoid damage to the converter or connected devices.
  • Current Limitation: If your load requires less current, the converter will automatically adjust, but ensure the load does not exceed the 6A limit.
  • Testing: Before connecting sensitive devices, test the output voltage with a multimeter to confirm it matches your requirements.

4. Example Application with Arduino UNO

The DC-DC Buck Converter can be used to power an Arduino UNO from a higher voltage source, such as a 24V battery. Below is an example setup and code:

Circuit Diagram:

  1. Connect the 24V battery's positive terminal to VIN+ and negative terminal to VIN-.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect VOUT+ to the Arduino UNO's 5V pin and VOUT- to the GND pin.

Arduino Code Example:

/*
  Example: Reading a sensor powered by the DC-DC Buck Converter
  This code reads an analog sensor connected to pin A0 of the Arduino UNO.
  The sensor is powered by the buck converter, which steps down 24V to 5V.
*/

const int sensorPin = A0;  // Analog pin connected to the sensor
int sensorValue = 0;       // Variable to store the sensor reading

void setup() {
  Serial.begin(9600);  // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT);  // Set the sensor pin as an input
}

void loop() {
  sensorValue = analogRead(sensorPin);  // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);  // Print the sensor value to the Serial Monitor
  delay(500);  // Wait for 500ms before the next reading
}

5. Troubleshooting and FAQs

Common Issues and Solutions:

Issue Possible Cause Solution
No output voltage Incorrect wiring or polarity Double-check all connections and ensure correct polarity.
Output voltage is unstable Input voltage is too low or fluctuating Ensure the input voltage is within the specified range and stable.
Converter overheats Load exceeds power or current limits Reduce the load or add a heatsink/fan for better heat dissipation.
Cannot adjust output voltage Faulty potentiometer or incorrect setup Verify the potentiometer is functional and properly connected.
Arduino resets or malfunctions Insufficient current supply Ensure the converter can supply enough current for the Arduino and peripherals.

Frequently Asked Questions (FAQs):

  1. Can I use this converter to charge a battery?

    • Yes, but ensure the output voltage and current are set according to the battery's specifications.
  2. What happens if I exceed the maximum input voltage?

    • Exceeding 90V may damage the converter. Always stay within the specified range.
  3. Can I use this converter with an AC input?

    • No, this converter is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC first.
  4. Is the output voltage regulated?

    • Yes, the output voltage is regulated and adjustable using the onboard potentiometer.
  5. Can I use this converter for audio applications?

    • Yes, but ensure proper filtering to minimize noise in sensitive audio circuits.

This documentation provides a comprehensive guide to using the DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V effectively. For further assistance, consult your supplier or an electronics expert.
