How to Use SD Card Module: Examples, Pinouts, and Specs

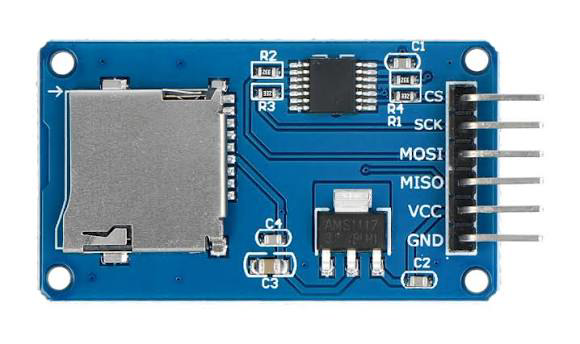

The SD Card Module is a compact and versatile component designed to interface SD cards with microcontrollers. It enables the storage and retrieval of data, making it ideal for applications requiring large amounts of non-volatile memory. Commonly used in data logging, multimedia storage, and file transfer systems, the SD Card Module is a staple in embedded systems and IoT projects.

• Operating Voltage: 3.3V (logic level) with onboard voltage regulator for 5V compatibility
• Current Consumption: ~100mA (varies with SD card type and operation)
• Supported SD Card Types: Standard SD and microSD cards (FAT16/FAT32 file systems)
• Communication Protocol: SPI (Serial Peripheral Interface)
• Dimensions: Typically 42mm x 24mm x 12mm (varies by manufacturer)

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source (check your module's specifications) and the GND pin to ground.
2. Connect SPI Pins:
   • Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller.
   • For Arduino UNO, the SPI pins are:
     • MISO: Pin 12
     • MOSI: Pin 11
     • SCK: Pin 13
     • CS: Any digital pin (commonly Pin 10)
3. Insert SD Card: Ensure the SD card is formatted to FAT16 or FAT32 before inserting it into the module.
4. Load Required Libraries: Use libraries like the Arduino SD library to simplify communication with the SD card.

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Check if the SD card is present and can be initialized
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // Don't proceed if the SD card initialization fails
    while (1);
  }
  Serial.println("Card initialized successfully!");

  // Create or open a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, SD card!"); // Write data to the file
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to file.");
  } else {
    Serial.println("Error opening file.");
  }
}

void loop() {
  // Nothing to do here
}

• Voltage Levels: Ensure the module's logic level matches your microcontroller (3.3V or 5V). Most modules have onboard regulators for 5V compatibility.
• SD Card Formatting: Always format the SD card to FAT16 or FAT32 before use. Unformatted or unsupported file systems may cause errors.
• Chip Select Pin: Avoid conflicts by ensuring the CS pin is unique if multiple SPI devices are connected.
• Library Compatibility: Use the latest version of the Arduino SD library for optimal performance and compatibility.

1. SD Card Initialization Fails

   • Cause: Incorrect wiring or unsupported SD card format.
   • Solution: Double-check connections and ensure the SD card is formatted to FAT16 or FAT32.

2. File Not Opening

   • Cause: Incorrect file path or insufficient permissions.
   • Solution: Verify the file name and ensure the file is opened in the correct mode (FILE_WRITE or FILE_READ).

3. Data Corruption

   • Cause: Improper handling of the SD card (e.g., removing it during operation).
   • Solution: Always close files using file.close() and avoid removing the SD card while the module is powered.

4. Slow Performance

   • Cause: Using a low-speed SD card or inefficient code.
   • Solution: Use a Class 10 or higher SD card and optimize your code for fewer read/write operations.

• Can I use microSD cards with this module? Yes, most SD Card Modules support microSD cards with FAT16 or FAT32 formatting.

• What is the maximum SD card size supported? This depends on the module and library used. Typically, cards up to 32GB are supported with the Arduino SD library.

• Can I connect multiple SD Card Modules to one microcontroller? Yes, but each module must have a unique CS pin to avoid conflicts on the SPI bus.

• Why is my SD card not detected? Ensure proper wiring, correct voltage levels, and that the SD card is inserted securely.
