How to Use SHIFT REGISTER: Examples, Pinouts, and Specs

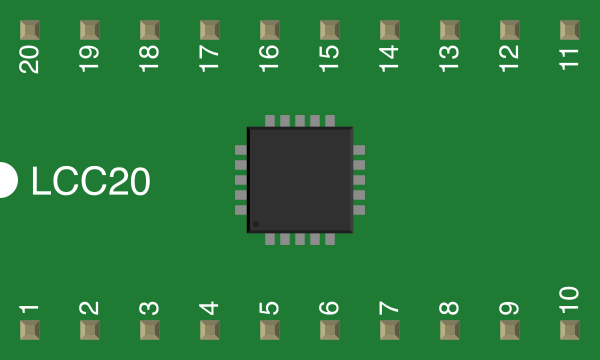

A shift register is a type of digital memory circuit used to store and shift data bits in a sequential manner. It is a versatile component commonly used in digital electronics for data storage, data transfer, and data manipulation. Shift registers are particularly useful in applications where the number of microcontroller pins is limited, as they allow serial-to-parallel or parallel-to-serial data conversion.

• Expanding the number of output pins on a microcontroller
• Driving LED arrays or 7-segment displays
• Serial-to-parallel or parallel-to-serial data conversion
• Temporary data storage in digital systems
• Signal delay or timing adjustments in digital circuits

Below are the technical specifications for a commonly used shift register, the 74HC595:

• Operating Voltage (Vcc): 2V to 6V
• Maximum Clock Frequency: 25 MHz (at 5V)
• Output Current (per pin): 6 mA (typical)
• Number of Output Pins: 8 (Q0 to Q7)
• Data Input Type: Serial (DS pin)
• Data Output Type: Parallel (Q0-Q7 pins)
• Latch Enable Pin: Required to update outputs
• Operating Temperature Range: -40°C to +125°C

The 74HC595 shift register has 16 pins, as described in the table below:

1. Power the Shift Register:
   • Connect the Vcc pin to a voltage source (e.g., 5V) and the GND pin to ground.
2. Connect the Control Pins:
   • Connect the SH_CP (shift clock) and ST_CP (latch clock) pins to GPIO pins on your microcontroller.
   • Optionally, connect the OE pin to ground to enable outputs or to a GPIO pin for dynamic control.
3. Input Data:
   • Use the DS pin to input serial data bits.
   • Trigger the SH_CP pin to shift the data into the register.
4. Latch the Data:
   • Pulse the ST_CP pin HIGH to transfer the shifted data to the output pins (Q0-Q7).
5. Cascading Multiple Registers:
   • Connect the Q7' pin of the first shift register to the DS pin of the next register.
   • Share the clock and latch pins across all registers.

• Use current-limiting resistors when driving LEDs or other loads to prevent damage to the shift register.
• Avoid exceeding the maximum voltage and current ratings to ensure reliable operation.
• Use decoupling capacitors (e.g., 0.1 µF) between Vcc and GND to reduce noise and improve stability.
• For high-speed applications, ensure proper grounding and minimize signal interference.

Below is an example of how to use the 74HC595 shift register with an Arduino UNO to control 8 LEDs:

// Define pin connections
const int dataPin = 2;  // DS pin of 74HC595 connected to Arduino pin 2
const int clockPin = 3; // SH_CP pin of 74HC595 connected to Arduino pin 3
const int latchPin = 4; // ST_CP pin of 74HC595 connected to Arduino pin 4

void setup() {
  // Set pin modes
  pinMode(dataPin, OUTPUT);
  pinMode(clockPin, OUTPUT);
  pinMode(latchPin, OUTPUT);
}

void loop() {
  // Example pattern to display on LEDs
  byte ledPattern = 0b10101010; // Binary pattern for LEDs (on/off)

  // Send data to shift register
  digitalWrite(latchPin, LOW); // Disable latch to load data
  shiftOut(dataPin, clockPin, MSBFIRST, ledPattern); // Shift out data
  digitalWrite(latchPin, HIGH); // Enable latch to update outputs

  delay(500); // Wait for 500ms
}

1. Outputs Not Updating:

   • Ensure the ST_CP (latch) pin is being pulsed HIGH after shifting data.
   • Verify that the OE pin is connected to ground or set LOW.

2. Incorrect Output Patterns:

   • Check the order of data bits being sent to the DS pin.
   • Ensure the SH_CP (shift clock) pin is receiving proper clock pulses.

3. No Output on LEDs:

   • Verify that the LEDs are connected with appropriate current-limiting resistors.
   • Check the power supply connections to the shift register.

4. Cascaded Registers Not Working:

   • Ensure the Q7' pin of the first register is connected to the DS pin of the next register.
   • Confirm that all shift registers share the same clock and latch signals.

Q: Can I use the 74HC595 with a 3.3V microcontroller?
A: Yes, the 74HC595 operates at voltages as low as 2V. Ensure the output current requirements are met.

Q: How many shift registers can I cascade?
A: Theoretically, you can cascade as many as needed, but practical limitations like signal degradation and timing delays may arise.

Q: What is the difference between SH_CP and ST_CP?
A: SH_CP is the shift clock, which moves data through the register, while ST_CP is the latch clock, which updates the outputs.

By following this documentation, you can effectively integrate a shift register into your digital circuits for expanded functionality and efficient data handling.
