How to Use Basic FET N-Channel: Examples, Pinouts, and Specs

The Basic FET N-Channel (Manufacturer Part ID: N-Channel MOSFET D2PAK) is a Field Effect Transistor (FET) that utilizes an N-type semiconductor for its channel. This component allows current to flow from the drain to the source when a positive voltage is applied to the gate. It is widely used in electronic circuits for switching and amplification purposes due to its high efficiency and fast switching capabilities.

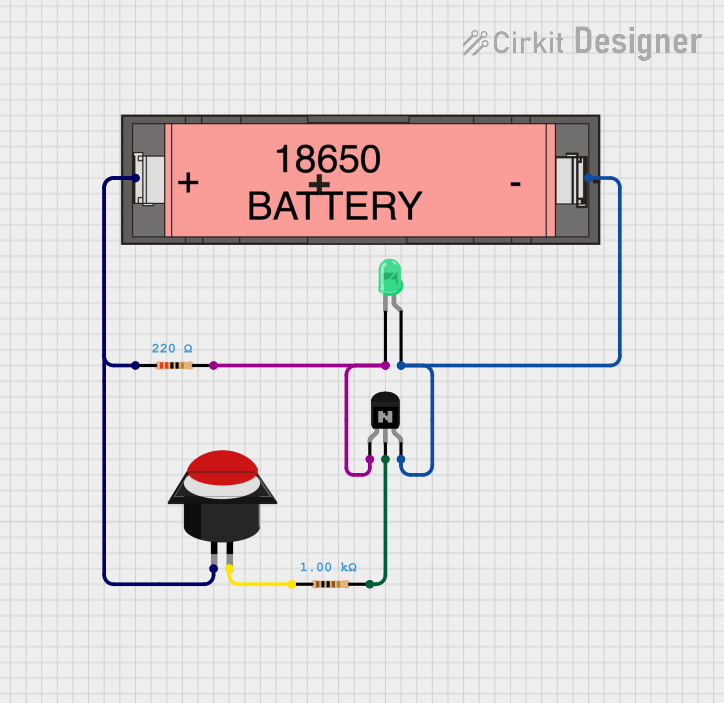

• Power switching in DC-DC converters
• Motor control circuits
• Amplification in audio and RF circuits
• LED drivers
• Battery management systems

Below are the key technical details for the Basic FET N-Channel:

The Basic FET N-Channel typically comes in a D2PAK package with the following pin configuration:

1. Gate Control: Apply a positive voltage (typically 5V to 10V) to the gate pin to turn the FET ON. Ensure the gate voltage does not exceed the maximum V_GS rating of ±20V.
2. Drain-Source Current Flow: When the gate is activated, current flows from the drain to the source. Ensure the current does not exceed the maximum I_D rating of 30A.
3. Heat Dissipation: Use a heatsink or proper PCB design to manage heat dissipation, especially when operating near the maximum power dissipation of 150W.

• Gate Resistor: Use a resistor (e.g., 10Ω) in series with the gate to limit inrush current and prevent damage to the gate.
• Flyback Diode: When switching inductive loads (e.g., motors), include a flyback diode across the load to protect the FET from voltage spikes.
• Static Sensitivity: Handle the FET carefully to avoid damage from electrostatic discharge (ESD). Use proper grounding and anti-static precautions.

The Basic FET N-Channel can be used with an Arduino UNO to control a DC motor. Below is an example circuit and code:

• Connect the Source pin to ground.
• Connect the Drain pin to one terminal of the motor. The other terminal of the motor connects to the positive power supply.
• Connect the Gate pin to a PWM-capable pin on the Arduino (e.g., Pin 9) through a 10Ω resistor.
• Add a flyback diode across the motor terminals to protect the FET.

// Example code to control a DC motor using an N-Channel MOSFET
// Connect the MOSFET Gate to Arduino Pin 9 through a 10Ω resistor

const int motorPin = 9; // PWM pin connected to the MOSFET Gate

void setup() {
  pinMode(motorPin, OUTPUT); // Set the motor pin as an output
}

void loop() {
  analogWrite(motorPin, 128); // Set motor speed to 50% (PWM value: 128)
  delay(5000);               // Run motor for 5 seconds

  analogWrite(motorPin, 0);  // Turn off the motor
  delay(5000);               // Wait for 5 seconds
}

1. FET Not Turning ON:

   • Ensure the gate voltage is high enough (above the threshold voltage, typically 2-4V).
   • Check for a proper connection between the gate and the control signal.

2. Overheating:

   • Verify that the current through the FET does not exceed the maximum I_D.
   • Ensure proper heat dissipation using a heatsink or thermal vias on the PCB.

3. No Current Flow:

   • Check the polarity of the connections (Drain, Source, and Gate).
   • Ensure the load is properly connected and functional.

4. Gate Damage:

   • Avoid exceeding the maximum V_GS rating of ±20V.
   • Use a gate resistor to limit inrush current.

Q1: Can this FET be used for high-frequency switching?
A1: Yes, the Basic FET N-Channel is suitable for high-frequency switching applications. However, ensure proper gate drive circuitry to minimize switching losses.

Q2: What is the purpose of the flyback diode?
A2: The flyback diode protects the FET from voltage spikes generated by inductive loads, such as motors or relays, during switching.

Q3: Can I use this FET with a 3.3V microcontroller?
A3: It depends on the threshold voltage (V_GS(th)) of the FET. If the threshold voltage is low enough (e.g., 2V), it may work. Otherwise, use a gate driver circuit to boost the gate voltage.

Q4: How do I calculate the required heatsink size?
A4: Use the formula:
( P = I_D^2 \times R_{DS(on)} )
where ( P ) is the power dissipated. Select a heatsink that can handle the calculated power dissipation.

By following this documentation, you can effectively integrate the Basic FET N-Channel into your electronic projects.
