The Adafruit PCA9685 PWM Servo Breakout is a 16-channel, 12-bit PWM driver designed for precise control of servos, LEDs, and other devices. It communicates via the I2C protocol, making it easy to integrate with microcontrollers like Arduino, Raspberry Pi, and others. This breakout board is ideal for robotics, automation, and lighting projects where multiple PWM outputs are required.

• Controlling multiple servo motors in robotics projects
• Driving LED arrays with precise brightness control
• Automation systems requiring multiple PWM outputs
• Animatronics and motion control systems
• Custom lighting effects for displays or art installations

• PWM Channels: 16 independent channels
• Resolution: 12-bit (4096 steps)
• Operating Voltage: 2.3V to 5.5V (logic level)
• Output Voltage: Up to 6V (external power supply required for servos)
• Communication Protocol: I2C (7-bit address, default: 0x40)
• Frequency Range: 24 Hz to 1526 Hz
• Maximum Current per Channel: 25 mA (for LEDs)
• External Power Supply: Required for driving servos or high-power devices
• Dimensions: 60mm x 25mm x 3mm

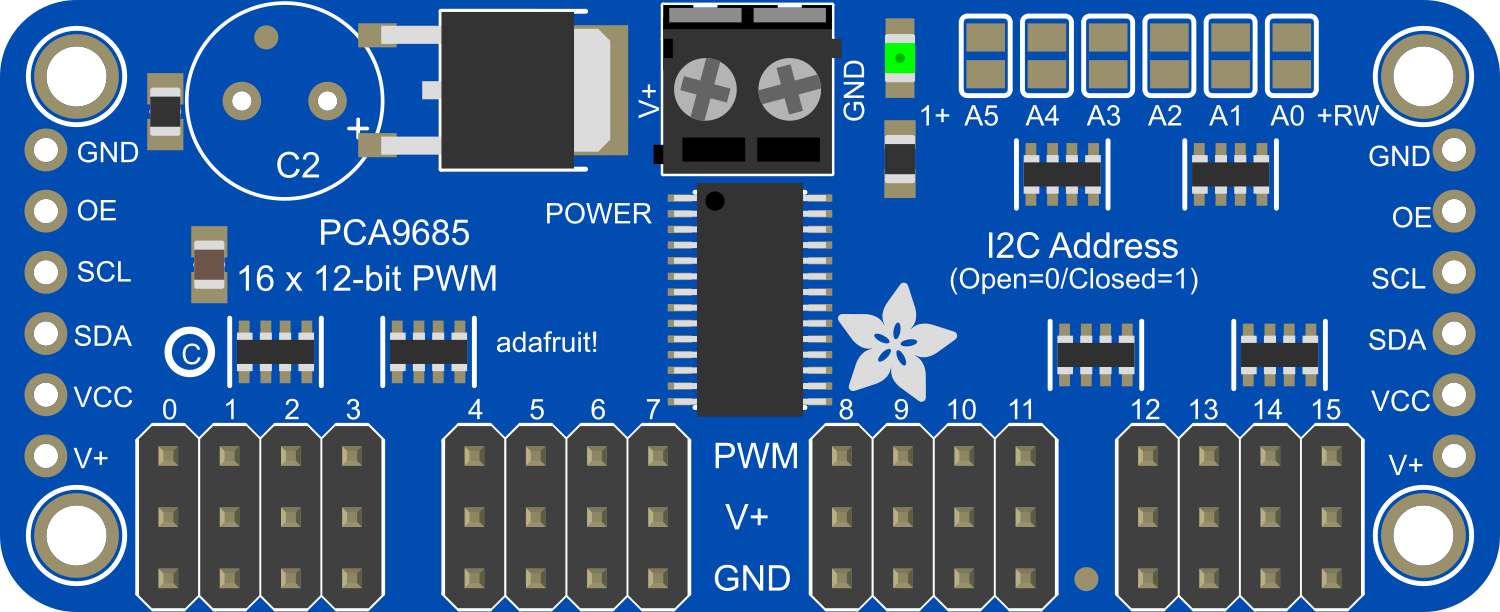

The Adafruit PCA9685 breakout board has the following key pins:

1. Power the Board:
   • Connect the VCC pin to the logic voltage of your microcontroller (e.g., 5V for Arduino).
   • Connect the GND pin to the ground of your microcontroller.
   • If driving servos or high-power devices, connect an external power supply (up to 6V) to the V+ pin.
2. Connect I2C Lines:
   • Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
   • Ensure pull-up resistors (typically 4.7kΩ) are present on the I2C lines if not already included.
3. Connect Devices:
   • Attach servos, LEDs, or other devices to the PWM output pins (0 to 15).
4. Set the I2C Address (if needed):
   • The default I2C address is 0x40. To change it, adjust the address pins (A0 to A5) on the board.
5. Program Your Microcontroller:
   • Use a library like the Adafruit PCA9685 library for Arduino to control the board.

• External Power Supply: When driving servos, ensure the external power supply can handle the total current draw of all connected devices.
• I2C Address Conflicts: If using multiple PCA9685 boards, assign unique I2C addresses to each by configuring the address pins.
• Frequency Setting: Set the PWM frequency based on your application. For servos, a frequency of 50 Hz is typical.
• Capacitor for Stability: Add a large capacitor (e.g., 1000 µF) across the V+ and GND pins to stabilize the power supply when driving servos.

Below is an example of how to control a servo using the Adafruit PCA9685 library:

#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>

// Create an instance of the PCA9685 driver
Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();

#define SERVOMIN 150 // Minimum pulse length count for the servo
#define SERVOMAX 600 // Maximum pulse length count for the servo

void setup() {
  Serial.begin(9600);
  Serial.println("Initializing PCA9685...");

  pwm.begin(); // Initialize the PCA9685
  pwm.setPWMFreq(50); // Set PWM frequency to 50 Hz for servos

  Serial.println("PCA9685 ready.");
}

void loop() {
  // Sweep servo on channel 0 from minimum to maximum position
  for (uint16_t pulselen = SERVOMIN; pulselen < SERVOMAX; pulselen++) {
    pwm.setPWM(0, 0, pulselen); // Set PWM signal on channel 0
    delay(10); // Small delay for smooth movement
  }

  // Sweep servo back from maximum to minimum position
  for (uint16_t pulselen = SERVOMAX; pulselen > SERVOMIN; pulselen--) {
    pwm.setPWM(0, 0, pulselen); // Set PWM signal on channel 0
    delay(10); // Small delay for smooth movement
  }
}

1. No Response from the Board:

   • Ensure the I2C connections (SDA, SCL) are correct and secure.
   • Verify that the I2C address matches the one configured on the board.
   • Check that the VCC and GND pins are properly connected.

2. Servos Not Moving:

   • Confirm that the external power supply is connected to the V+ pin and provides sufficient current.
   • Ensure the PWM frequency is set to 50 Hz for servos.
   • Verify that the servo signal wire is connected to the correct PWM output pin.

3. I2C Communication Errors:

   • Check for pull-up resistors on the SDA and SCL lines.
   • Ensure the I2C address does not conflict with other devices on the bus.

4. Overheating or Power Issues:

   • Use a capacitor across V+ and GND to stabilize the power supply.
   • Avoid exceeding the maximum current rating of the board.

Q: Can I use this board with a Raspberry Pi?
A: Yes, the PCA9685 is compatible with Raspberry Pi. Use the appropriate I2C pins (SDA, SCL) and libraries like Adafruit_PCA9685 in Python.

Q: How many boards can I chain together?
A: Up to 62 PCA9685 boards can be chained on the same I2C bus by configuring unique I2C addresses.

Q: What is the maximum current the board can handle?
A: Each channel can handle up to 25 mA for LEDs. For servos, the current is limited by the external power supply connected to V+.

Q: Can I control DC motors with this board?
A: Yes, but you will need an additional motor driver circuit to handle the higher current requirements of DC motors.
