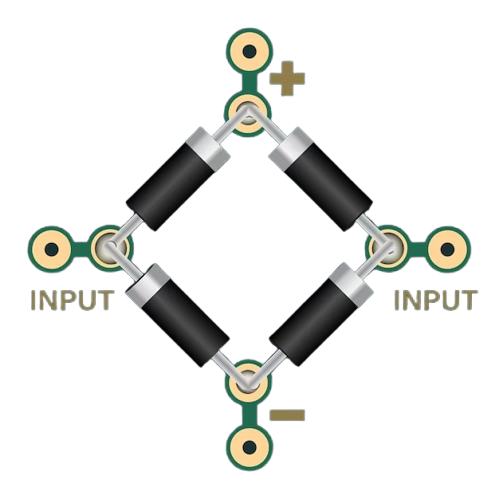

Image of BRIDGE - 1N4007
Cirkit Designer LogoDesign with BRIDGE - 1N4007 in Cirkit Designer

Introduction

The 1N4007 is a silicon rectifier diode commonly used for converting alternating current (AC) to direct current (DC). It is part of the 1N400x series of diodes, known for their reliability and efficiency in rectification applications. With a maximum reverse voltage of 1000V and a forward current rating of 1A, the 1N4007 is ideal for use in power supplies, battery chargers, and other electronic circuits requiring rectification.

Explore Projects Built with BRIDGE - 1N4007

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
NPN Transistor-Based Signal Interface with Relimate Connectors
Image of Mini cross: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Piezo Sensor-Based LED Indicator with Pushbutton Control
Image of project: A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a rectifier and indicator system that uses multiple 1N4007 diodes to rectify an AC signal, a piezo sensor for signal detection, and a pushbutton to control the circuit. The rectified signal is filtered by an electrolytic capacitor and a resistor, and the presence of the signal is indicated by a blue LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Voltage Regulation and LED Indicator
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing BRIDGE - 1N4007 in a practical application
This circuit is a basic AC to DC power supply with voltage regulation. It includes a transformer to step down the AC voltage, a bridge rectifier made of 1N4007 diodes to convert AC to DC, an electrolytic capacitor for smoothing, and a voltage regulator to provide a stable DC output. An LED with a current-limiting resistor indicates the presence of the output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BRIDGE - 1N4007

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini cross: A project utilizing BRIDGE - 1N4007 in a practical application
NPN Transistor-Based Signal Interface with Relimate Connectors
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing BRIDGE - 1N4007 in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project: A project utilizing BRIDGE - 1N4007 in a practical application
Piezo Sensor-Based LED Indicator with Pushbutton Control
This circuit is a rectifier and indicator system that uses multiple 1N4007 diodes to rectify an AC signal, a piezo sensor for signal detection, and a pushbutton to control the circuit. The rectified signal is filtered by an electrolytic capacitor and a resistor, and the presence of the signal is indicated by a blue LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of 8 volt AC to DC convertor (1): A project utilizing BRIDGE - 1N4007 in a practical application
AC to DC Power Supply with Voltage Regulation and LED Indicator
This circuit is a basic AC to DC power supply with voltage regulation. It includes a transformer to step down the AC voltage, a bridge rectifier made of 1N4007 diodes to convert AC to DC, an electrolytic capacitor for smoothing, and a voltage regulator to provide a stable DC output. An LED with a current-limiting resistor indicates the presence of the output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • AC to DC conversion in power supplies
  • Full-wave and half-wave rectifier circuits
  • Voltage clamping and protection circuits
  • Freewheeling diodes in inductive loads
  • General-purpose rectification in low- to medium-power applications

Technical Specifications

The following table outlines the key technical specifications of the 1N4007 diode:

Parameter Value
Maximum Reverse Voltage 1000V
Maximum Forward Current 1A
Peak Surge Current 30A (8.3ms single half-sine)
Forward Voltage Drop 1.1V (at 1A forward current)
Reverse Recovery Time 2µs
Operating Temperature -55°C to +150°C
Package Type DO-41 (Axial Lead)

Pin Configuration and Descriptions

The 1N4007 is a two-terminal device with the following pin configuration:

Pin Description
Anode Positive terminal (current enters here)
Cathode Negative terminal (current exits here)

The cathode is marked with a silver or white band on the diode body for easy identification.

Usage Instructions

How to Use the 1N4007 in a Circuit

  1. Identify the Terminals: Locate the cathode (marked with a silver/white band) and the anode.
  2. Connect in the Correct Orientation:
    • For rectification, connect the anode to the AC source and the cathode to the positive side of the load.
    • Ensure the diode is oriented correctly to prevent reverse current flow.
  3. Use in a Bridge Rectifier:
    • Combine four 1N4007 diodes to form a full-wave bridge rectifier.
    • Connect the AC input to the two opposite corners of the bridge and the DC output to the remaining two corners.
  4. Add Filtering: Use a capacitor across the DC output to smooth the rectified voltage.

Important Considerations and Best Practices

  • Current Limiting: Ensure the load current does not exceed the 1A forward current rating.
  • Heat Dissipation: For continuous operation near the maximum current rating, consider adding heat sinks or ensuring proper ventilation.
  • Voltage Rating: Do not exceed the 1000V reverse voltage rating to avoid breakdown.
  • Polarity: Always verify the diode's orientation before powering the circuit.

Example: Using 1N4007 with an Arduino UNO

The 1N4007 can be used to protect an Arduino UNO from reverse polarity or to create a simple rectifier circuit for powering the board. Below is an example of a rectifier circuit:

Circuit Description

  • A 1N4007 diode is used to rectify an AC signal and provide DC power to the Arduino UNO.
  • A capacitor is added to smooth the DC output.

Code Example

The following Arduino code demonstrates reading an analog signal from a rectified DC source:

// Example: Reading a rectified DC voltage with Arduino UNO
const int analogPin = A0; // Pin A0 is used to read the rectified voltage
int sensorValue = 0;      // Variable to store the analog reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  sensorValue = analogRead(analogPin); // Read the voltage on pin A0
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage (0-5V range)

  // Print the voltage to the Serial Monitor
  Serial.print("Rectified Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Diode Overheating:

    • Cause: Exceeding the 1A forward current rating or insufficient heat dissipation.
    • Solution: Reduce the load current or improve ventilation around the diode.
  2. No Output Voltage:

    • Cause: Incorrect diode orientation or a damaged diode.
    • Solution: Verify the anode and cathode connections. Replace the diode if necessary.
  3. Low Output Voltage:

    • Cause: High forward voltage drop or insufficient filtering.
    • Solution: Check the load current and ensure it is within the diode's specifications. Add a larger capacitor for better filtering.
  4. Diode Failure:

    • Cause: Exceeding the reverse voltage rating or surge current limit.
    • Solution: Use a diode with a higher voltage or current rating if needed.

FAQs

Q1: Can I use the 1N4007 for high-frequency applications?
A1: No, the 1N4007 is not suitable for high-frequency applications due to its relatively slow reverse recovery time (2µs). Use a fast-recovery or Schottky diode for such applications.

Q2: Can the 1N4007 handle AC voltages above 1000V?
A2: No, the maximum reverse voltage rating is 1000V. Exceeding this value can damage the diode.

Q3: How do I test if a 1N4007 diode is working?
A3: Use a multimeter in diode mode. A working diode will show a forward voltage drop (~0.7V) when the positive lead is on the anode and the negative lead is on the cathode. It should show no continuity in reverse.

Q4: Can I use the 1N4007 in a solar panel circuit?
A4: Yes, the 1N4007 can be used as a blocking diode in solar panel circuits to prevent reverse current flow at night.
