How to Use power supply 5V 2A: Examples, Pinouts, and Specs

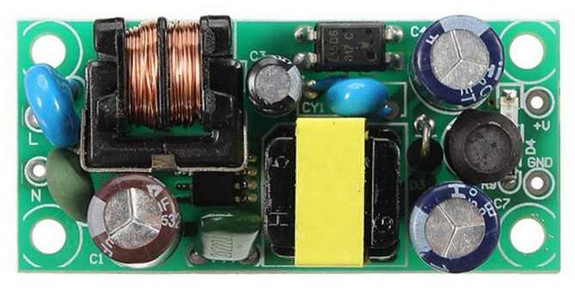

Image of power supply 5V 2A
Cirkit Designer LogoDesign with power supply 5V 2A in Cirkit Designer

Introduction

The Power Supply 5V 2A (Manufacturer: Supply, Part ID: 5v2a) is a compact and reliable power source designed to deliver a stable 5-volt DC output with a maximum current of 2 amperes. This power supply is ideal for powering a wide range of electronic devices, including microcontrollers, sensors, and small appliances. Its consistent voltage output ensures the safe and efficient operation of sensitive electronic components.

Explore Projects Built with power supply 5V 2A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing power supply 5V 2A in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
Image of Power supply: A project utilizing power supply 5V 2A in a practical application
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered USB Charger with LED Indicator and DC Motor
Image of Copy of Hand Crank mobile charger : A project utilizing power supply 5V 2A in a practical application
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V to 5V Power Supply with LED Indicator and Push Switch
Image of Power Supply LVCO: A project utilizing power supply 5V 2A in a practical application
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with power supply 5V 2A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rfdriver: A project utilizing power supply 5V 2A in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power supply: A project utilizing power supply 5V 2A in a practical application
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Hand Crank mobile charger : A project utilizing power supply 5V 2A in a practical application
Battery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Supply LVCO: A project utilizing power supply 5V 2A in a practical application
12V to 5V Power Supply with LED Indicator and Push Switch
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontroller boards such as Arduino, Raspberry Pi, and ESP32.
  • Supplying power to sensors, relays, and small motors in DIY projects.
  • Charging USB-powered devices.
  • Providing a stable power source for LED strips and other low-power lighting systems.
  • General-purpose use in prototyping and testing electronic circuits.

Technical Specifications

The following table outlines the key technical details of the Power Supply 5V 2A:

Parameter Specification
Output Voltage 5V DC
Maximum Output Current 2A
Input Voltage Range 100-240V AC, 50/60Hz
Output Power 10W
Efficiency ≥85%
Connector Type DC barrel jack (5.5mm outer, 2.1mm inner)
Protection Features Overcurrent, overvoltage, and short-circuit protection
Operating Temperature 0°C to 40°C
Dimensions 70mm x 40mm x 30mm
Weight 100g

Pin Configuration and Descriptions

The Power Supply 5V 2A typically has a DC barrel jack output. The pin configuration is as follows:

Pin Description
Center Positive terminal (+5V)
Outer Negative terminal (GND)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Power Supply to an AC Outlet: Plug the power supply into a standard AC outlet (100-240V AC).
  2. Connect the Output to Your Circuit:
    • Insert the DC barrel jack into the corresponding input port of your device or circuit.
    • Ensure the polarity matches: the center pin is positive (+5V), and the outer sleeve is ground (GND).
  3. Verify Connections: Double-check all connections to ensure proper polarity and avoid short circuits.
  4. Power On Your Circuit: Once connected, the power supply will provide a stable 5V output to your device.

Important Considerations and Best Practices

  • Do Not Exceed the Maximum Current: Ensure the total current draw of your circuit does not exceed 2A to prevent overheating or damage to the power supply.
  • Check Polarity: Always verify the polarity of the DC barrel jack before connecting it to your circuit.
  • Use Proper Heat Dissipation: If the power supply operates near its maximum load for extended periods, ensure adequate ventilation to prevent overheating.
  • Avoid Short Circuits: Ensure there are no exposed wires or connections that could cause a short circuit.
  • Use with Arduino UNO: This power supply can be connected to the Arduino UNO via the DC barrel jack input. The Arduino's onboard voltage regulator will handle the 5V input.

Example: Using with Arduino UNO

// Example code to blink an LED using Arduino UNO powered by the 5V 2A power supply

// Define the pin connected to the LED
const int ledPin = 13; // Onboard LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Note: Ensure the Arduino UNO's total current draw (including connected components) does not exceed 2A.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: The power supply is not properly connected to the AC outlet.
    • Solution: Verify that the power supply is securely plugged into a working AC outlet.
  2. Device Not Powering On:

    • Cause: Incorrect polarity or loose connections.
    • Solution: Check the polarity of the DC barrel jack and ensure all connections are secure.
  3. Overheating:

    • Cause: The power supply is operating near or beyond its maximum current rating.
    • Solution: Reduce the load on the power supply or ensure proper ventilation.
  4. Intermittent Power Loss:

    • Cause: Faulty or damaged cables.
    • Solution: Inspect the cables for damage and replace them if necessary.

FAQs

Q: Can this power supply be used with a Raspberry Pi?
A: Yes, the Power Supply 5V 2A is suitable for powering Raspberry Pi models that require a 5V input. However, ensure the total current draw (including peripherals) does not exceed 2A.

Q: Is this power supply safe for sensitive electronics?
A: Yes, the power supply includes overcurrent, overvoltage, and short-circuit protection, making it safe for use with sensitive electronics.

Q: Can I use this power supply to charge USB devices?
A: Yes, with the appropriate adapter, this power supply can charge USB devices that require 5V and up to 2A.

Q: What happens if the load exceeds 2A?
A: The power supply's overcurrent protection will activate, shutting down the output to prevent damage. Reduce the load and reconnect the power supply.
