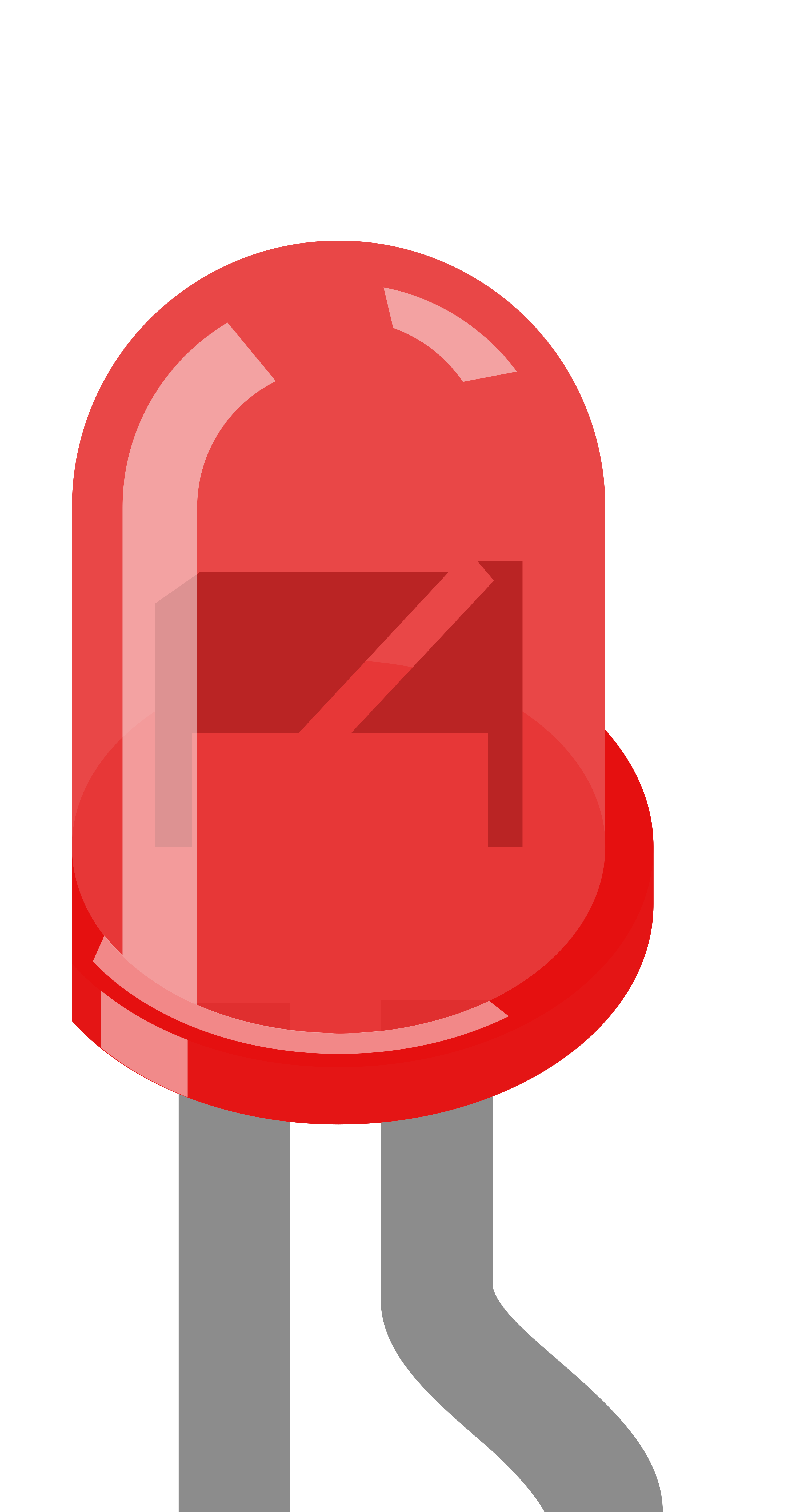

The Two Pin Red LED is a light-emitting diode that emits red light when powered. It features two pins: a longer pin (anode) and a shorter pin (cathode), making it easy to identify polarity. The long pins are particularly useful for breadboard prototyping or soldering in permanent circuits. This LED is widely used in electronics for visual indicators, status lights, and decorative lighting.
Explore Projects Built with LED: Two Pin (red) - Long Pins
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
This circuit consists of a 9V battery powering two red LEDs, each in series with a 360 Ohm resistor. The LEDs are connected in parallel, with each LED-resistor pair forming a separate branch.
The circuit features multiple red LEDs with individual current-limiting resistors, connected in parallel to a microcontroller for independent control. It is likely used for visual indicators or displays, with the capability to control the state and brightness of each LED.
Below are the key technical details for the Two Pin Red LED:
Parameter
Value
Forward Voltage (Vf)
1.8V to 2.2V
Forward Current (If)
20mA (typical)
Maximum Current (Imax)
30mA
Wavelength
620nm to 630nm (red light)
Viewing Angle
20° to 30°
Operating Temperature
-40°C to +85°C
Pin Length
Long pins (~25mm)
Pin Configuration
The Two Pin Red LED has the following pin configuration:
Pin
Name
Description
Long Pin
Anode (+)
Connect to the positive terminal of the power source.
Short Pin
Cathode (-)
Connect to the negative terminal or ground.
Usage Instructions
How to Use the LED in a Circuit
Identify the Pins: The longer pin is the anode (+), and the shorter pin is the cathode (-).
Connect to Power:
Connect the anode to the positive terminal of the power source.
Connect the cathode to the negative terminal or ground.
Use a Resistor: Always use a current-limiting resistor in series with the LED to prevent damage. The resistor value can be calculated using Ohm's Law:
[
R = \frac{V_{supply} - V_f}{I_f}
]
Where:
(V_{supply}) is the supply voltage.
(V_f) is the forward voltage of the LED (1.8V to 2.2V).
(I_f) is the desired forward current (typically 20mA).
For example, with a 5V supply:
[
R = \frac{5V - 2V}{0.02A} = 150\Omega
]
Insert into Circuit: Place the LED and resistor in the circuit, ensuring correct polarity.
Example: Connecting to an Arduino UNO
The Two Pin Red LED can be easily connected to an Arduino UNO for control. Below is an example of how to blink the LED:
Circuit Setup
Connect the anode (long pin) of the LED to a digital pin (e.g., pin 13) on the Arduino through a 220Ω resistor.
Connect the cathode (short pin) to the Arduino's GND.
Arduino Code
// LED Blink Example for Two Pin Red LED
// Connect the anode (long pin) to pin 13 through a 220Ω resistor
// Connect the cathode (short pin) to GND
const int ledPin = 13; // Pin connected to the LED
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Important Considerations
Polarity: LEDs are polarized components. Reversing the polarity can prevent the LED from lighting up or damage it.
Current Limiting: Always use a resistor to limit the current through the LED.
Voltage Range: Ensure the supply voltage does not exceed the LED's forward voltage without a resistor.
Troubleshooting and FAQs
Common Issues
LED Does Not Light Up
Cause: Incorrect polarity.
Solution: Ensure the anode is connected to the positive terminal and the cathode to ground.
Cause: No current-limiting resistor or incorrect resistor value.
Solution: Use a resistor with the correct value (e.g., 150Ω for a 5V supply).
LED is Dim
Cause: Insufficient current.
Solution: Check the resistor value and ensure it allows enough current (e.g., 20mA).
LED Burns Out
Cause: Excessive current due to no resistor or a low-value resistor.
Solution: Always use a resistor to limit the current.
Flickering LED
Cause: Unstable power supply or loose connections.
Solution: Check the power source and ensure all connections are secure.
FAQs
Q: Can I connect the LED directly to a 3.3V or 5V power source?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.
Q: What happens if I reverse the polarity?
A: The LED will not light up. In most cases, it will not be damaged, but prolonged reverse voltage may harm the LED.
Q: Can I use this LED with a PWM signal?
A: Yes, the LED can be dimmed or controlled using a PWM signal from a microcontroller like an Arduino.
Q: How do I calculate the resistor value for different supply voltages?
A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}), where (V_f) is the forward voltage and (I_f) is the desired current.
This concludes the documentation for the Two Pin Red LED.
