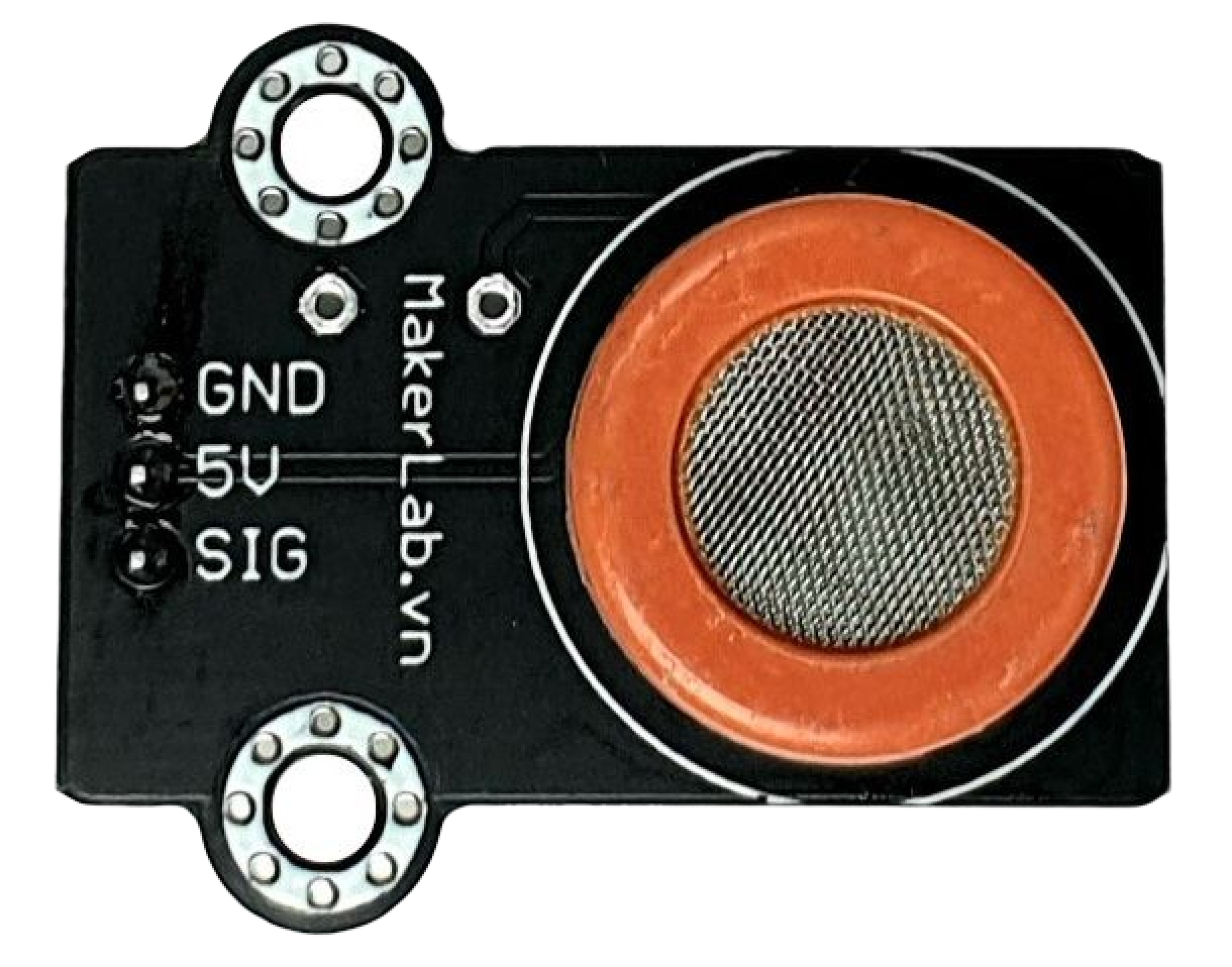

How to Use MKE-S07 MQ-3 Alcohol Sensor: Examples, Pinouts, and Specs

The MKE-S07 MQ-3 Alcohol Sensor is a versatile and reliable gas sensor designed to detect the presence of alcohol in the air. It is widely used in breathalyzers, alcohol detection systems, and other safety or monitoring devices. The sensor operates by measuring the concentration of alcohol vapors and providing an analog output proportional to the detected level.

This sensor is particularly popular in DIY electronics projects and industrial applications due to its affordability, ease of use, and compatibility with microcontrollers like Arduino.

• Breathalyzer devices
• Alcohol detection systems in vehicles
• Industrial safety systems
• Home automation projects
• Educational and prototyping purposes

Below are the key technical details of the MKE-S07 MQ-3 Alcohol Sensor:

The MKE-S07 MQ-3 Alcohol Sensor typically comes with six pins. Below is the pin configuration:

1. Power the Sensor: Connect the H1 pin to a 5V power supply and the H2 pin to ground. This powers the internal heater, which is essential for the sensor's operation.
2. Connect the Output: Use the A pin to read the analog output signal. This pin provides a voltage proportional to the alcohol concentration in the air.
3. Load Resistor: Place a load resistor (RL) between the A pin and ground. The value of RL can be adjusted based on the desired sensitivity and range.
4. Preheat the Sensor: Allow the sensor to preheat for at least 24 hours before taking stable readings. This ensures accurate measurements.
5. Read the Output: Use an ADC (Analog-to-Digital Converter) pin on a microcontroller, such as an Arduino, to read the voltage from the A pin.

• Preheating: The sensor requires a long preheating time (≥ 24 hours) for optimal performance. During this time, the heater stabilizes the sensor's internal environment.
• Calibration: Calibrate the sensor in a controlled environment with known alcohol concentrations to improve accuracy.
• Ventilation: Ensure proper ventilation around the sensor to avoid saturation or false readings.
• Avoid Contaminants: Keep the sensor away from water, oil, and other contaminants that could damage its surface or affect its readings.
• Power Supply: Use a stable 5V power supply to avoid fluctuations in the heater voltage.

Below is an example of how to interface the MQ-3 sensor with an Arduino UNO to read alcohol concentration:

// Define the analog pin connected to the MQ-3 sensor
const int sensorPin = A0; // Analog pin A0 is used for the sensor output

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  int sensorValue = analogRead(sensorPin);
  // Read the analog value from the sensor

  float voltage = sensorValue * (5.0 / 1023.0);
  // Convert the analog value to voltage (5V reference, 10-bit ADC)

  Serial.print("Sensor Value: ");
  Serial.print(sensorValue); // Print raw sensor value
  Serial.print(" | Voltage: ");
  Serial.print(voltage); // Print the calculated voltage
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

1. No Output Signal

   • Cause: The heater pins (H1 and H2) are not properly connected.
   • Solution: Ensure H1 is connected to 5V and H2 is connected to ground.

2. Inconsistent Readings

   • Cause: The sensor has not been preheated for the required time.
   • Solution: Allow the sensor to preheat for at least 24 hours before use.

3. Low Sensitivity

   • Cause: Incorrect load resistor value.
   • Solution: Adjust the load resistor (RL) to a value between 200Ω and 10kΩ for optimal sensitivity.

4. False Readings

   • Cause: Contaminants or poor ventilation.
   • Solution: Ensure the sensor is placed in a clean, well-ventilated area.

Q: Can the MQ-3 sensor detect other gases besides alcohol?
A: While the MQ-3 sensor is optimized for alcohol detection, it may respond to other gases like benzene or methane. However, its sensitivity to these gases is much lower.

Q: How do I calibrate the sensor?
A: Calibration involves exposing the sensor to a known alcohol concentration and adjusting the output readings accordingly. This can be done using a reference gas or a controlled environment.

Q: Can I use the MQ-3 sensor with a 3.3V microcontroller?
A: The sensor requires a 5V power supply for the heater. However, you can use a voltage divider or level shifter to interface the analog output with a 3.3V microcontroller.

Q: How long does the sensor last?
A: The MQ-3 sensor has a typical lifespan of 2-3 years under normal operating conditions. Proper care and maintenance can extend its life.
