How to Use 12V - 12RPM: Examples, Pinouts, and Specs

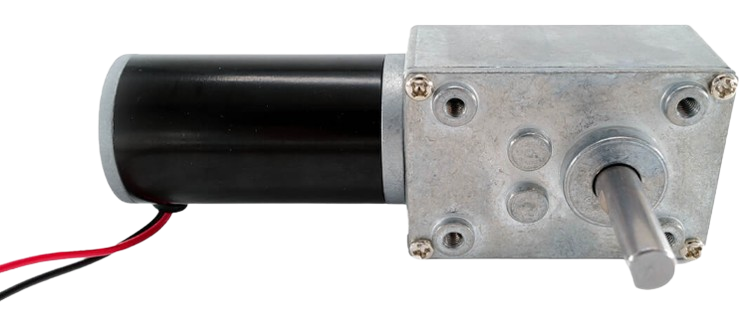

Image of 12V - 12RPM
Cirkit Designer LogoDesign with 12V - 12RPM in Cirkit Designer

Introduction

The 12V - 12RPM is a DC motor designed for low-speed, high-torque applications. Operating at 12 volts and achieving a rotational speed of 12 revolutions per minute (RPM), this motor is ideal for projects requiring precise and controlled movement. Its robust design and reliable performance make it a popular choice for robotics, conveyor systems, and automated mechanisms.

Explore Projects Built with 12V - 12RPM

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual DC Motor Control Circuit with Speed Regulation and Indicator Lamp
Image of egg peeling machine: A project utilizing 12V - 12RPM in a practical application
This circuit includes a 12V 200Ah battery that powers a water pump and two DC motors, each controlled by a separate 12v~40v 10A PWM DC motor speed controller. A rocker switch (SPST) is used to control the power flow to the water pump and a pilot lamp indicates when the pump is powered. The DC motors' speed can be adjusted by the PWM controllers, and wire connectors are used to organize the connections between components.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V Battery-Powered Motor Control Circuit
Image of moter: A project utilizing 12V - 12RPM in a practical application
This circuit consists of a 12V 200Ah battery connected to a 12V geared motor, with a 200 Ohm resistor in series with one of the motor's terminals. The battery provides power to the motor, and the resistor limits the current flowing into the motor, potentially to control speed or to protect the motor from excessive current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Motor Control System with Speed Regulation
Image of wheel chair: A project utilizing 12V - 12RPM in a practical application
This circuit is a motor control system powered by two 12V batteries connected in series, with a 3-position switch to control a PWM motor speed controller. The system includes a pilot lamp for status indication and a NI-MH battery charger powered by an AC source.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V Battery-Powered Fan System
Image of sdfsdfdfSDf: A project utilizing 12V - 12RPM in a practical application
This circuit connects a 120mm 12V DC fan to a 12V 7Ah battery. The fan's positive and negative terminals are directly connected to the corresponding positive and negative terminals of the battery, allowing the fan to operate at its rated voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 12V - 12RPM

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of egg peeling machine: A project utilizing 12V - 12RPM in a practical application
Dual DC Motor Control Circuit with Speed Regulation and Indicator Lamp
This circuit includes a 12V 200Ah battery that powers a water pump and two DC motors, each controlled by a separate 12v~40v 10A PWM DC motor speed controller. A rocker switch (SPST) is used to control the power flow to the water pump and a pilot lamp indicates when the pump is powered. The DC motors' speed can be adjusted by the PWM controllers, and wire connectors are used to organize the connections between components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of moter: A project utilizing 12V - 12RPM in a practical application
12V Battery-Powered Motor Control Circuit
This circuit consists of a 12V 200Ah battery connected to a 12V geared motor, with a 200 Ohm resistor in series with one of the motor's terminals. The battery provides power to the motor, and the resistor limits the current flowing into the motor, potentially to control speed or to protect the motor from excessive current.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wheel chair: A project utilizing 12V - 12RPM in a practical application
Battery-Powered DC Motor Control System with Speed Regulation
This circuit is a motor control system powered by two 12V batteries connected in series, with a 3-position switch to control a PWM motor speed controller. The system includes a pilot lamp for status indication and a NI-MH battery charger powered by an AC source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of sdfsdfdfSDf: A project utilizing 12V - 12RPM in a practical application
12V Battery-Powered Fan System
This circuit connects a 120mm 12V DC fan to a 12V 7Ah battery. The fan's positive and negative terminals are directly connected to the corresponding positive and negative terminals of the battery, allowing the fan to operate at its rated voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotic arms and grippers
  • Conveyor belts for light loads
  • Turntables and display stands
  • Automated door mechanisms
  • DIY projects requiring slow, steady rotation

Technical Specifications

Below are the key technical details of the 12V - 12RPM DC motor:

Parameter Value
Operating Voltage 12V DC
Speed 12 RPM
Torque ~10 kg·cm (varies by model)
Current Consumption ~200 mA (no load)
Stall Current ~1.2 A
Gearbox Type Metal gear reduction
Shaft Diameter 6 mm
Motor Dimensions ~37 mm diameter, 70 mm length

Pin Configuration and Descriptions

The 12V - 12RPM motor typically has two terminals for connection:

Pin Description
+ Positive terminal (connect to 12V)
- Negative terminal (connect to GND)

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the motor's positive terminal to a 12V DC power source and the negative terminal to ground. Ensure the power supply can handle the motor's stall current (~1.2 A).
  2. Motor Driver: For controlled operation, use an H-bridge motor driver (e.g., L298N or L293D). This allows you to control the motor's direction and speed using a microcontroller like an Arduino.
  3. Speed Control: Use Pulse Width Modulation (PWM) to adjust the motor's speed. Most motor drivers support PWM input.
  4. Direction Control: Reverse the polarity of the terminals to change the motor's rotation direction. This can be achieved programmatically using an H-bridge.

Important Considerations and Best Practices

  • Avoid Overloading: Do not exceed the motor's torque rating to prevent damage to the gearbox.
  • Heat Management: Prolonged operation at high loads may cause the motor to overheat. Allow for adequate cooling.
  • Power Supply: Use a regulated 12V DC power source to ensure stable operation.
  • Noise Suppression: Add a capacitor (e.g., 0.1 µF) across the motor terminals to reduce electrical noise.

Example: Connecting to an Arduino UNO

Below is an example of how to control the 12V - 12RPM motor using an Arduino UNO and an L298N motor driver.

Circuit Connections

  • Connect the motor's terminals to the L298N's output pins (OUT1 and OUT2).
  • Connect the L298N's input pins (IN1 and IN2) to Arduino digital pins 8 and 9, respectively.
  • Connect the L298N's enable pin (ENA) to Arduino digital pin 10 for PWM speed control.
  • Provide a 12V power supply to the L298N's motor power input.

Arduino Code

// Define motor control pins
const int IN1 = 8;  // Motor direction pin 1
const int IN2 = 9;  // Motor direction pin 2
const int ENA = 10; // Motor speed control (PWM)

void setup() {
  // Set motor control pins as outputs
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(ENA, OUTPUT);
}

void loop() {
  // Rotate motor clockwise at 50% speed
  digitalWrite(IN1, HIGH);  // Set direction
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 128);    // Set speed (0-255)

  delay(5000); // Run for 5 seconds

  // Rotate motor counterclockwise at 75% speed
  digitalWrite(IN1, LOW);   // Reverse direction
  digitalWrite(IN2, HIGH);
  analogWrite(ENA, 192);    // Set speed (0-255)

  delay(5000); // Run for 5 seconds

  // Stop the motor
  digitalWrite(IN1, LOW);
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 0);      // Set speed to 0

  delay(2000); // Pause for 2 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin

    • Cause: Insufficient power supply or loose connections.
    • Solution: Verify that the power supply provides 12V and sufficient current. Check all connections.
  2. Motor Spins in the Wrong Direction

    • Cause: Incorrect polarity or control signals.
    • Solution: Reverse the motor's terminal connections or adjust the control signals in your code.
  3. Motor Overheats

    • Cause: Excessive load or prolonged operation at high torque.
    • Solution: Reduce the load or allow the motor to cool periodically.
  4. Electrical Noise Interference

    • Cause: Motor generates electrical noise during operation.
    • Solution: Add a capacitor (e.g., 0.1 µF) across the motor terminals to suppress noise.

FAQs

Q: Can I power the motor with a battery?
A: Yes, you can use a 12V battery, but ensure it can supply sufficient current (at least 1.2 A for stall conditions).

Q: Can this motor be used for precise positioning?
A: This motor is not designed for precise positioning. For such applications, consider using a stepper motor or a DC motor with an encoder.

Q: Is the motor waterproof?
A: No, this motor is not waterproof. Avoid exposing it to water or moisture.

Q: Can I increase the speed of the motor?
A: The speed is determined by the gearbox. To increase speed, you would need a motor with a different gear ratio.
