The PH 4502C is a pH sensor module manufactured by DF Robot, with the part ID "DO SENSOR." It is designed to measure the acidity or alkalinity of a solution, providing accurate and reliable pH readings. This sensor is widely used in laboratory experiments, industrial chemical monitoring, aquariums, hydroponics, and environmental testing. Its compact design and ease of integration make it suitable for both hobbyists and professionals.

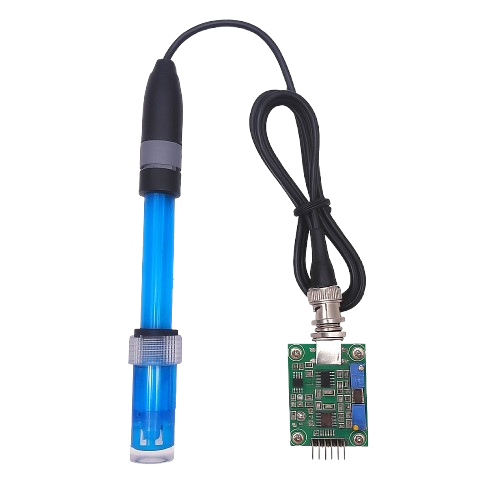

The PH 4502C sensor module consists of a pH probe and a signal conditioning circuit. Below are the key technical details:

• Manufacturer: DF Robot
• Part ID: DO SENSOR
• Measurement Range: 0 to 14 pH
• Accuracy: ±0.1 pH (at 25°C)
• Operating Voltage: 5V DC
• Output Voltage: 0 to 3.0V (analog signal)
• Operating Temperature: 0°C to 60°C
• Response Time: ≤1 minute
• Probe Type: Glass electrode with BNC connector
• Calibration: Two-point calibration (pH 4.0 and pH 7.0 solutions recommended)

The PH 4502C module has a 4-pin interface for connecting to a microcontroller or other devices. The pin configuration is as follows:

1. Connect the Sensor Module:

   • Connect the VCC pin to the 5V output of your microcontroller or power supply.
   • Connect the GND pin to the ground of your circuit.
   • Connect the AO pin to an analog input pin on your microcontroller (e.g., A0 on an Arduino UNO).

2. Attach the pH Probe:

   • Securely connect the pH probe to the BNC connector on the module.
   • Immerse the probe in the solution to be measured, ensuring the glass bulb is fully submerged.

3. Calibrate the Sensor:

   • Use pH 4.0 and pH 7.0 buffer solutions for calibration.
   • Adjust the potentiometer on the module to match the expected voltage output for each buffer solution.

4. Read the Analog Signal:

   • The module outputs an analog voltage corresponding to the pH value. Use an analog-to-digital converter (ADC) on your microcontroller to read this voltage.

• Always rinse the pH probe with distilled water before and after use to prevent contamination.
• Avoid exposing the probe to extreme temperatures or harsh chemicals that could damage the glass electrode.
• Store the probe in a pH storage solution when not in use to maintain accuracy and prolong its lifespan.
• Perform regular calibration to ensure accurate readings, especially if the sensor is used frequently or in different solutions.

Below is an example of how to interface the PH 4502C with an Arduino UNO to read pH values:

// PH 4502C pH Sensor Example Code for Arduino UNO
// Connect AO pin of the sensor module to A0 pin of Arduino UNO

const int pH_pin = A0;  // Analog pin connected to AO of the sensor
float voltage;          // Variable to store the sensor's output voltage
float pH_value;         // Variable to store the calculated pH value

void setup() {
  Serial.begin(9600);  // Initialize serial communication at 9600 baud
  pinMode(pH_pin, INPUT);  // Set the pH sensor pin as input
}

void loop() {
  // Read the analog voltage from the sensor
  int sensorValue = analogRead(pH_pin);

  // Convert the analog value (0-1023) to voltage (0-5V)
  voltage = sensorValue * (5.0 / 1023.0);

  // Convert the voltage to pH value
  // The formula may vary depending on calibration and sensor characteristics
  pH_value = 3.5 * voltage;  // Example conversion factor (adjust as needed)

  // Print the pH value to the Serial Monitor
  Serial.print("Voltage: ");
  Serial.print(voltage);
  Serial.print(" V, pH Value: ");
  Serial.println(pH_value);

  delay(1000);  // Wait for 1 second before the next reading
}

1. Inaccurate Readings:

   • Cause: Improper calibration or dirty probe.
   • Solution: Recalibrate the sensor using fresh buffer solutions. Clean the probe with distilled water.

2. No Output Signal:

   • Cause: Loose connections or damaged probe.
   • Solution: Check all connections and ensure the probe is securely attached. Replace the probe if necessary.

3. Fluctuating Readings:

   • Cause: Electrical noise or unstable power supply.
   • Solution: Use a stable power source and ensure proper grounding. Add capacitors to filter noise if needed.

4. Sensor Not Responding:

   • Cause: Faulty module or incorrect wiring.
   • Solution: Verify the wiring and test the module with a multimeter. Replace the module if it is defective.

• Q: How often should I calibrate the sensor?
  A: It is recommended to calibrate the sensor before each use or at least once a week for frequent use.

• Q: Can the sensor measure pH in high-temperature solutions?
  A: The sensor is designed for temperatures between 0°C and 60°C. Avoid using it in solutions outside this range.

• Q: What is the lifespan of the pH probe?
  A: The probe typically lasts 6 months to 1 year with proper care and maintenance.

• Q: Can I use the sensor with a 3.3V microcontroller?
  A: The module requires a 5V power supply, but the analog output can be read by a 3.3V ADC. Use a level shifter if needed.

By following this documentation, you can effectively integrate and use the PH 4502C pH sensor in your projects.
