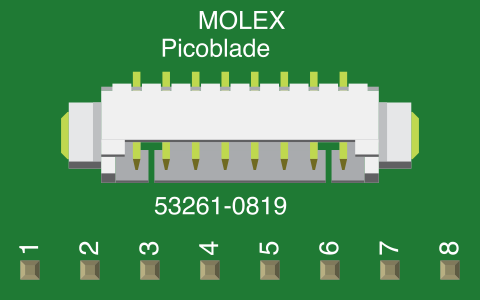

Image of Molex Picoblade Series Header
Cirkit Designer LogoDesign with Molex Picoblade Series Header in Cirkit Designer

Introduction

The Molex Picoblade Series Header (Manufacturer Part ID: 53261-0819) is a compact, low-profile connector designed for high-density applications. It features a reliable locking mechanism, ensuring secure wire-to-board connections. With its small form factor and robust design, this header is ideal for applications requiring space-saving solutions without compromising on performance.

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Peltier-Controlled Thermal Management System with SPST Switch
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
Peltier-Controlled Thermal Management System with SPST Switch
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Consumer electronics (e.g., cameras, gaming devices)
  • Industrial equipment
  • Medical devices
  • Automotive systems
  • Robotics and IoT devices

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer Molex
Series Picoblade
Part Number 53261-0819
Number of Positions 8
Pitch 1.25 mm
Mounting Type Surface Mount (SMT)
Current Rating 1 A per contact
Voltage Rating 125 V AC/DC
Operating Temperature -25°C to +85°C
Contact Material Phosphor Bronze
Contact Plating Tin
Housing Material Nylon (UL 94V-0 rated)

Pin Configuration and Descriptions

The Molex Picoblade Series Header (53261-0819) has 8 pins, arranged in a single row with a 1.25 mm pitch. Below is the pin configuration:

Pin Number Description Notes
1 Signal/Power Line 1 User-defined signal or power
2 Signal/Power Line 2 User-defined signal or power
3 Signal/Power Line 3 User-defined signal or power
4 Signal/Power Line 4 User-defined signal or power
5 Signal/Power Line 5 User-defined signal or power
6 Signal/Power Line 6 User-defined signal or power
7 Signal/Power Line 7 User-defined signal or power
8 Signal/Power Line 8 User-defined signal or power

Note: Pin assignments are user-defined and depend on the specific application. Ensure proper wiring to avoid damage.

Usage Instructions

How to Use the Component in a Circuit

  1. PCB Design: Ensure your PCB layout includes a footprint compatible with the 53261-0819 header. The 1.25 mm pitch must be maintained for proper alignment.
  2. Soldering: Use surface-mount soldering techniques to attach the header to the PCB. Ensure all pins are securely soldered to avoid connectivity issues.
  3. Mating Connector: Use a compatible Molex Picoblade receptacle (e.g., 51021 series) with crimped wires for proper mating.
  4. Wiring: Crimp the wires to the mating connector using the appropriate Molex crimping tool. Follow the pin configuration for signal or power connections.
  5. Locking Mechanism: Ensure the mating connector is fully inserted into the header until the locking mechanism clicks into place.

Important Considerations and Best Practices

  • Current and Voltage Ratings: Do not exceed the specified current (1 A per contact) or voltage (125 V AC/DC) ratings to prevent overheating or damage.
  • Temperature Range: Operate the component within the specified temperature range (-25°C to +85°C) to ensure reliability.
  • Crimping Tools: Use Molex-recommended crimping tools for secure and reliable wire connections.
  • Alignment: Ensure proper alignment of the mating connector to avoid bent pins or poor connections.
  • Testing: After assembly, test the connections for continuity and proper functionality.

Example: Connecting to an Arduino UNO

The Molex Picoblade header can be used to connect sensors or other peripherals to an Arduino UNO. Below is an example of wiring and code for reading a sensor signal:

Wiring

  1. Connect the sensor's output wire to Pin 1 of the Picoblade header.
  2. Connect the sensor's ground wire to Pin 2 of the Picoblade header.
  3. Connect the mating connector to the header on the PCB.
  4. Wire the corresponding output and ground pins to the Arduino UNO's analog input (e.g., A0) and GND, respectively.

Arduino Code

// Example code for reading a sensor signal connected via the Molex Picoblade header

const int sensorPin = A0; // Analog pin connected to the sensor output
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");      // Print the sensor value to the serial monitor
  Serial.println(sensorValue);
  delay(500); // Wait for 500 ms before the next reading
}

Note: Ensure the sensor's output voltage is within the Arduino's input range (0-5 V for most models).

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
Poor connection or no signal Misaligned mating connector Reinsert the connector properly.
Overheating of the header Exceeding current or voltage ratings Check and reduce the load.
Bent or damaged pins Improper handling during assembly Replace the header and handle carefully.
Signal noise or interference Poor grounding or shielding Ensure proper grounding and shielding.
Loose wires in the mating connector Improper crimping of wires Use the recommended crimping tool.

FAQs

  1. Can I use this header for high-power applications?
    No, the header is rated for a maximum of 1 A per contact. For high-power applications, consider using connectors with higher current ratings.

  2. What tools are recommended for crimping?
    Molex recommends using their official crimping tools, such as the 63811-1000, for reliable connections.

  3. Is the header compatible with other Molex series?
    The Picoblade header is specifically designed for the Picoblade series. Ensure compatibility with mating connectors from the same series.

  4. Can I use this header in outdoor environments?
    The header is not waterproof or weatherproof. For outdoor use, additional protection (e.g., enclosures) is required.

By following this documentation, you can effectively integrate the Molex Picoblade Series Header (53261-0819) into your projects, ensuring reliable and efficient connections.
