How to Use KY033-TCTR5000: Examples, Pinouts, and Specs

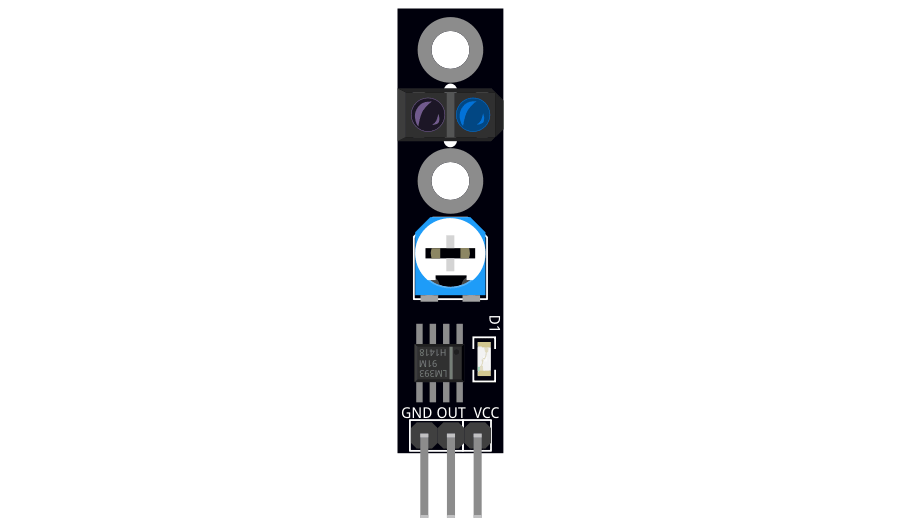

The KY033-TCTR5000 is an infrared obstacle avoidance sensor module designed to detect the presence of nearby objects using infrared light. It integrates an infrared emitter and a phototransistor to sense reflected infrared signals, enabling it to measure distance and detect obstacles. This module is widely used in robotics, automation, and object detection systems due to its reliability and ease of use.

• Obstacle detection in robotics
• Line-following robots
• Automation systems for object detection
• Proximity sensing in industrial applications
• Smart vehicles and collision avoidance systems

The KY033-TCTR5000 module is built for simplicity and efficiency. Below are its key technical details:

The KY033-TCTR5000 module has three pins for interfacing:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect the Output: Attach the OUT pin to a digital input pin of your microcontroller or logic circuit.
3. Adjust Sensitivity: Use the onboard potentiometer to fine-tune the detection range and sensitivity.
4. Place the Module: Position the sensor so that the infrared emitter and phototransistor face the area where obstacles are to be detected.

• Avoid Direct Sunlight: Infrared sensors can be affected by strong ambient light. Use the module in controlled lighting conditions for optimal performance.
• Adjust Sensitivity Carefully: Over-adjusting the potentiometer may reduce the detection range or cause false triggers.
• Mounting Distance: Ensure the module is mounted at an appropriate height and angle for the intended application.
• Power Supply Stability: Use a stable power source to avoid erratic behavior.

Below is an example of how to connect and use the KY033-TCTR5000 with an Arduino UNO:

• Connect the VCC pin of the KY033-TCTR5000 to the 5V pin of the Arduino.
• Connect the GND pin of the KY033-TCTR5000 to the GND pin of the Arduino.
• Connect the OUT pin of the KY033-TCTR5000 to digital pin 2 of the Arduino.

// KY033-TCTR5000 Obstacle Detection Example
// Connect the OUT pin of the sensor to Arduino digital pin 2.

const int sensorPin = 2;  // Pin connected to the KY033 OUT pin
const int ledPin = 13;    // Built-in LED on Arduino for visual feedback

void setup() {
  pinMode(sensorPin, INPUT);  // Set sensor pin as input
  pinMode(ledPin, OUTPUT);    // Set LED pin as output
  Serial.begin(9600);         // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(sensorPin);  // Read the sensor output

  if (sensorValue == LOW) {
    // Obstacle detected
    digitalWrite(ledPin, HIGH);  // Turn on LED
    Serial.println("Obstacle detected!");
  } else {
    // No obstacle
    digitalWrite(ledPin, LOW);   // Turn off LED
    Serial.println("No obstacle.");
  }

  delay(100);  // Small delay for stability
}

1. Sensor Not Detecting Obstacles

   • Cause: Incorrect sensitivity adjustment.
   • Solution: Adjust the potentiometer to increase or decrease the detection range.

2. False Triggers

   • Cause: Strong ambient light or reflective surfaces.
   • Solution: Use the sensor in a controlled lighting environment and avoid highly reflective surfaces.

3. No Output Signal

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the wiring and ensure the power supply voltage is within the specified range.

4. Erratic Behavior

   • Cause: Unstable power supply or electrical noise.
   • Solution: Use a decoupling capacitor (e.g., 0.1µF) across the power pins to stabilize the voltage.

Q1: Can the KY033-TCTR5000 detect transparent objects?
A1: No, the sensor may struggle to detect transparent or highly reflective objects due to the way infrared light interacts with such surfaces.

Q2: What is the maximum detection range of the sensor?
A2: The sensor can detect objects within a range of 1mm to 25mm, depending on the sensitivity adjustment.

Q3: Can I use the KY033-TCTR5000 with a 3.3V microcontroller?
A3: Yes, the module is compatible with both 3.3V and 5V systems.

Q4: How do I know if the sensor is working?
A4: The onboard LED will light up when an obstacle is detected, and the OUT pin will output a LOW signal.
