How to Use IR Sensor: Examples, Pinouts, and Specs

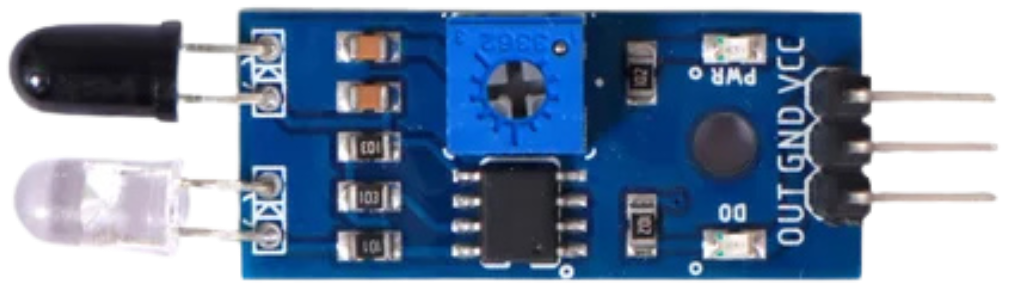

Image of IR SensorDesign with IR Sensor in Cirkit Designer

Introduction

An IR (Infrared) sensor is an electronic device that detects infrared radiation emitted by objects. It is widely used in applications such as proximity sensing, motion detection, and remote control systems. IR sensors are versatile and can be found in devices like automatic doors, obstacle-avoiding robots, and TV remote controls. They are valued for their ability to detect objects without physical contact.

Explore Projects Built with IR Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

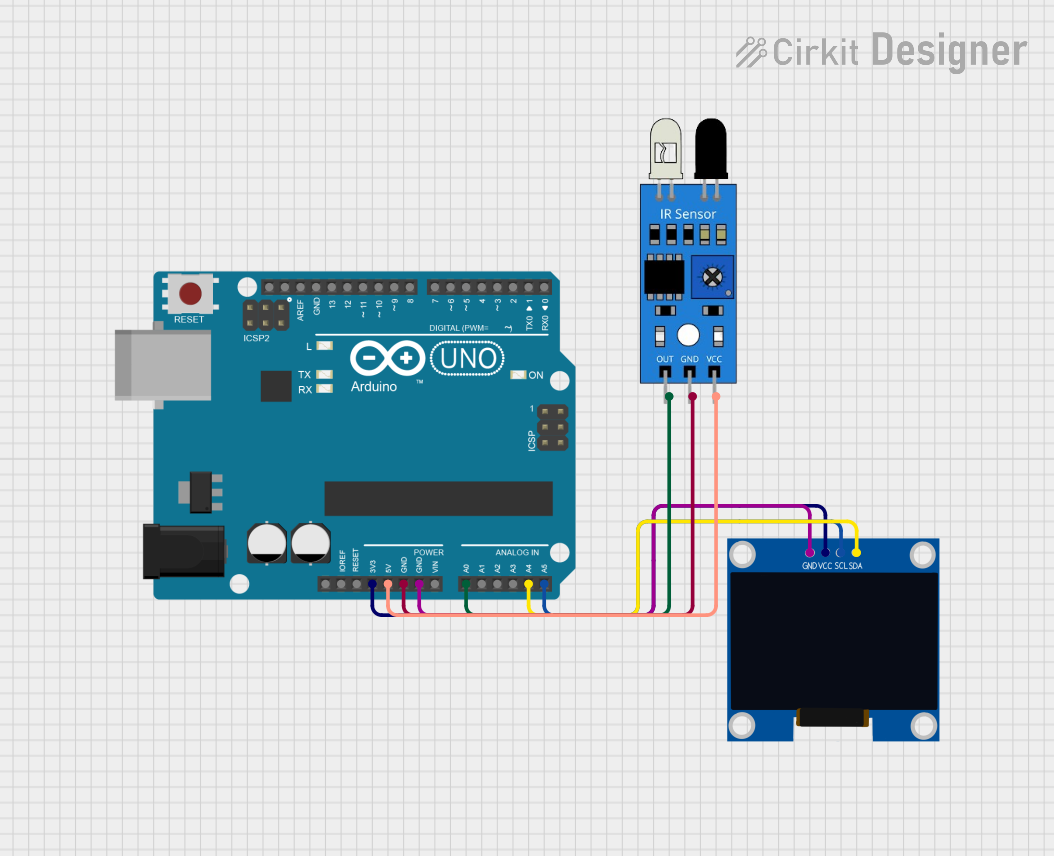

Image of Arduino UNO IR Sensor Motion Detector: A project utilizing IR Sensor in a practical application
Arduino UNO IR Sensor Motion Detector

This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.

Open Project in Cirkit Designer
Image of Arduino UNO Based IR Sensor Object Detection System: A project utilizing IR Sensor in a practical application
Arduino UNO Based IR Sensor Object Detection System

This circuit consists of an Arduino UNO connected to an infrared (IR) sensor. The Arduino provides 5V power and ground to the IR sensor and reads its output signal on digital pin D6. The embedded code on the Arduino is configured to serially output a message indicating the presence or absence of an object based on the IR sensor's detection.

Open Project in Cirkit Designer

Technical Specifications

Below are the key technical details of a typical IR sensor:

Pin Configuration and Descriptions

The IR sensor typically has three pins. Below is the pinout and description:

Pin Number Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground pin
3 OUT Output pin (Digital or Analog signal)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Connect the Power Supply:
    • Connect the VCC pin to a 3.3V or 5V power source.
    • Connect the GND pin to the ground of the circuit.
  2. Connect the Output Pin:
    • For digital IR sensors, connect the OUT pin to a digital input pin of a microcontroller.
    • For analog IR sensors, connect the OUT pin to an analog input pin of a microcontroller.
  3. Position the Sensor:
    • Place the sensor so that it faces the object or area to be detected.
    • Ensure there are no obstructions between the sensor and the target.

Important Considerations and Best Practices

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to use a digital IR sensor with an Arduino UNO to detect an object:

// Define the pin connected to the IR sensor's output
const int irSensorPin = 2; // Digital pin 2
const int ledPin = 13;     // Built-in LED pin

void setup() {
  pinMode(irSensorPin, INPUT); // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);     // Set LED pin as output
  Serial.begin(9600);          // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin); // Read the sensor's output

  if (sensorValue == LOW) {
    // Object detected (LOW signal from sensor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected (HIGH signal from sensor)
    digitalWrite(ledPin, LOW);  // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100); // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detecting Objects:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check the wiring and ensure all connections are secure.
  2. False Detections:

    • Cause: Ambient light interference or reflective surfaces.
    • Solution: Use the sensor in a controlled environment or shield it from ambient light.
  3. Short Detection Range:

    • Cause: Misaligned sensor or incorrect potentiometer adjustment.
    • Solution: Reposition the sensor and adjust the potentiometer to increase the range.
  4. No Output Signal:

    • Cause: Insufficient power supply or damaged sensor.
    • Solution: Verify the power supply voltage and replace the sensor if necessary.

FAQs
