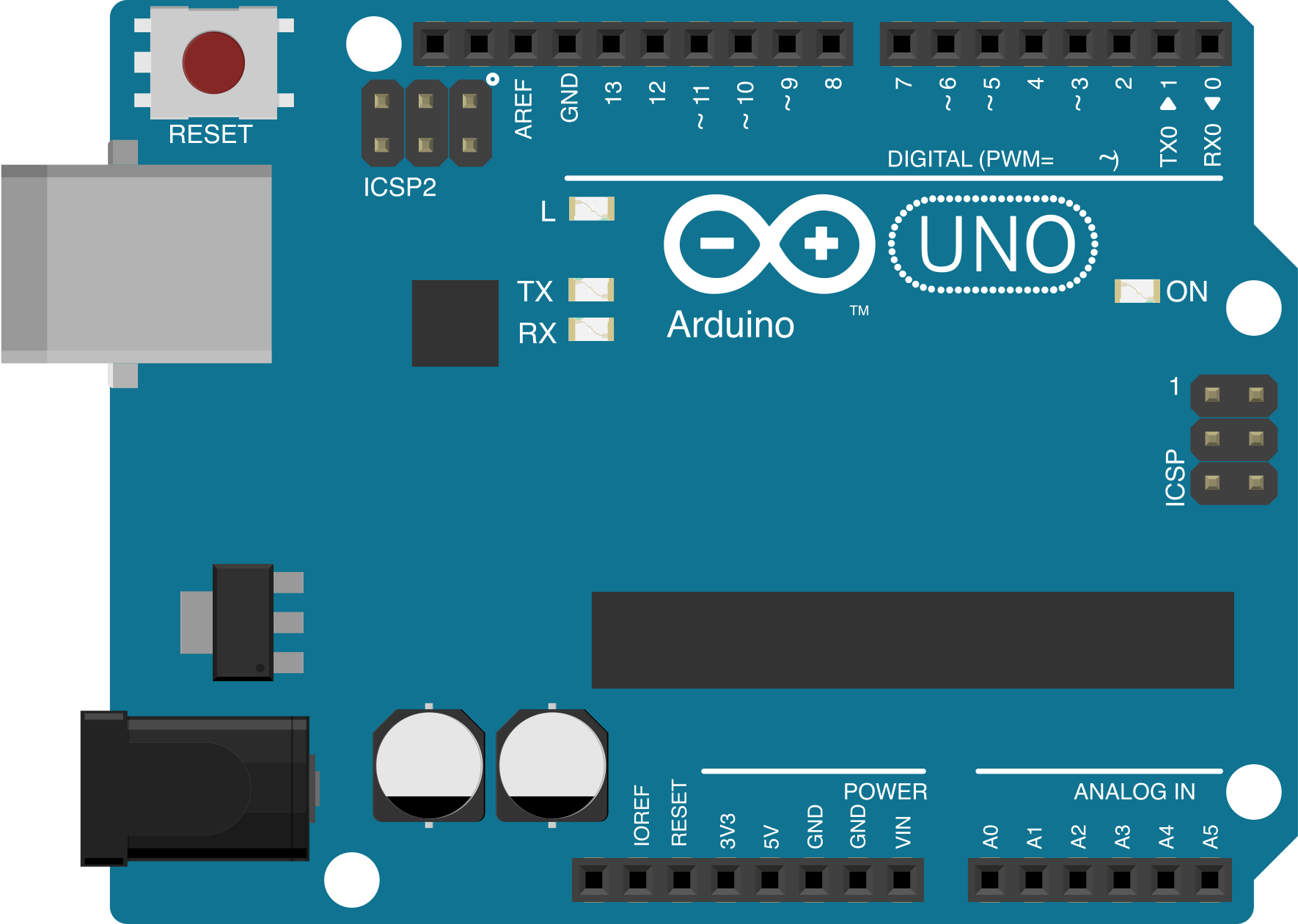

Image of Arduino Uno (Rev3)
Cirkit Designer LogoDesign with Arduino Uno (Rev3) in Cirkit Designer

Introduction

The Arduino Uno (Rev3), manufactured by Arduino, is a microcontroller board based on the ATmega328P microcontroller. It is designed for ease of use, making it an excellent choice for beginners and professionals alike. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection for programming, a power jack, and a reset button. It is widely used for prototyping, educational purposes, and building interactive projects.

Explore Projects Built with Arduino Uno (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based GPS and GSM Tracking System with Ultrasonic Sensing and OLED Display
Image of Radar missile  system  : A project utilizing Arduino Uno (Rev3) in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of components for sensing, communication, and display. It includes an HC-SR04 Ultrasonic Sensor for distance measurement, an Adafruit Ultimate GPS module for location tracking, a SIM800L module for GSM communication, and a 0.96" OLED display for visual output. Additionally, the circuit integrates an ESP32 for potential WiFi/Bluetooth capabilities, a servo motor for actuation, and a buzzer for audio signaling, all powered through the Arduino's voltage pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno Robotic Arm with IR Sensors and LCD Display
Image of parking: A project utilizing Arduino Uno (Rev3) in a practical application
This circuit is a robotic system controlled by an Arduino Uno, featuring three servos for movement, three IR sensors for object detection, and a 16x2 I2C LCD for displaying status messages. The Arduino code handles servo movements based on sensor inputs and controls motor operations, enabling the robot to perform tasks such as picking up objects and moving them to different locations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Uno (Rev3)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Radar missile  system  : A project utilizing Arduino Uno (Rev3) in a practical application
Arduino UNO-Based GPS and GSM Tracking System with Ultrasonic Sensing and OLED Display
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of components for sensing, communication, and display. It includes an HC-SR04 Ultrasonic Sensor for distance measurement, an Adafruit Ultimate GPS module for location tracking, a SIM800L module for GSM communication, and a 0.96" OLED display for visual output. Additionally, the circuit integrates an ESP32 for potential WiFi/Bluetooth capabilities, a servo motor for actuation, and a buzzer for audio signaling, all powered through the Arduino's voltage pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of parking: A project utilizing Arduino Uno (Rev3) in a practical application
Arduino Uno Robotic Arm with IR Sensors and LCD Display
This circuit is a robotic system controlled by an Arduino Uno, featuring three servos for movement, three IR sensors for object detection, and a 16x2 I2C LCD for displaying status messages. The Arduino code handles servo movements based on sensor inputs and controls motor operations, enabling the robot to perform tasks such as picking up objects and moving them to different locations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Educational tools for learning programming and electronics

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

Pin Number Pin Name Description
1-14 Digital Pins General-purpose digital I/O pins. Pins 3, 5, 6, 9, 10, and 11 support PWM.
A0-A5 Analog Pins Analog input pins for reading sensor data (10-bit resolution).
GND Ground Ground connection for the circuit.
5V 5V Output Regulated 5V output for powering external components.
3.3V 3.3V Output Regulated 3.3V output for low-voltage components.
VIN Voltage Input Input voltage to the board when using an external power source.
RESET Reset Pin Resets the microcontroller.
TX/RX Serial Pins TX (pin 1) and RX (pin 0) for serial communication.
ICSP ICSP Header Used for in-circuit serial programming of the microcontroller.

Usage Instructions

How to Use the Arduino Uno (Rev3) in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power source (7-12V) via the DC power jack or VIN pin.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board ("Arduino Uno") and port in the Arduino IDE.
    • Write your code in the IDE and click the "Upload" button to program the board.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, motors, or other digital devices.
    • Use the analog pins to read sensor data (e.g., temperature, light intensity).
    • Ensure proper grounding and voltage levels to avoid damaging the board.

Important Considerations and Best Practices

  • Avoid exceeding the 20 mA current limit per I/O pin to prevent damage.
  • Use external resistors with LEDs to limit current.
  • When using motors or high-power devices, use external power supplies and transistors or relays.
  • Always double-check connections to avoid short circuits.

Example Code for Arduino Uno (Blinking an LED)

// This example code blinks an LED connected to digital pin 13.
// The LED will turn on for 1 second and off for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set digital pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary drivers for the Arduino Uno (available in the Arduino IDE).
  2. Code does not upload to the board:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the reset button on the board before uploading.
  3. Components connected to the board are not working:

    • Check all connections and ensure proper grounding.
    • Verify that the components are receiving the correct voltage and current.
  4. The board overheats:

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Avoid drawing excessive current from the I/O pins.

FAQs

Q: Can I power the Arduino Uno with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or VIN pin. Ensure the voltage is within the 7-12V range.

Q: What is the maximum current the board can supply?
A: The 5V and 3.3V pins can supply a maximum of 500 mA and 50 mA, respectively, when powered via USB.

Q: Can I use the Arduino Uno for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers connected to the digital pins.

Q: Is the Arduino Uno compatible with shields?
A: Yes, the Arduino Uno is compatible with a wide range of shields designed for the Uno form factor.

This concludes the documentation for the Arduino Uno (Rev3). For more information, visit the official Arduino website.
