How to Use SEN0475: Examples, Pinouts, and Specs

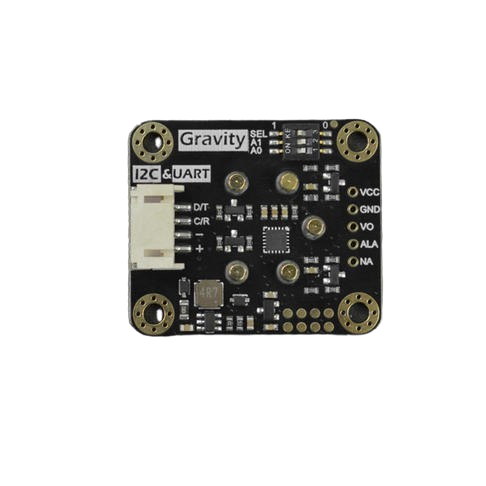

The SEN0475 is a capacitive soil moisture sensor manufactured by DFRobot. It is designed to measure the volumetric water content in soil, providing an analog output that corresponds to the soil's moisture level. Unlike resistive soil moisture sensors, the SEN0475 is corrosion-resistant, ensuring long-term durability and reliability. This makes it an excellent choice for applications in agriculture, gardening, and environmental monitoring.

• Smart irrigation systems
• Agricultural soil monitoring
• Gardening and plant care
• Environmental research and data logging

The SEN0475 is a robust and efficient sensor with the following key specifications:

The SEN0475 has a simple 3-pin interface for easy integration into circuits:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source.
2. Ground: Connect the GND pin to the ground of your circuit.
3. Analog Output: Connect the AOUT pin to an analog input pin on your microcontroller (e.g., Arduino).

• Placement: Insert the sensor into the soil vertically, ensuring the sensing area is fully covered by soil for accurate readings.
• Calibration: The sensor's output voltage varies with soil moisture. You may need to calibrate the sensor for your specific soil type to map the analog output to moisture percentages.
• Power Supply: Ensure a stable power supply to avoid fluctuations in the analog output.
• Avoid Immersion: Do not immerse the sensor in water for extended periods, as it is designed for soil use.

Below is an example code snippet to read the SEN0475's analog output using an Arduino UNO:

// Define the analog pin connected to the SEN0475 sensor
const int sensorPin = A0;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
  float voltage = sensorValue * (5.0 / 1023.0); // Convert the analog value to voltage

  // Map the voltage to a moisture percentage (calibration may be required)
  int moisturePercent = map(sensorValue, 0, 1023, 0, 100);

  // Print the sensor readings to the Serial Monitor
  Serial.print("Analog Value: ");
  Serial.print(sensorValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage);
  Serial.print("V | Moisture: ");
  Serial.print(moisturePercent);
  Serial.println("%");

  delay(1000); // Wait for 1 second before the next reading
}

• The map() function is used to convert the sensor's analog reading to a percentage. Adjust the mapping range based on your calibration.
• Ensure the Arduino is powered with a stable 5V supply for accurate readings.

1. No Output or Incorrect Readings

   • Cause: Loose or incorrect wiring.
   • Solution: Double-check the connections to ensure the VCC, GND, and AOUT pins are properly connected.

2. Fluctuating Readings

   • Cause: Unstable power supply or electrical noise.
   • Solution: Use a decoupling capacitor (e.g., 0.1µF) between VCC and GND to stabilize the power supply.

3. Sensor Not Responding

   • Cause: Sensor damaged or inserted incorrectly.
   • Solution: Inspect the sensor for physical damage and ensure it is inserted into the soil correctly.

4. Inaccurate Moisture Levels

   • Cause: Soil type not calibrated.
   • Solution: Perform a calibration by measuring the sensor's output in dry and saturated soil, then adjust the mapping in your code.

Q: Can the SEN0475 be used outdoors?
A: Yes, the SEN0475 is designed for outdoor use. However, ensure the connections are protected from water and environmental exposure.

Q: How do I calibrate the sensor?
A: Measure the sensor's output voltage in completely dry soil and fully saturated soil. Use these values to adjust the mapping range in your code.

Q: Is the SEN0475 compatible with 3.3V microcontrollers?
A: Yes, the SEN0475 operates at 3.3V to 5.5V, making it compatible with both 3.3V and 5V systems.

Q: Can I use multiple SEN0475 sensors in one project?
A: Yes, you can connect multiple sensors to different analog input pins on your microcontroller. Ensure each sensor has a stable power supply.

By following this documentation, you can effectively integrate the SEN0475 into your projects for reliable soil moisture monitoring.
