How to Use STEP DOWN XY 3606: Examples, Pinouts, and Specs

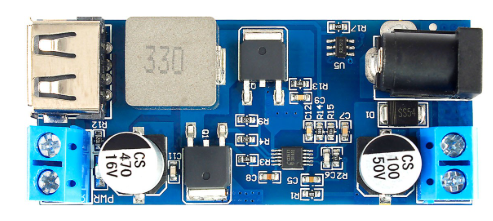

Image of STEP DOWN XY 3606
Cirkit Designer LogoDesign with STEP DOWN XY 3606 in Cirkit Designer

Introduction

The STEP DOWN XY 3606 is a highly efficient DC-DC buck converter designed to step down a higher input voltage to a stable, lower output voltage. This component is widely used in power management applications, offering a compact and reliable solution for powering low-voltage devices from higher-voltage sources. Its adjustable output voltage and high efficiency make it suitable for a variety of electronic projects, including battery-powered devices, microcontroller systems, and LED drivers.

Explore Projects Built with STEP DOWN XY 3606

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
Image of Jayshree CNC: A project utilizing STEP DOWN XY 3606 in a practical application
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing STEP DOWN XY 3606 in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
Image of Circuit Aayush: A project utilizing STEP DOWN XY 3606 in a practical application
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing STEP DOWN XY 3606 in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with STEP DOWN XY 3606

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Jayshree CNC: A project utilizing STEP DOWN XY 3606 in a practical application
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing STEP DOWN XY 3606 in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit Aayush: A project utilizing STEP DOWN XY 3606 in a practical application
Arduino Nano Based GPS Tracker with GSM Communication and Accelerometer
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing STEP DOWN XY 3606 in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi) from higher voltage sources
  • Battery charging and regulation
  • LED lighting systems
  • Portable electronics
  • Robotics and IoT devices

Technical Specifications

The STEP DOWN XY 3606 is designed to handle a wide range of input and output voltages, making it versatile for various applications. Below are its key technical details:

Parameter Specification
Input Voltage Range 4.0V to 40.0V
Output Voltage Range 1.25V to 36.0V (adjustable)
Maximum Output Current 5A (with proper heat dissipation)
Efficiency Up to 96%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 43mm x 21mm x 14mm

Pin Configuration and Descriptions

The STEP DOWN XY 3606 module has the following pin layout:

Pin Name Description
VIN Positive input voltage terminal (connect to the higher voltage source)
GND Ground terminal (common ground for input and output)
VOUT Positive output voltage terminal (connect to the load or device being powered)
ADJ Adjustment terminal (used to set the output voltage via a potentiometer)

Usage Instructions

How to Use the STEP DOWN XY 3606 in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
  2. Set the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage at the VOUT pin to ensure it matches your desired value.
  3. Connect the Load:

    • Connect the positive terminal of your load to the VOUT pin.
    • Connect the negative terminal of your load to the GND pin.
  4. Power On:

    • Turn on the power source and verify the output voltage and current to ensure proper operation.

Important Considerations and Best Practices

  • Heat Dissipation: The module can handle up to 5A of current, but proper heat dissipation (e.g., a heatsink or active cooling) is required for high-current applications.
  • Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for stable operation.
  • Polarity: Double-check the polarity of your connections to avoid damaging the module.
  • Load Requirements: Verify that the load does not exceed the module's maximum current rating.

Example: Using the STEP DOWN XY 3606 with an Arduino UNO

The STEP DOWN XY 3606 can be used to power an Arduino UNO from a 12V power source. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the STEP DOWN XY 3606.
  • Adjust the output voltage to 5V using the potentiometer.
  • Connect the VOUT pin to the Arduino UNO's 5V pin.
  • Connect the GND pin of the STEP DOWN XY 3606 to the Arduino UNO's GND pin.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the STEP DOWN XY 3606 module

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify all connections and ensure the input voltage is within the specified range.
  2. Output Voltage Fluctuates:

    • Cause: Load exceeds the module's current rating or insufficient input voltage.
    • Solution: Reduce the load or increase the input voltage.
  3. Module Overheats:

    • Cause: High current draw without proper heat dissipation.
    • Solution: Add a heatsink or active cooling to the module.
  4. Cannot Adjust Output Voltage:

    • Cause: Faulty potentiometer or incorrect adjustment.
    • Solution: Check the potentiometer and ensure it is not damaged. Adjust slowly while monitoring the output voltage.

FAQs

Q: Can the STEP DOWN XY 3606 be used to charge batteries?
A: Yes, but ensure the output voltage and current are set according to the battery's specifications to avoid overcharging or damaging the battery.

Q: What is the maximum input voltage for this module?
A: The maximum input voltage is 40V. Exceeding this limit may damage the module.

Q: Can I use this module to power a Raspberry Pi?
A: Yes, the module can be adjusted to provide the 5V required by a Raspberry Pi. Ensure the input voltage is sufficient and stable.

Q: Is the module protected against reverse polarity?
A: No, the module does not have built-in reverse polarity protection. Always double-check your connections before powering it on.
